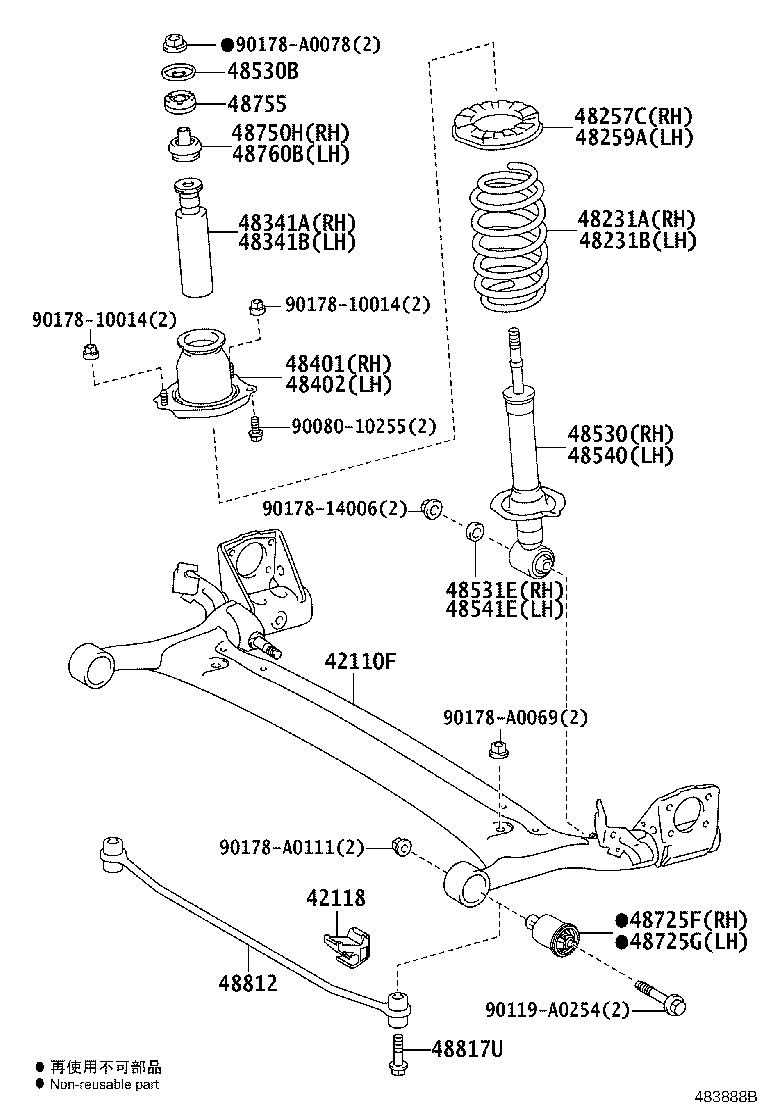

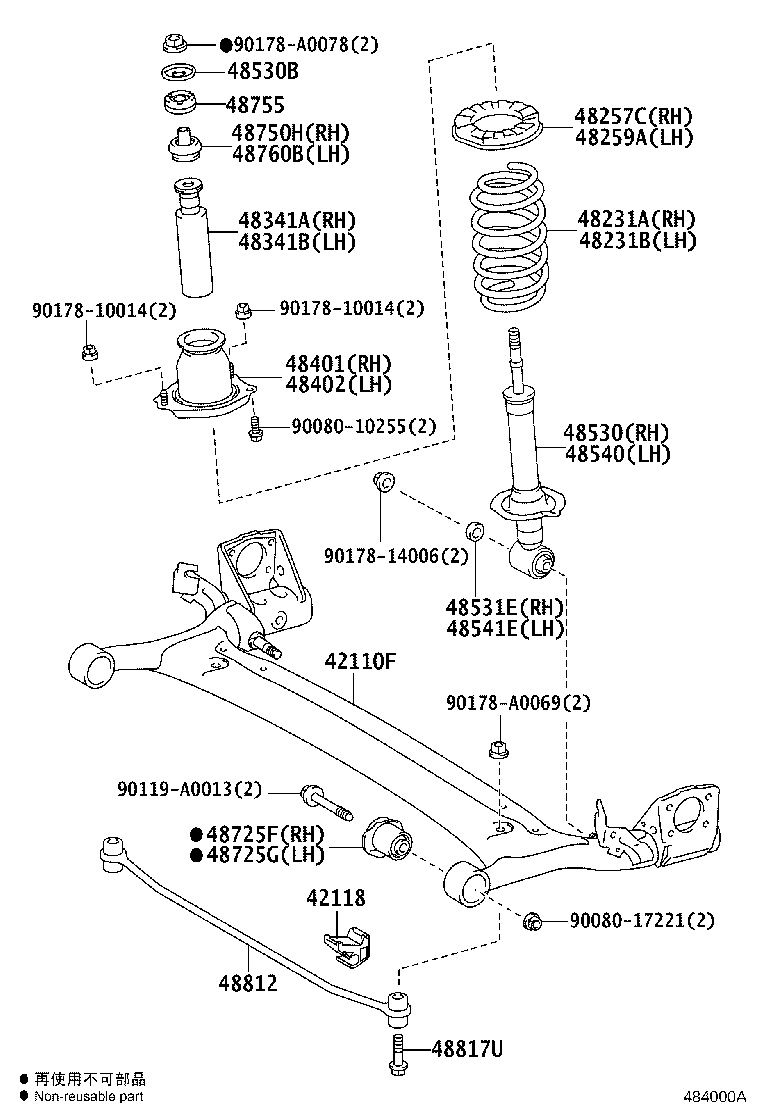

Toyota 42101-02200 BEAM ASSY, REAR AXLE
42101-02200
Part overview:
OEM reference 42101-02200 for BEAM ASSY, REAR AXLE.
This page currently lists 7 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 42110F |
| Manufacturer Part Number | 42101-02200 |
| Part Description | BEAM ASSY, REAR AXLE |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 42101-02200 |
| Catalog | 152370 |
| PNC | 42110F |
| PNC Group | BEAM ASSY, REAR AXLE |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| COROLLA | 2016.08 - |
ZRE172..GEN
|
152370 |
| COROLLA | 2014.04 - 2016.08 |
ZRE172..GEN
|
152370 |
| MATRIX | 2010.12 - 2014.06 |
AZE141,ZRE142
|
152460 |
| COROLLA NAP | 2010.12 - |
AZE141..NAP
ZRE142..NAP..(LE,STD)..USA
MEXICO SPEC
|
155460 |
| COROLLA NAP | 2009.02 - 2010.12 |
ZRE142..NAP..STD
MEXICO SPEC
|
155460 |
| COROLLA NAP | 2008.01 - 2010.12 |
AZE141..NAP
ZRE142..NAP..LE..USA
MEXICO SPEC
|
155460 |
| MATRIX | 2008.01 - 2010.12 |
AZE141,ZRE142
|
152460 |
Related Parts
| Part Number | Reference |
|---|---|
| 42101-02350 | BEAM ASSY, REAR AXLE |
| 42118-02010 | DAMPER, REAR AXLE BEAM |
| 48231-02C90 | SPRING, COIL, REAR RH |
| 48231-02C90 | SPRING, COIL, REAR LH |
| 48231-02D40 | SPRING, COIL, REAR RH |
| 48231-02D40 | SPRING, COIL, REAR LH |
| 48257-02090 | INSULATOR, REAR COIL SPRING, UPPER RH |
| 48257-02090 | INSULATOR, REAR COIL SPRING, UPPER LH |
| 48341-AB010 | BUMPER, REAR SPRING, NO.1 RH |
| 48341-AB010 | BUMPER, REAR SPRING, NO.1 LH |
| 48401-02040 | BRACKET SUB-ASSY, REAR SPRING, FRONT RH |
| 48403-02040 | BRACKET SUB-ASSY, REAR SPRING, FRONT LH |
Toyota part number 42101-02200 corresponds to BEAM ASSY, REAR AXLE. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
