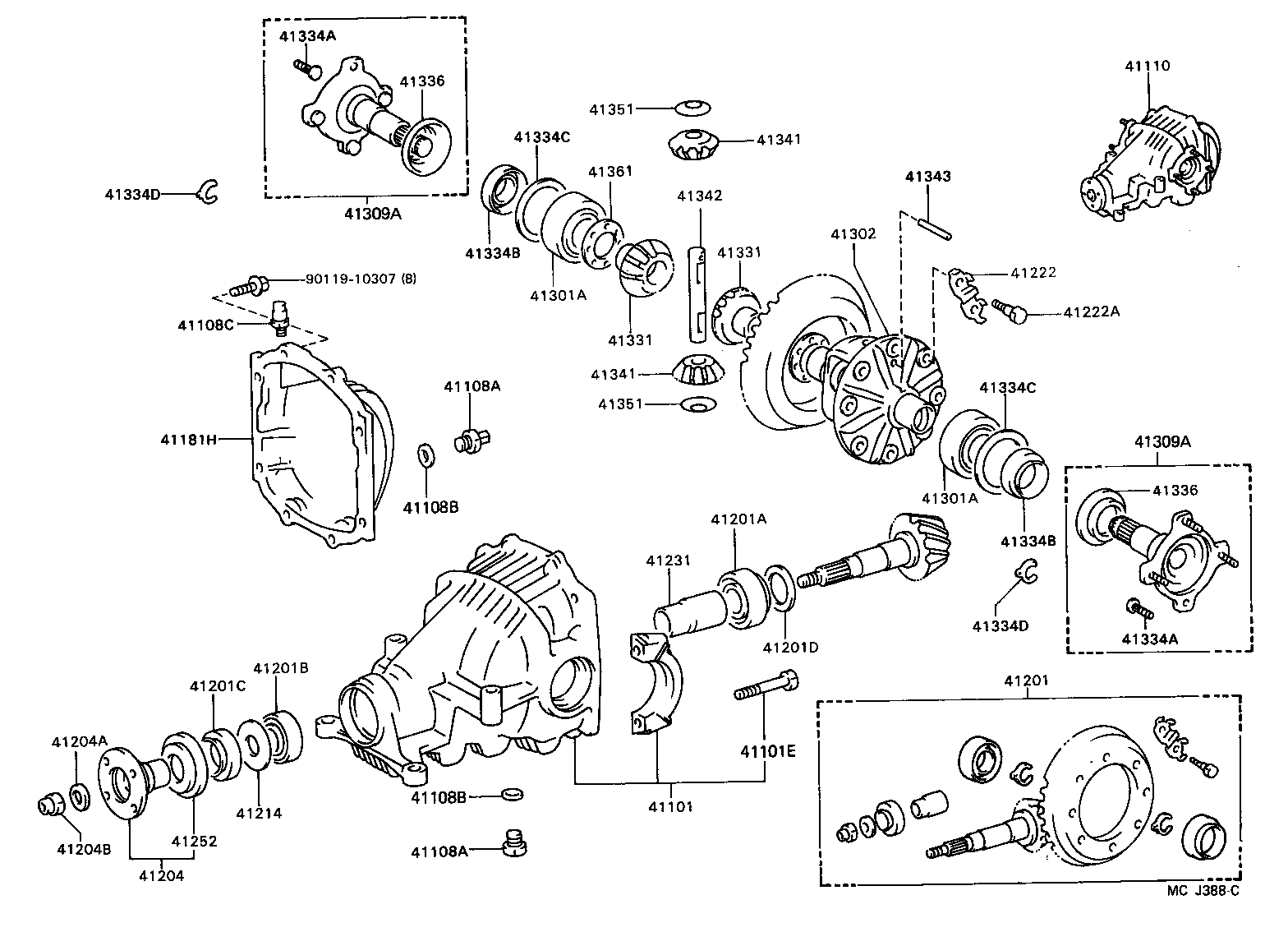

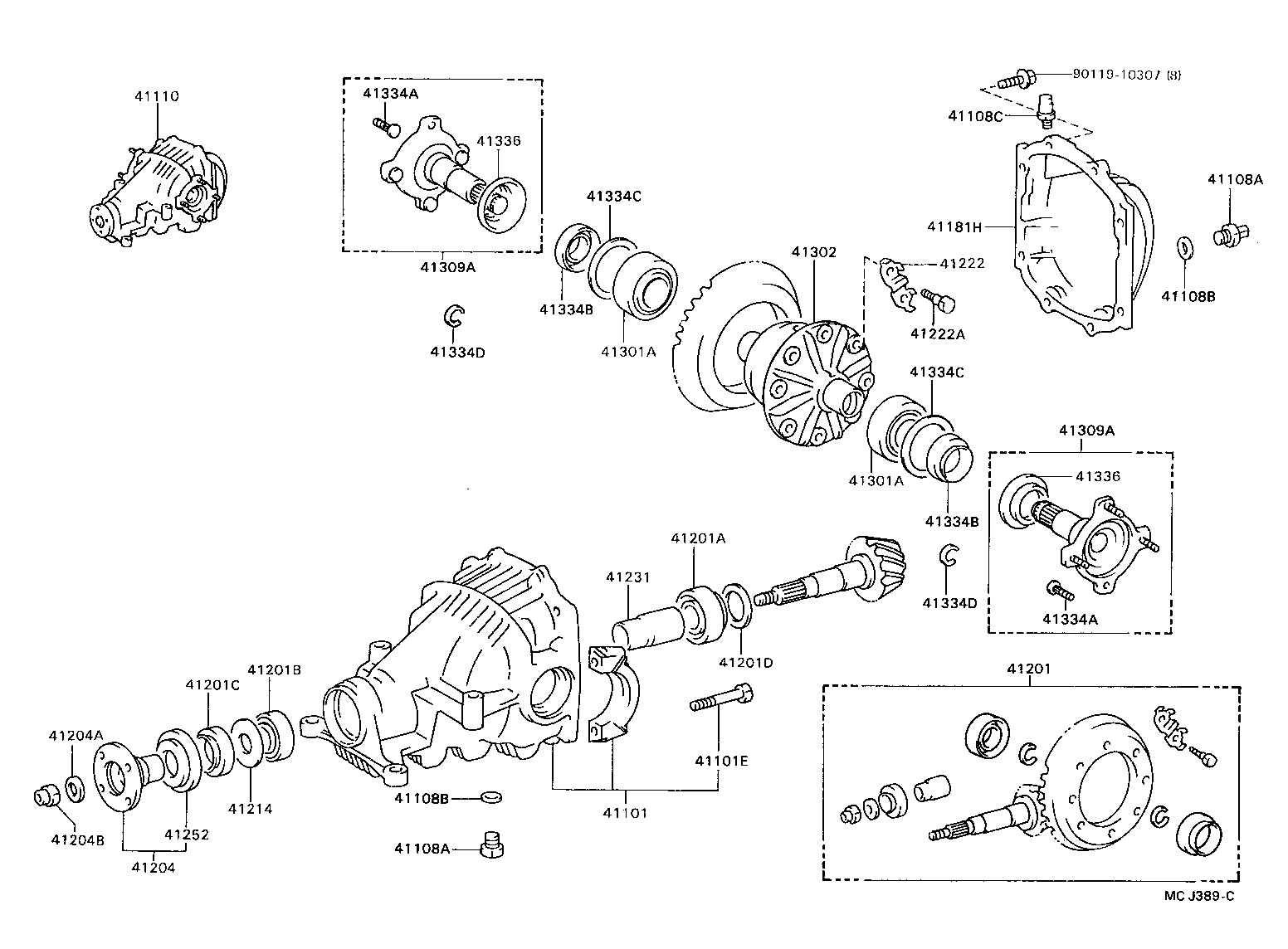

Toyota 41309-20030 SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR
41309-20030
Part overview:
OEM reference 41309-20030 for SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR.
This page currently lists 3 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 41309A |
| Manufacturer Part Number | 41309-20030 |
| Part Description | SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR |
| Condition | New |
| Quantity Per Vehicle | 2 |
| SKU | 41309-20030 |
| Catalog | 252460 |
| PNC | 41309A |
| PNC Group | SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LEXUS RX300 | 1998.01 - 2000.07 |
MCU15
W(LSD)
|
521410 |
| CELICA | 1991.08 - 1993.09 |
ST185..CND
|
252460 |
| CELICA | 1989.10 - 1991.08 |
ST185
W(TORQUE SENSING LSD)
|
252460 |
Related Parts
| Part Number | Reference |
|---|---|
| 12157-10010 | GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) |
| 41101-20030 | CARRIER SUB-ASSY, DIFFERENTIAL, REAR |
| 41108-20010 | COVER, REAR DIFFERENTIAL CARRIER |
| 41110-20330 | CARRIER ASSY, DIFFERENTIAL, REAR |
| 41110-20340 | CARRIER ASSY, DIFFERENTIAL, REAR |
| 41201-29745 | FINAL GEAR KIT, DIFFERENTIAL, REAR |
| 41201-80025 | FINAL GEAR KIT, DIFFERENTIAL, REAR |
| 41201-80026 | FINAL GEAR KIT, DIFFERENTIAL, REAR |
| 41204-20040 | FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR |
| 41214-28010 | SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL |
| 41222-28010 | PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK |
| 41231-22010 | SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING |
Toyota part number 41309-20030 corresponds to SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
