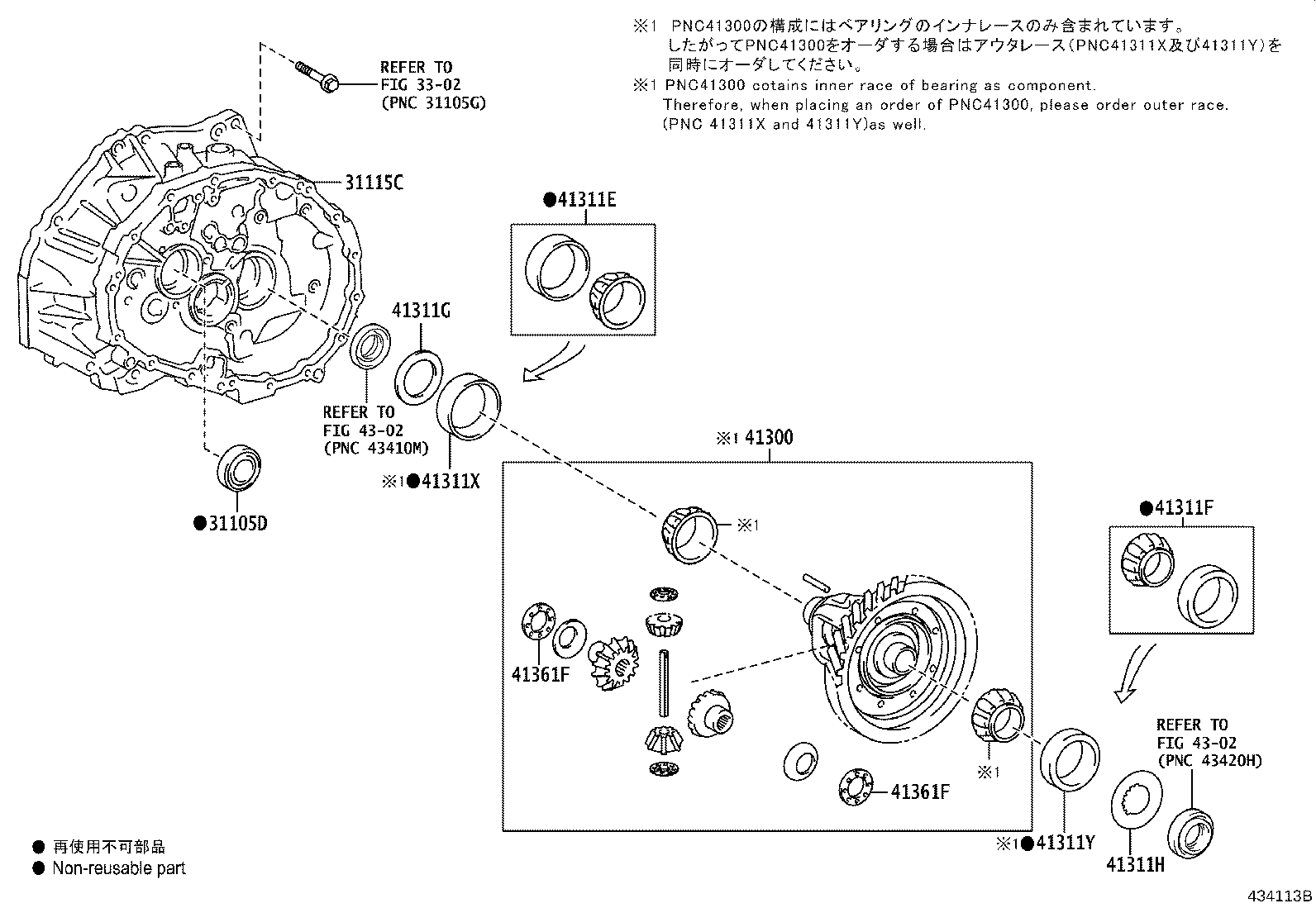

Toyota 41301-12331 CASE SUB-ASSY, FRONT DIFFERENTIAL
41301-12331
Part overview:
OEM reference 41301-12331 for CASE SUB-ASSY, FRONT DIFFERENTIAL.
This page currently lists 4 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 41302F |
| Manufacturer Part Number | 41301-12331 |
| Part Description | CASE SUB-ASSY, FRONT DIFFERENTIAL |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 41301-12331 |
| Catalog | 152480 |
| PNC | 41302F |
| PNC Group | CASE SUB-ASSY, FRONT DIFFERENTIAL |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| COROLLA SED (NAP) | 2020.07 - 2022.11 |
ZRE212..CVT
AISIN AW:REFER 34-01
|
152480 |
| COROLLA SED (JPP) | 2020.04 - 2022.08 |
ZRE212..CVT
AISIN AW:REFER 34-01
|
153460 |
| COROLLA SED (NAP) | 2019.03 - 2020.07 |
ZRE212..CVT
AISIN AW:REFER 34-01
|
152480 |
| COROLLA SED (JPP) | 2019.01 - 2020.04 |
ZRE212..CVT
AISIN AW:REFER 34-01
|
153460 |
Related Parts
| Part Number | Reference |
|---|---|
| 31105-12260 | CASE SUB-ASSY, TRANSAXLE(MTM) |
| 31115-12201 | CASE, FRONT TRANSAXLE(MTM) |
| 33143-20060 | BAFFLE, FRONT DIFFERENTIAL OIL |
| 35105-12091 | HOUSING, TRANSAXLE |
| 35105-12110 | HOUSING, TRANSAXLE |
| 35111-12231 | HOUSING, TRANSAXLE |
| 35111-12241 | HOUSING, TRANSAXLE |
| 35111-12300 | HOUSING, TRANSAXLE |
| 35111-12310 | HOUSING, TRANSAXLE |
| 35705-12050 | GEAR, REDUCTION DRIVEN |
| 35705-12060 | GEAR, REDUCTION DRIVEN |
| 35705-12070 | GEAR, REDUCTION DRIVEN |
Toyota part number 41301-12331 corresponds to CASE SUB-ASSY, FRONT DIFFERENTIAL. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
