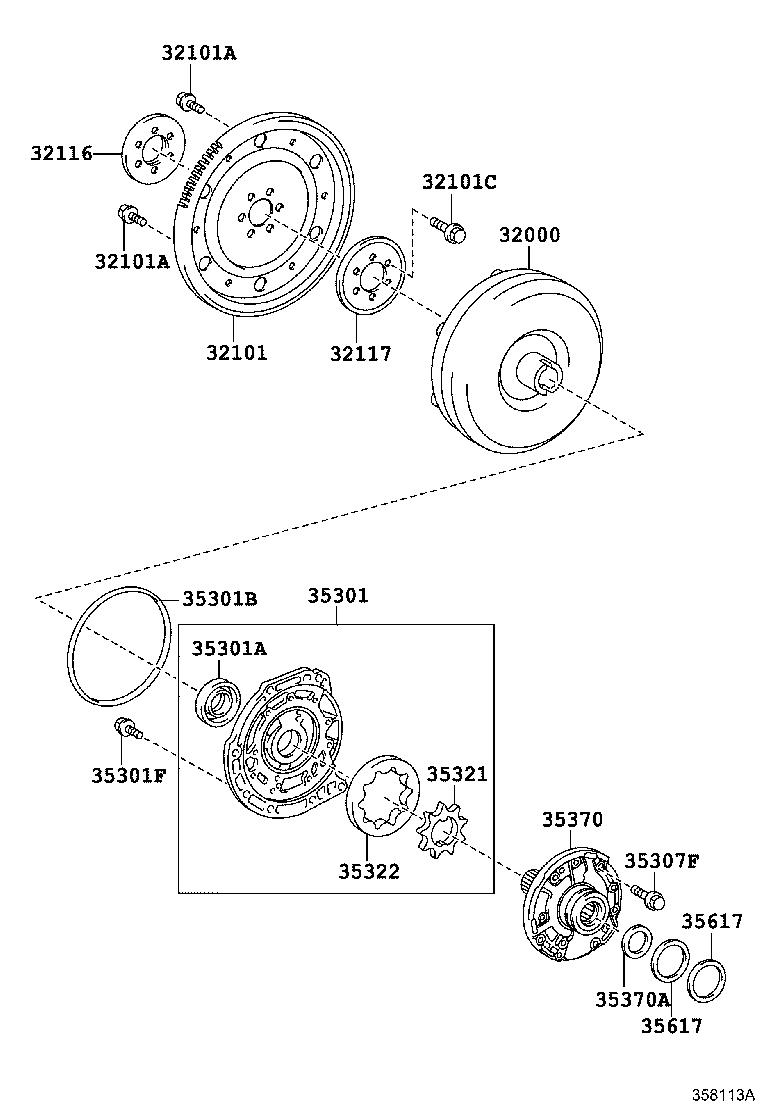

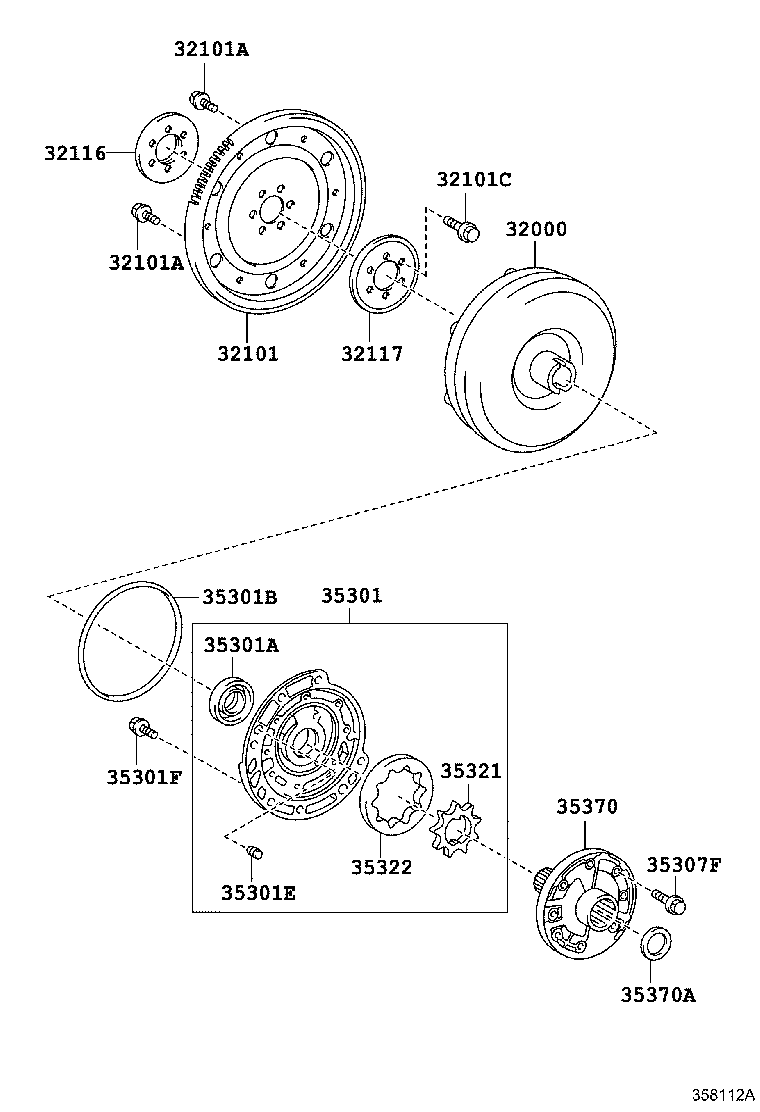

Toyota 35697-52010 RING, O (FOR FRONT OIL PUMP BODY)
35697-52010
Part overview:
OEM reference 35697-52010 for RING, O (FOR FRONT OIL PUMP BODY).
This page currently lists 20 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 35301B |
| Manufacturer Part Number | 35697-52010 |
| Part Description | RING, O (FOR FRONT OIL PUMP BODY) |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 35697-52010 |
| Catalog | 112430 |
| PNC | 35301B |
| PNC Group | RING, O (FOR FRONT OIL PUMP BODY) |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| YARIS (FRP) | 2017.03 - 2019.07 |
NCP131..5D..4FC;NCP131..3D..4FC..R
|
116430 |
| YARIS (FRP) | 2017.03 - 2018.11 |
NCP131..3D..4FC..S
|
116430 |
| YARIS (FRP) | 2014.07 - 2017.03 |
NCP131..4FC
|
116430 |
| YARIS | 2014.03 - 2016.09 |
NCP150..4FC..C
|
113320 |
| YARIS | 2014.03 - 2016.06 |
NCP150..4FC..(GCC,GEN,PH)
|
113320 |
| YARIS | 2014.03 - 2016.04 |
NCP150..TAIW
|
113320 |
| YARIS/VIOS/LIMO | 2014.01 - 2016.09 |
NCP150..4FC..C
|
149330 |
| YARIS/VIOS/LIMO | 2014.01 - 2016.08 |
NCP150..4FC..(MA,VN)
|
149330 |
| COROLLA | 2014.01 - 2016.08 |
ZRE172..4FC
|
152470 |
| YARIS/VIOS/LIMO | 2014.01 - 2016.06 |
NCP150..4FC..PH
|
149330 |
| YARIS/VIOS/LIMO | 2014.01 - 2016.04 |
NCP150..TAIW
|
149330 |
| YARIS/VIOS/LIMO | 2014.01 - 2016.03 |
NCP150..4FC..(GCC,GEN,TH)..B
|
149330 |
| YARIS/VIOS/LIMO | 2014.01 - 2015.06 |
NCP150..4FC..IDN..B
|
149330 |
| COROLLA | 2014.01 - 2014.08 |
ZRE172..4FC
|
152370 |
| SCION XD | 2014.01 - 2014.07 |
ZSP110..4FC
|
117420 |
| YARIS (FRP) | 2014.01 - 2014.07 |
NCP131..4FC
|
116430 |
| YARIS | 2014.01 - |
NCP93..ATM
|
141470 |
| COROLLA (S.AMERICA) | 2014.01 - |
ZZE142..ATM
|
157360 |
| MATRIX | 2014.01 - |
ZRE142..4FC
|
152460 |
| YARIS (JPP) | 2014.01 - |
NCP131..4FC
|
112430 |
Related Parts
| Part Number | Reference |
|---|---|
| 32000-52041 | CONVERTER ASSY, TORQUE |
| 32101-52021 | GEAR SUB-ASSY, DRIVE PLATE & RING |
| 32116-52030 | SPACER, DRIVE PLATE, FRONT |
| 32117-52030 | SPACER, DRIVE PLATE, REAR |
| 35035-52040 | BODY SUB-ASSY, FRONT OIL PUMP |
| 35321-52060 | GEAR, FRONT OIL PUMP DRIVE |
| 35321-52070 | GEAR, FRONT OIL PUMP DRIVE |
| 35321-52080 | GEAR, FRONT OIL PUMP DRIVE |
| 35321-52090 | GEAR, FRONT OIL PUMP DRIVE |
| 35321-52100 | GEAR, FRONT OIL PUMP DRIVE |
| 35322-52060 | GEAR, FRONT OIL PUMP DRIVEN |
| 35322-52070 | GEAR, FRONT OIL PUMP DRIVEN |
Toyota part number 35697-52010 corresponds to RING, O (FOR FRONT OIL PUMP BODY). Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
