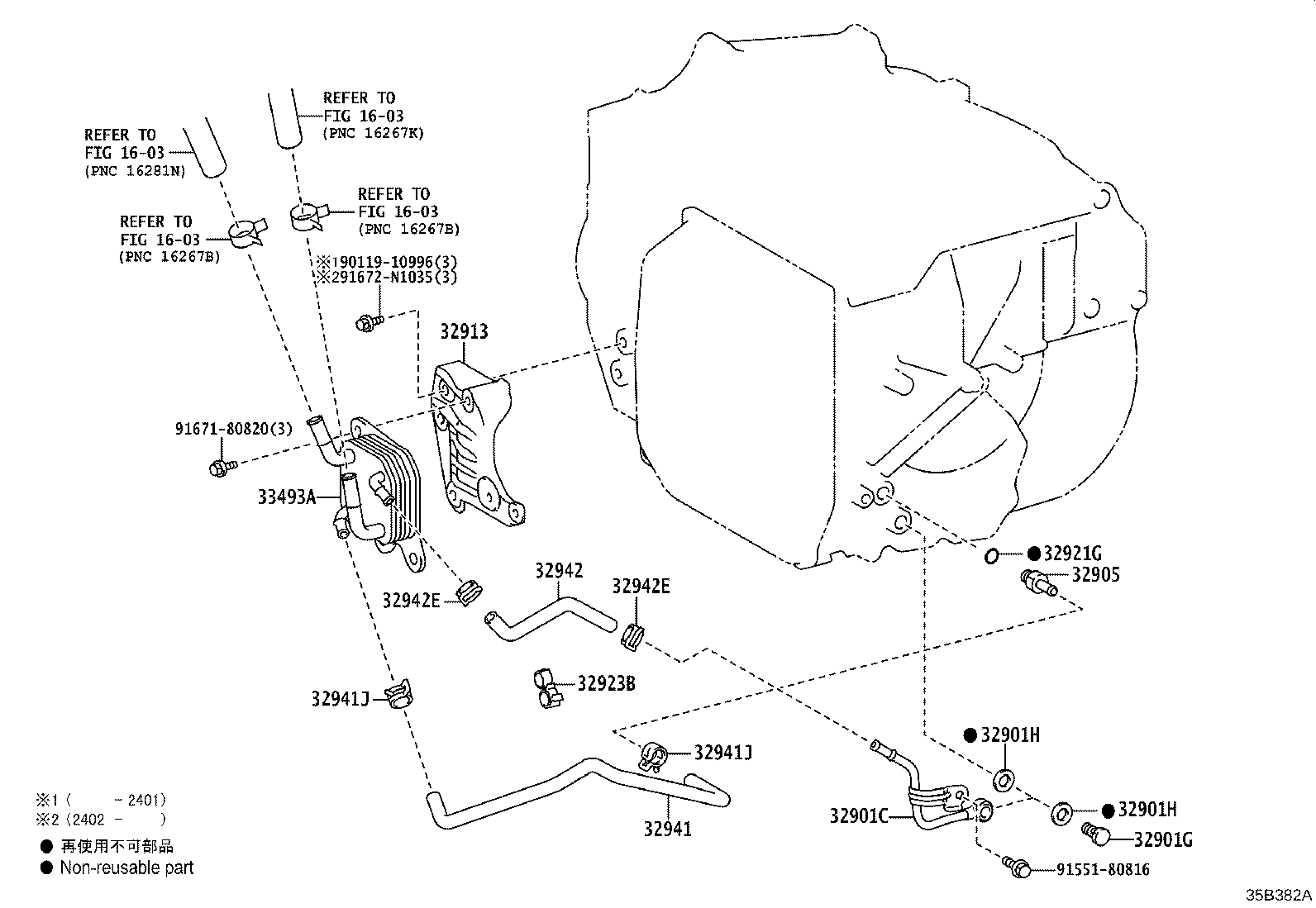

Toyota 33493-78030 COOLER, TRANSMISSION OIL
33493-78030
Part overview:
OEM reference 33493-78030 for COOLER, TRANSMISSION OIL.
This page currently lists 3 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 33493A |
| Manufacturer Part Number | 33493-78030 |
| Part Description | COOLER, TRANSMISSION OIL |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 33493-78030 |
| Catalog | 521460 |
| PNC | 33493A |
| PNC Group | COOLER, TRANSMISSION OIL |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LEXUS NX SERIES(JPP) | 2024.04 - |
TAZA25
|
527420 |
| LEXUS RX SERIES(JPP) | 2022.11 - |
TALA10
|
521460 |
| LEXUS NX SERIES(JPP) | 2021.11 - 2024.03 |
TAZA25
|
527420 |
Related Parts
| Part Number | Reference |
|---|---|
| 32901-48020 | UNION SUB-ASSY, OIL COOLER |
| 32913-78061 | BRACKET, OIL COOLER |
| 32923-48100 | CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 |
| 32941-78020 | HOSE, OIL COOLER INLET, NO.1 |
| 32942-78020 | HOSE, OIL COOLER OUTLET, NO.1 |
| 90301-11031 | RING, O(FOR OIL COOLER TUBE UNION) |
| 90401-14003 | BOLT, UNION(FOR OIL COOLER) |
| 90404-14030 | TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1 |
| 90430-14016 | GASKET(FOR OIL COOLER UNION) |
| 90466-16004 | CLIP, NO.1(FOR OIL COOLER HOSE) |
| 90466-16004 | CLIP, NO.2(FOR OIL COOLER HOSE) |
Toyota part number 33493-78030 corresponds to COOLER, TRANSMISSION OIL. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
