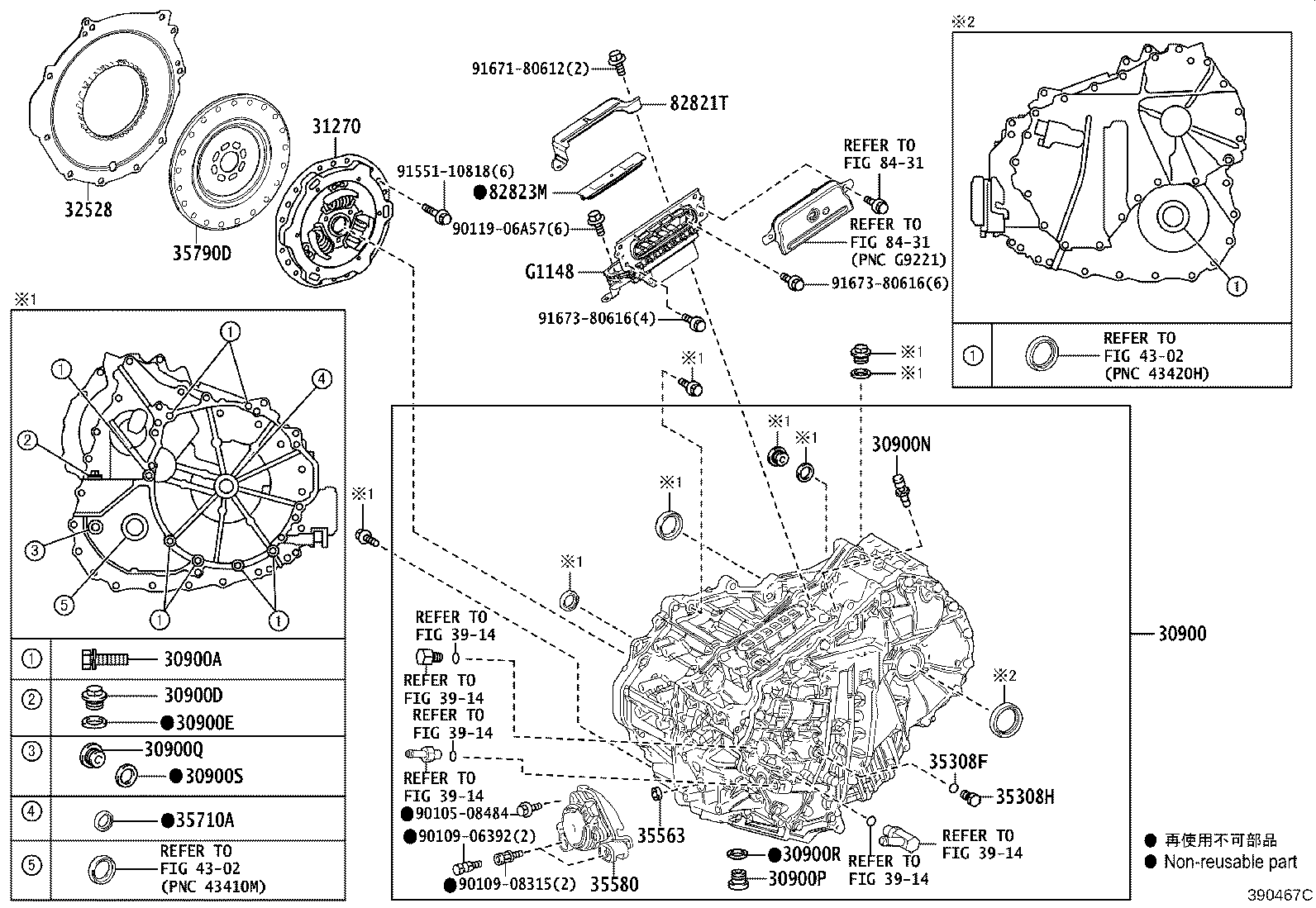

Toyota 30900-47120 TRANSAXLE ASSY, HYBRID VEHICLE
30900-47120
Part overview:
OEM reference 30900-47120 for TRANSAXLE ASSY, HYBRID VEHICLE.
This page currently lists 2 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 30900 |
| Manufacturer Part Number | 30900-47120 |
| Part Description | TRANSAXLE ASSY, HYBRID VEHICLE |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 30900-47120 |
| Catalog | 224430 |
| PNC | 30900 |
| PNC Group | TRANSAXLE ASSY, HYBRID VEHICLE |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| PRIUS PRIME(PHV) | 2019.05 - |
ZVW52
|
224430 |
| PRIUS PRIME(PHV) | 2016.09 - 2019.04 |
ZVW52
|
224430 |
Related Parts
| Part Number | Reference |
|---|---|
| 31270-47070 | DAMPER ASSY, TRANSMISSION INPUT |
| 32528-47010 | PLATE, 1 WAY CLUTCH HOLDING |
| 32528-47011 | PLATE, 1 WAY CLUTCH HOLDING |
| 35563-47010 | SEAL, SHIFT CONTROL ACTUATOR |
| 35580-47040 | ACTUATOR ASSY, SHIFT CONTROL |
| 35790-47020 | CLUTCH ASSY, 1 WAY |
| 82821-47240 | COVER, CONNECTOR |
| 82823-47040 | CAP, TERMINAL |
| 90301-06196 | RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) |
| 90311-25025 | SEAL, TYPE T OIL(FOR INPUT SHAFT) |
| 90341-08001 | PLUG (FOR TRANSMISSION OIL PUMP COVER) |
| 90341-18016 | PLUG, DRAIN(HV) |
Toyota part number 30900-47120 corresponds to TRANSAXLE ASSY, HYBRID VEHICLE. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
