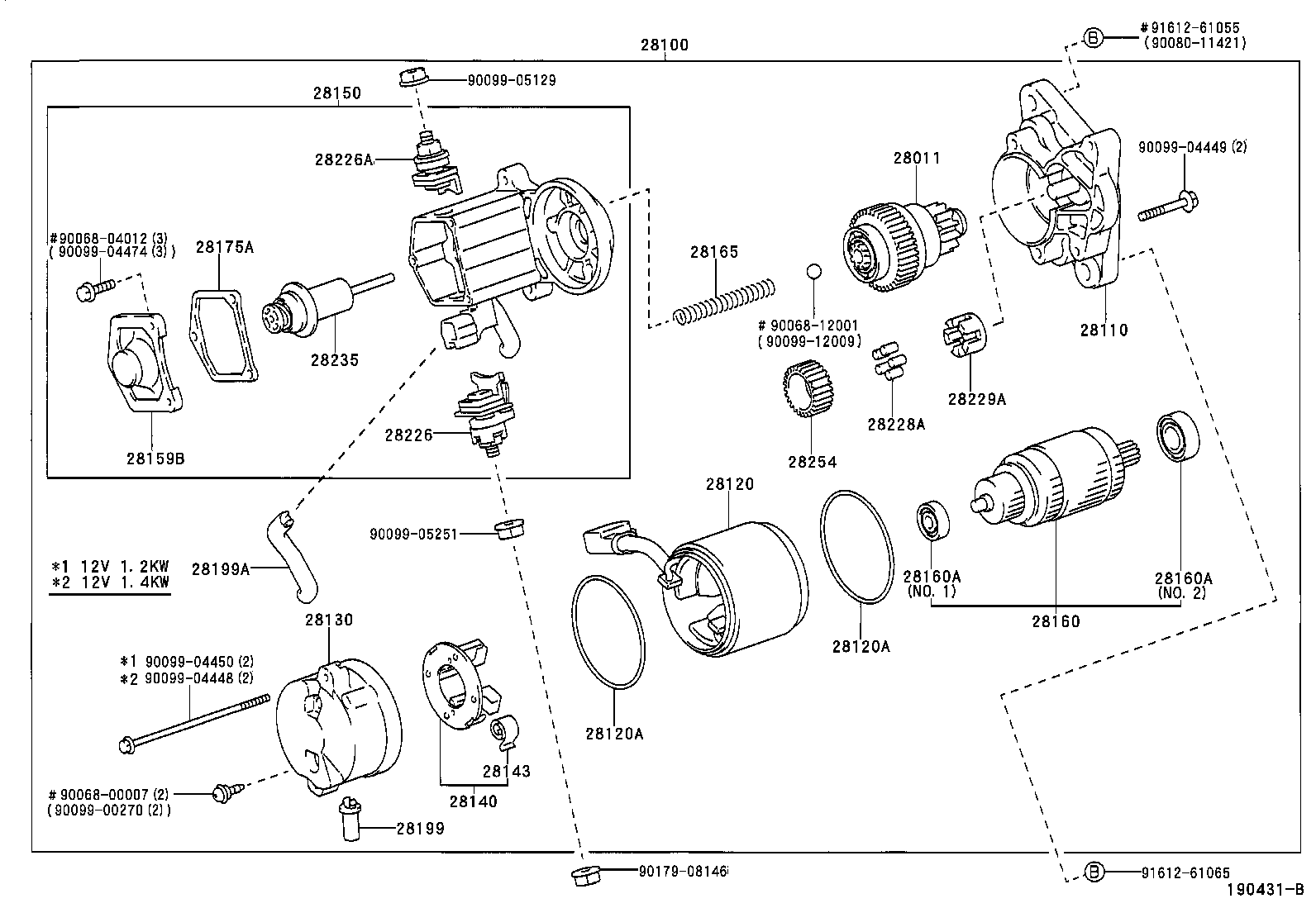

🔍 Click image to enlarge
Toyota 28226-64200 STARTER KIT, BATTERY TERMINAL
28226-64200
Part overview:
OEM reference 28226-64200 for STARTER KIT, BATTERY TERMINAL.
This page currently lists 17 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 28226 |
| Manufacturer Part Number | 28226-64200 |
| Part Description | STARTER KIT, BATTERY TERMINAL |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 28226-64200 |
| Catalog | 155440 |
| PNC | 28226 |
| PNC Group | STARTER KIT, BATTERY TERMINAL |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| MR2 | 1999.12 - 2002.08 |
1ZZFE..ZZW30
|
211430 |
| CELICA | 1999.08 - 2002.08 |
1ZZFE,2ZZGE..ZZT23#
|
252480 |
| COROLLA NAP/SED | 1999.05 - 2000.05 |
1ZZFE..ZZE110..CND
1ZZFE..ZZE110..USA
COLD SPEC
|
155440 |
| TUNDRA | 1999.02 - 2002.08 |
5VZFE..VCK30,40..5F;5VZFE..VCK30,40..4HC..USA
12V 1.2KW,1.4KW
|
841420 |
| COROLLA NAP/SED | 1997.08 - 1999.05 |
1ZZFE..ZZE110
|
155440 |
| 4RUNNER | 1995.11 - |
3RZFE,5VZFE..RZN18#,VZN18#
12V 1.4KW
|
671460 |
| TACOMA | 1995.09 - 2000.09 |
2RZFE,3RZFE..RZN140,150,19#
|
675460 |
| PREVIA | 1995.08 - 1997.07 |
2TZ#..TCR10,20..USA
|
652440 |
| TACOMA | 1995.01 - 2000.09 |
3RZFE..RZN161,171
|
674460 |
| TACOMA | 1995.01 - 2000.09 |
5VZFE..VZN150,195
|
675460 |
| TACOMA | 1995.01 - 1995.09 |
2RZFE..RZN140,150
COLD SPEC
|
675460 |
| PREVIA | 1994.08 - 1995.08 |
2TZ#..TCR20..USA
|
652440 |
| LEXUS SC300/400 | 1994.01 - |
2JZGE..JZZ31
|
321440 |
| T100 | 1993.10 - |
3RZFE..RCK10;5VZFE..VCK11..MTM..USA
|
841410 |
| PREVIA | 1993.08 - 1994.08 |
2TZ#..TCR10,20..USA
|
652440 |
| SUPRA | 1993.05 - 1998.08 |
2JZ#..JZA80
|
291430 |
| LEXUS GS300 | 1993.01 - 1997.08 |
2JZGE..JZS147
|
332480 |
Related Parts
| Part Number | Reference |
|---|---|
| 28011-01020 | CLUTCH SUB-ASSY, STARTER |
| 28100-0D010 | STARTER ASSY |
| 28100-0D020 | STARTER ASSY |
| 28110-0D010 | HOUSING ASSY, STARTER DRIVE |
| 28120-01030 | YOKE ASSY, STARTER |
| 28120-0W030 | YOKE ASSY, STARTER |
| 28130-0C010 | FRAME ASSY, STARTER COMMUTATOR END |
| 28130-0W060 | FRAME ASSY, STARTER COMMUTATOR END |
| 28140-01020 | HOLDER ASSY, STARTER BRUSH |
| 28140-0D010 | HOLDER ASSY, STARTER BRUSH |
| 28143-76060 | SPRING, STARTER BRUSH |
| 28150-0D010 | SWITCH ASSY, MAGNET STARTER |
Toyota part number 28226-64200 corresponds to STARTER KIT, BATTERY TERMINAL. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
