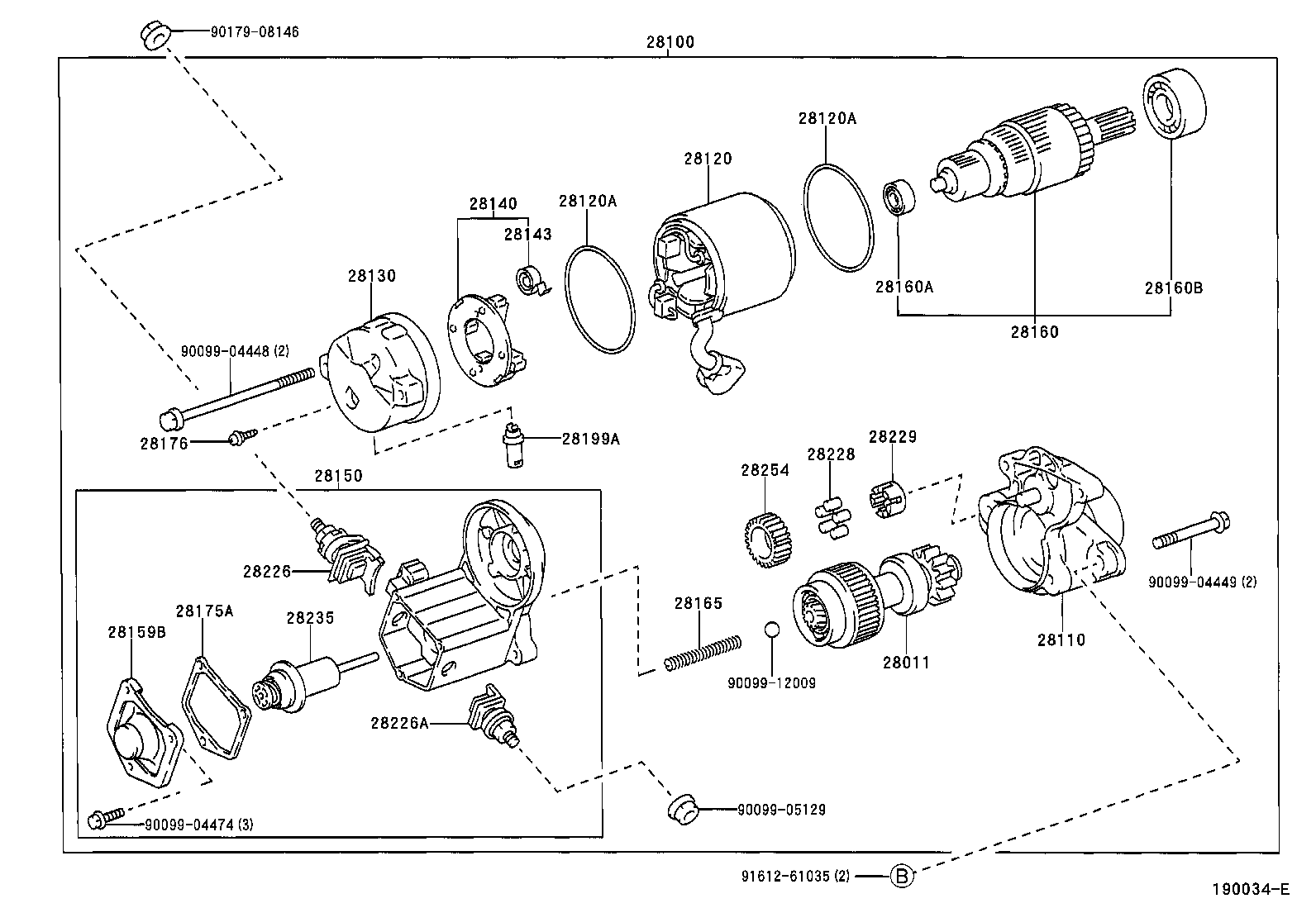

Toyota 28140-03010 HOLDER ASSY, STARTER BRUSH
28140-03010
Part overview:
OEM reference 28140-03010 for HOLDER ASSY, STARTER BRUSH.
This page currently lists 13 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 28140 |
| Manufacturer Part Number | 28140-03010 |
| Part Description | HOLDER ASSY, STARTER BRUSH |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 28140-03010 |
| Catalog | 281460 |
| PNC | 28140 |
| PNC Group | HOLDER ASSY, STARTER BRUSH |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| SOLARA | 2002.07 - 2002.12 |
1MZFE..MCV20
|
286410 |
| AVALON | 2002.06 - |
1MZFE..MCX20
|
361420 |
| HIGHLANDER | 2000.11 - 2003.08 |
2AZFE,1MZFE..ACU2#,MCU2#
(L)
|
522410 |
| AVALON | 1999.08 - 2002.06 |
1MZFE..MCX20
|
361420 |
| CAMRY (JPP) | 1999.08 - |
1MZFE,5SF#..MCV20,SXV2#..JPP
(L)
|
281460 |
| SOLARA | 1998.06 - 2002.07 |
1MZFE,5SFE..MCV20,SXV20
|
286410 |
| LEXUS RX300 | 1998.01 - |
1MZFE..MCU1#
DENSO USA
|
521410 |
| SIENNA | 1997.08 - |
1MZFE..MCL10
|
622410 |
| CAMRY (JPP) | 1996.08 - 1999.08 |
1MZFE,5SFE..MCV20,SXV20..JPP
(L)
|
281460 |
| LEXUS ES300 | 1996.08 - |
1MZFE..MCV20
(L)
|
284460 |
| CAMRY (NAP) | 1996.07 - |
1MZFE,5SFE..MCV20,SXV20..NAP
12V 1.4KW
|
283460 |
| AVALON | 1994.09 - |
1MZFE..MCX10
|
361410 |
| CAMRY (NAP) | 1994.08 - 1996.07 |
1MZFE,5SFE..MCV10,SXV10..NAP
|
283450 |
Related Parts
| Part Number | Reference |
|---|---|
| 28011-74070 | CLUTCH SUB-ASSY, STARTER |
| 28100-03090 | STARTER ASSY |
| 28100-03100 | STARTER ASSY |
| 28100-74240 | STARTER ASSY |
| 28100-74260 | STARTER ASSY |
| 28110-03010 | HOUSING ASSY, STARTER DRIVE |
| 28110-03100 | HOUSING ASSY, STARTER DRIVE |
| 28110-74100 | HOUSING ASSY, STARTER DRIVE |
| 28110-74270 | HOUSING ASSY, STARTER DRIVE |
| 28120-01030 | YOKE ASSY, STARTER |
| 28120-66040 | YOKE ASSY, STARTER |
| 28130-03010 | FRAME ASSY, STARTER COMMUTATOR END |
Toyota part number 28140-03010 corresponds to HOLDER ASSY, STARTER BRUSH. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
