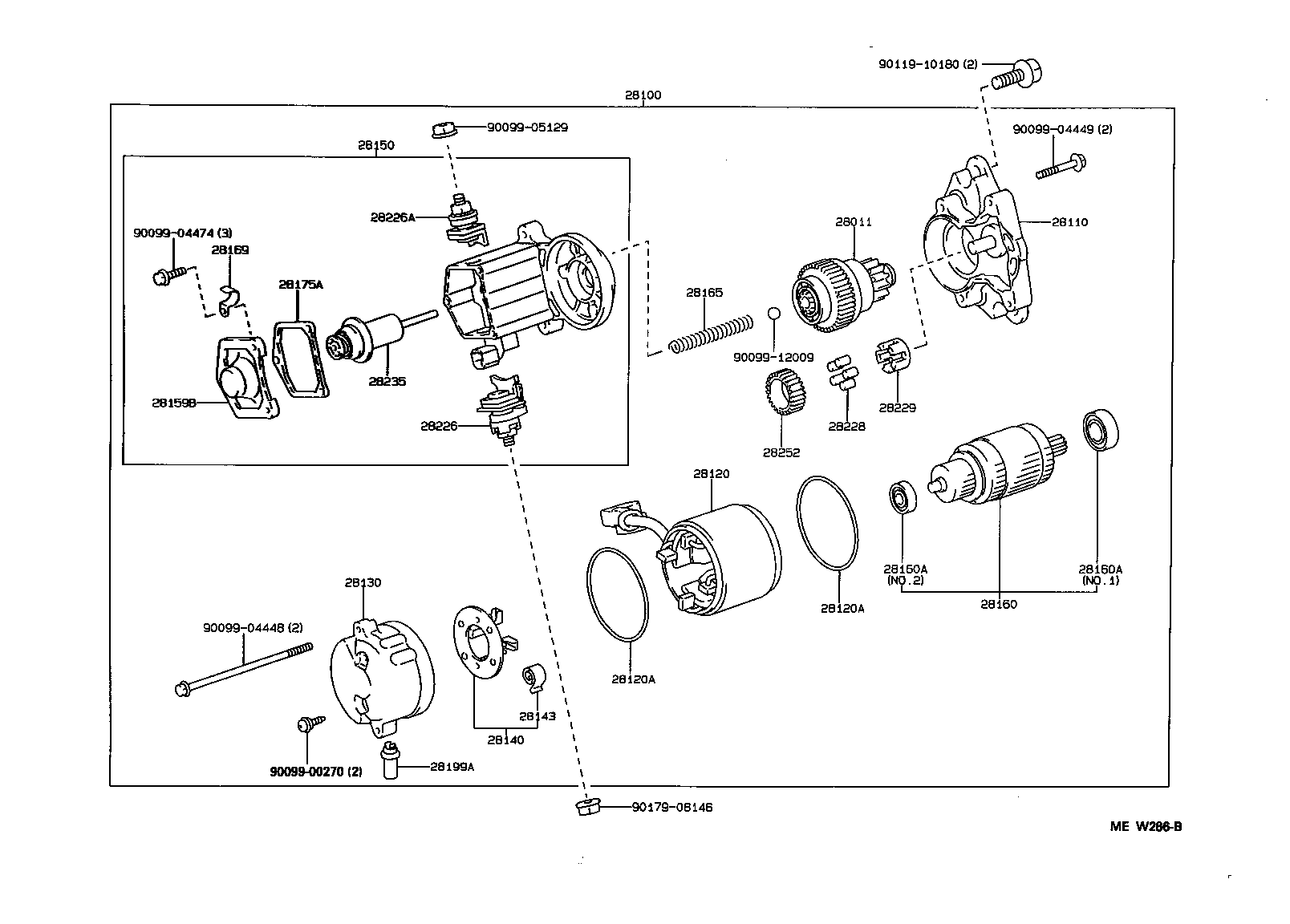

Toyota 28100-46140 STARTER ASSY
28100-46140
Part overview:
OEM reference 28100-46140 for STARTER ASSY.
This page currently lists 3 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 28100 |
| Manufacturer Part Number | 28100-46140 |
| Part Description | STARTER ASSY |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 28100-46140 |
| Catalog | 291430 |
| PNC | 28100 |
| PNC Group | STARTER ASSY |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LEXUS SC300/400 | 1994.01 - |
2JZGE..JZZ31
12V 1.4KW
|
321440 |
| SUPRA | 1993.05 - 1998.08 |
2JZ#..JZA80
12V 1.4KW
|
291430 |
| LEXUS GS300 | 1993.01 - 1997.08 |
2JZGE..JZS147
12V 1.4KW
|
332480 |
Related Parts
| Part Number | Reference |
|---|---|
| 28011-76070 | CLUTCH SUB-ASSY, STARTER |
| 28110-46090 | HOUSING ASSY, STARTER DRIVE |
| 28120-66040 | YOKE ASSY, STARTER |
| 28120-74070 | YOKE ASSY, STARTER |
| 28130-46090 | FRAME ASSY, STARTER COMMUTATOR END |
| 28140-76070 | HOLDER ASSY, STARTER BRUSH |
| 28150-46140 | SWITCH ASSY, MAGNET STARTER |
| 28150-46150 | SWITCH ASSY, MAGNET STARTER |
| 28159-55050 | COVER, MAGNET SWITCH |
| 28160-74070 | ARMATURE ASSY, STARTER |
| 28165-76070 | SPRING, STARTER MAGNET SWITCH RETURN |
| 28169-55050 | CLAMP, STARTER MOTOR LEAD WIRE |
Toyota part number 28100-46140 corresponds to STARTER ASSY. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
