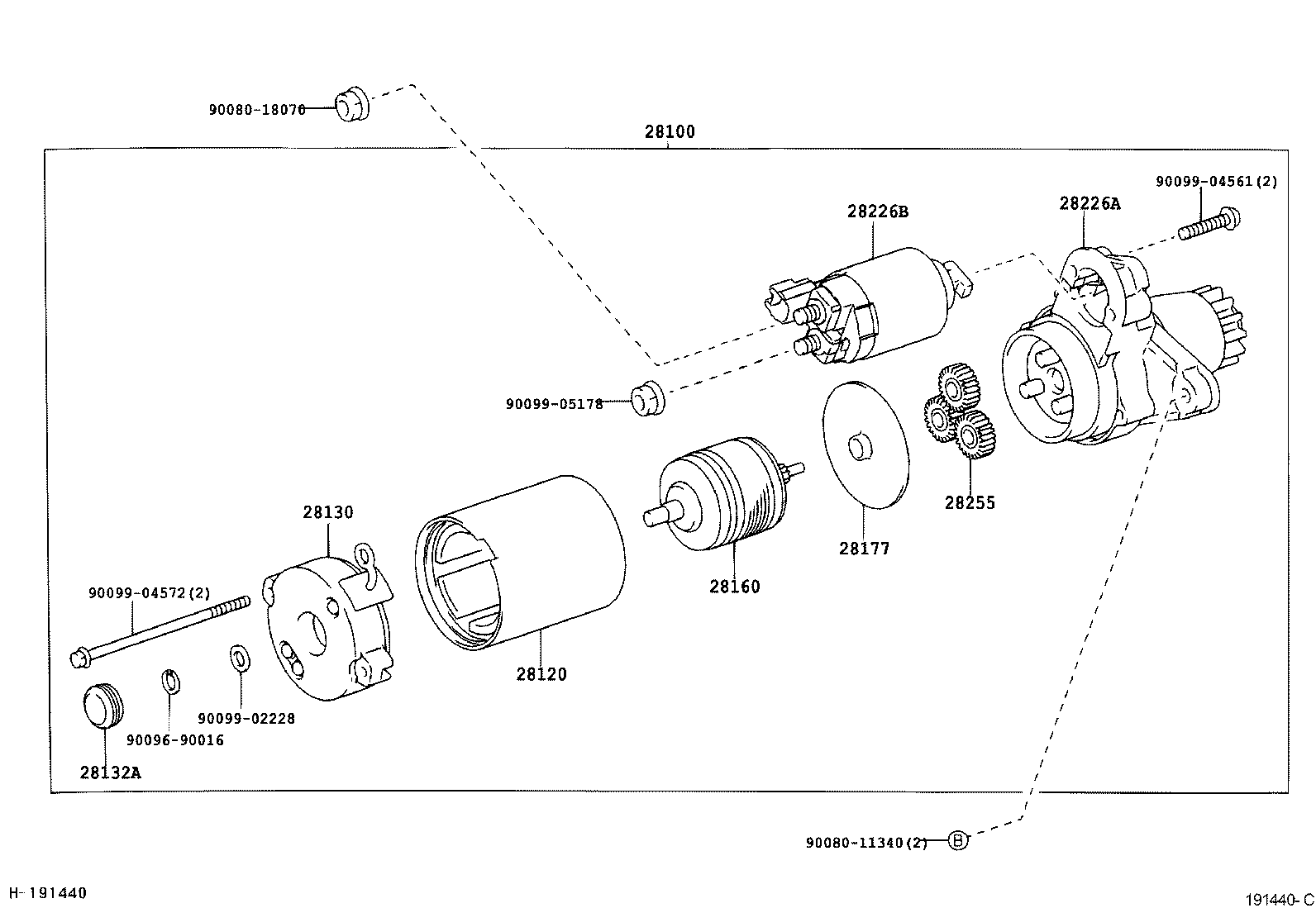

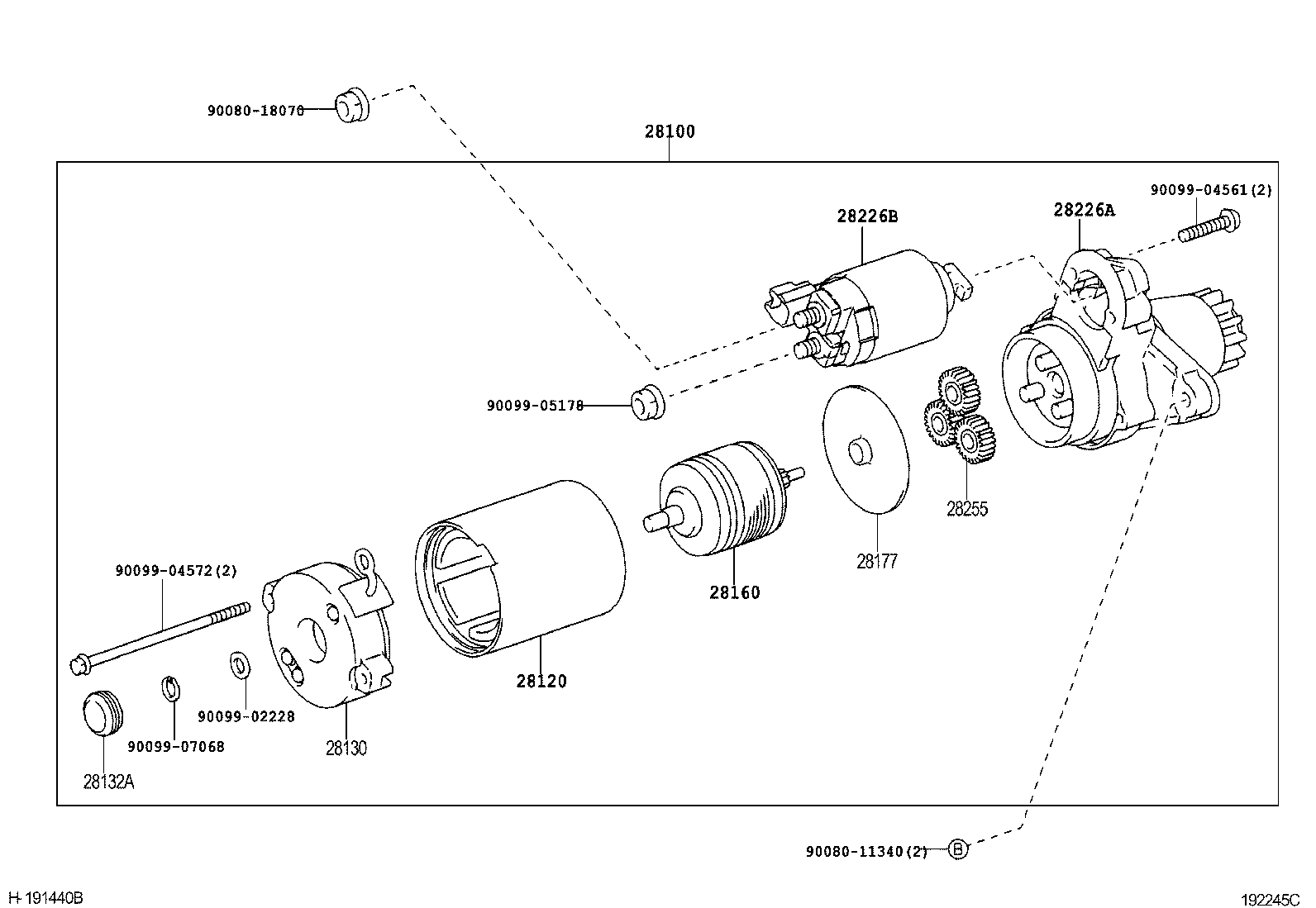

Toyota 28100-0A010 STARTER ASSY
28100-0A010
Part overview:
OEM reference 28100-0A010 for STARTER ASSY.
This page currently lists 14 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 28100 |
| Manufacturer Part Number | 28100-0A010 |
| Part Description | STARTER ASSY |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 28100-0A010 |
| Catalog | 283470 |
| PNC | 28100 |
| PNC Group | STARTER ASSY |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| VENZA | 2008.11 - 2009.11 |
1ARFE,2GRFE..AGV1#,GGV1#
12V 1.7KW
|
286430 |
| AVALON | 2007.07 - 2009.11 |
2GRFE..GSX30
12V 1.7KW
|
361430 |
| SIENNA | 2006.12 - 2009.11 |
2GRFE..GSL2#
12V 1.7KW
|
622420 |
| SOLARA | 2006.05 - 2009.11 |
3MZFE..MCV31..CVT
12V 1.7KW
|
286420 |
| SOLARA | 2006.05 - 2008.08 |
2AZFE,3MZFE..ACV30,MCV31..CP
12V 1.7KW
|
286420 |
| CAMRY (NAP) | 2006.02 - 2009.03 |
2AZFE,2GRFE..ACV40,GSV40..NAP
12V 1.7KW
|
283480 |
| LEXUS RX330/350(NAP) | 2006.02 - |
2GRFE..GSU3#..NAP
12V 1.7KW
|
523410 |
| SIENNA | 2005.09 - 2006.12 |
3MZFE..MCL2#
12V 1.7KW
|
622420 |
| AVALON | 2005.01 - 2007.07 |
2GRFE..GSX30
12V 1.7KW
|
361430 |
| CAMRY (NAP) | 2004.06 - |
3MZFE..MCV31..NAP
12V 1.7KW
|
283470 |
| LEXUS RX330/350(NAP) | 2003.09 - 2006.02 |
3MZFE..MCU3#..NAP
12V 1.7KW
|
523410 |
| CAMRY (NAP) | 2003.09 - 2004.06 |
3MZFE..MCV31..NAP
12V 1.7KW
|
283470 |
| SOLARA | 2003.07 - 2006.05 |
3MZFE..MCV31
12V 1.7KW
|
286420 |
| SIENNA | 2003.01 - 2005.09 |
3MZFE..MCL2#
12V 1.7KW
|
622420 |
Related Parts
| Part Number | Reference |
|---|---|
| 28100-28040 | STARTER ASSY |
| 28100-28041 | STARTER ASSY |
| 28120-28040 | YOKE ASSY, STARTER |
| 28130-20020 | FRAME ASSY, STARTER COMMUTATOR END |
| 28130-28040 | FRAME ASSY, STARTER COMMUTATOR END |
| 28132-28040 | COVER, STARTER COMMUTATOR END FRAME |
| 28160-28040 | ARMATURE ASSY, STARTER |
| 28177-28040 | PLATE(FOR STARTER ARMATURE) |
| 28226-28041 | STARTER KIT, MOTOR TERMINAL |
| 28226-28050 | STARTER KIT, REPAIR SERVICE |
| 28226-28051 | STARTER KIT, REPAIR SERVICE |
| 28255-20020 | GEAR, PLANET |
Toyota part number 28100-0A010 corresponds to STARTER ASSY. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
