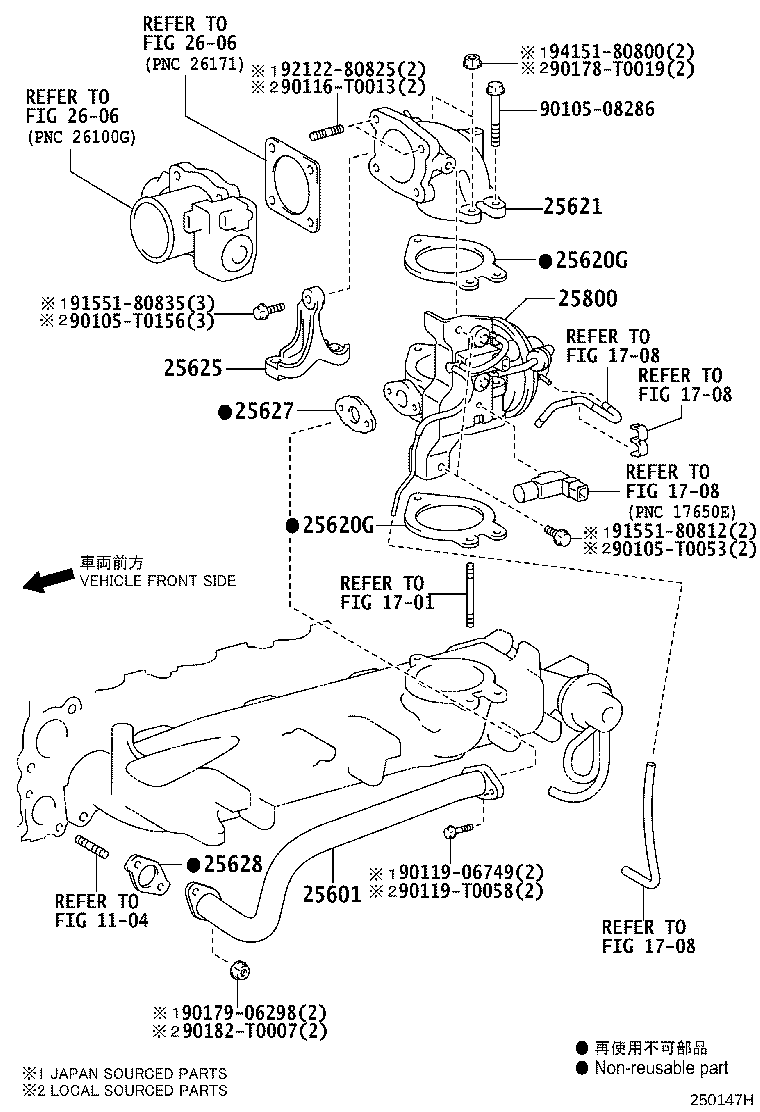

Toyota 25601-0L010 PIPE SUB-ASSY, EGR, NO.1
25601-0L010
Part overview:
OEM reference 25601-0L010 for PIPE SUB-ASSY, EGR, NO.1.
This page currently lists 18 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 25601 |
| Manufacturer Part Number | 25601-0L010 |
| Part Description | PIPE SUB-ASSY, EGR, NO.1 |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 25601-0L010 |
| Catalog | 672370 |
| PNC | 25601 |
| PNC Group | PIPE SUB-ASSY, EGR, NO.1 |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| HILUX | 2015.05 - 2020.06 |
1KDFTV,2KDFTV..KUN112,12#,135..IDN,PKN,VN
|
672390 |
| HILUX | 2013.08 - 2014.08 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN
PAKISTAN SPEC(EURO 2 REGULATION),*130
|
672380 |
| HILUX | 2012.10 - 2016.01 |
1KDFTV..KUN26..4FC..LA
*130
|
672380 |
| HILUX | 2012.08 - 2014.08 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH
2KDFTV..KUN15..SCB..TH;2KDFTV..KUN15..SMT..SR
THAI SPEC(EURO 3 REGULATION),*130
THAI SPEC(EURO 3 REGULATION)&ENGINE-2KD-FTV,*130
|
672380 |
| HILUX | 2011.10 - 2015.10 |
1KDFTV..KUN26,36..5F..DCR..LA
1KDFTV..KUN26..5F..DCR..LA
1KDFTV,2KDFTV..KUN2#,3#..5F..(DCR,HDCR)..LA..CBU
1KDFTV..KUN36..SR..LA;1KDFTV..KUN26..5F..DCR..LA
HIGH ALTITUDE COUNTRY SPEC,*130
PERU SPEC(HIGH ALTITUDE SPEC),*130
PERU SPEC,*130
EXPORT FROM ARGENTINA,*130
|
672380 |
| HILUX | 2011.10 - 2012.10 |
1KDFTV..KUN26..4FC..LA
1KDFTV,2KDFTV..KUN2#,3#..(DCR,HDCR)..LA
HIGH ALTITUDE COUNTRY SPEC,*130
PERU SPEC(HIGH ALTITUDE SPEC),*130
PERU SPEC,*130
BRAZIL SPEC,*130
EXPORT FROM ARGENTINA,*130
|
672380 |
| HILUX | 2011.07 - 2016.01 |
1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN25..T
HDCB,THSCB;2KDFTV..KUN15,35..DLX..PHL;1KDFTV..KUN26..4FC..(CO,TH);2KDFTV..KUN15..S
R..(GEN,PHL);2KDFTV..KUN25..RHD..(IDN,MA,SA);2KDFTV..KUN35..SR..(GEN,PHL,SA);1KDFT
V..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;2KDFTV..KUN35..(SCB
,THDCB,XTR)..(GEN,SA);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN15..(SCB
,XTR)..(SR,STD)..(PHL,SA);1KDFTV,2KDFTV..KUN1#..RHD..(4FC,5F)..DCR..(IDN,SA,TH)
*130
|
672380 |
| HILUX | 2011.07 - 2014.10 |
1KDFTV,2KDFTV..KUN2#,35..5F..CO
*130
|
672380 |
| HILUX | 2011.07 - 2012.08 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH
*130
|
672380 |
| HILUX | 2010.08 - 2012.04 |
2KDFTV..KUN35..SR..SA;2KDFTV..KUN35..(SCB,THDCB)..(GEN,SA);1KDFTV,2KDFTV..KUN2#..(
THDCB,THSCB)..5F;1KDFTV,2KDFTV..KUN15,2#,36..RHD..(DCB,SCB)..5F..SA
*130
|
672370 |
| HILUX | 2009.08 - 2011.07 |
2KDFTV..KUN25,35..SR..TH
|
672370 |
| HILUX | 2008.08 - 2012.04 |
2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..XTR..SA;2KDFTV..KUN15..SCB..(PHL,TH);1KDF
TV..KUN16,26,36..IDN,LA,PHL,TH;2KDFTV..KUN35..DLX..(ANCOM,LA,PHL,TH);2KDFTV..KUN15
..RHD..(DCB,SMT,XTR)..(SA,TH);2KDFTV..KUN15,25..(DLX,SR)..(ANCOM,LA,MA,PHL)
*130
|
672370 |
| HILUX | 2008.08 - 2010.08 |
2KDFTV..KUN25,35..THDCB
2KDFTV..KUN15..IV3
ECUADOR & COLOMBIA SPEC,*130
PHILIPPINES SPEC,*130
|
672370 |
| HILUX | 2008.08 - 2009.08 |
2KDFTV..KUN25..TH
*130
|
672370 |
| HILUX | 2007.08 - 2008.08 |
2KDFTV..KUN25,35..THDCB
ECUADOR OR COLOMBIA SPEC,*130
|
672370 |
| HILUX | 2004.08 - 2008.12 |
2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCO
M,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(LA,PHL,TH);1KDFTV,2KDFTV..KUN16,3#.
.(DCB,SCB,XTR)..(ANCOM,LA,TH)
*130
|
672370 |
| HILUX | 2004.08 - 2007.10 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA
*130
|
672370 |
| HILUX | 2004.08 - 2006.08 |
1KDFTV..KUN16,26..ARL
*130
|
672370 |
Related Parts
| Part Number | Reference |
|---|---|
| 17861-0L010 | CONNECTOR, INTAKE AIR(FOR GASKET) |
| 17861-0L030 | CONNECTOR, INTAKE AIR(FOR GASKET) |
| 17861-30070 | CONNECTOR, INTAKE AIR(FOR GASKET) |
| 17861-30090 | CONNECTOR, INTAKE AIR(FOR GASKET) |
| 17862-0L010 | CONNECTOR, INTAKE AIR, NO.2 |
| 17862-30020 | CONNECTOR, INTAKE AIR, NO.2 |
| 25601-30070 | PIPE SUB-ASSY, EGR, NO.1 |
| 25601-30080 | PIPE SUB-ASSY, EGR, NO.1 |
| 25611-0L020 | ADAPTER, EGR VALVE |
| 25611-30010 | ADAPTER, EGR VALVE |
| 25627-0L010 | GASKET, EGR VALVE |
| 25627-30010 | GASKET, EGR VALVE |
Toyota part number 25601-0L010 corresponds to PIPE SUB-ASSY, EGR, NO.1. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
