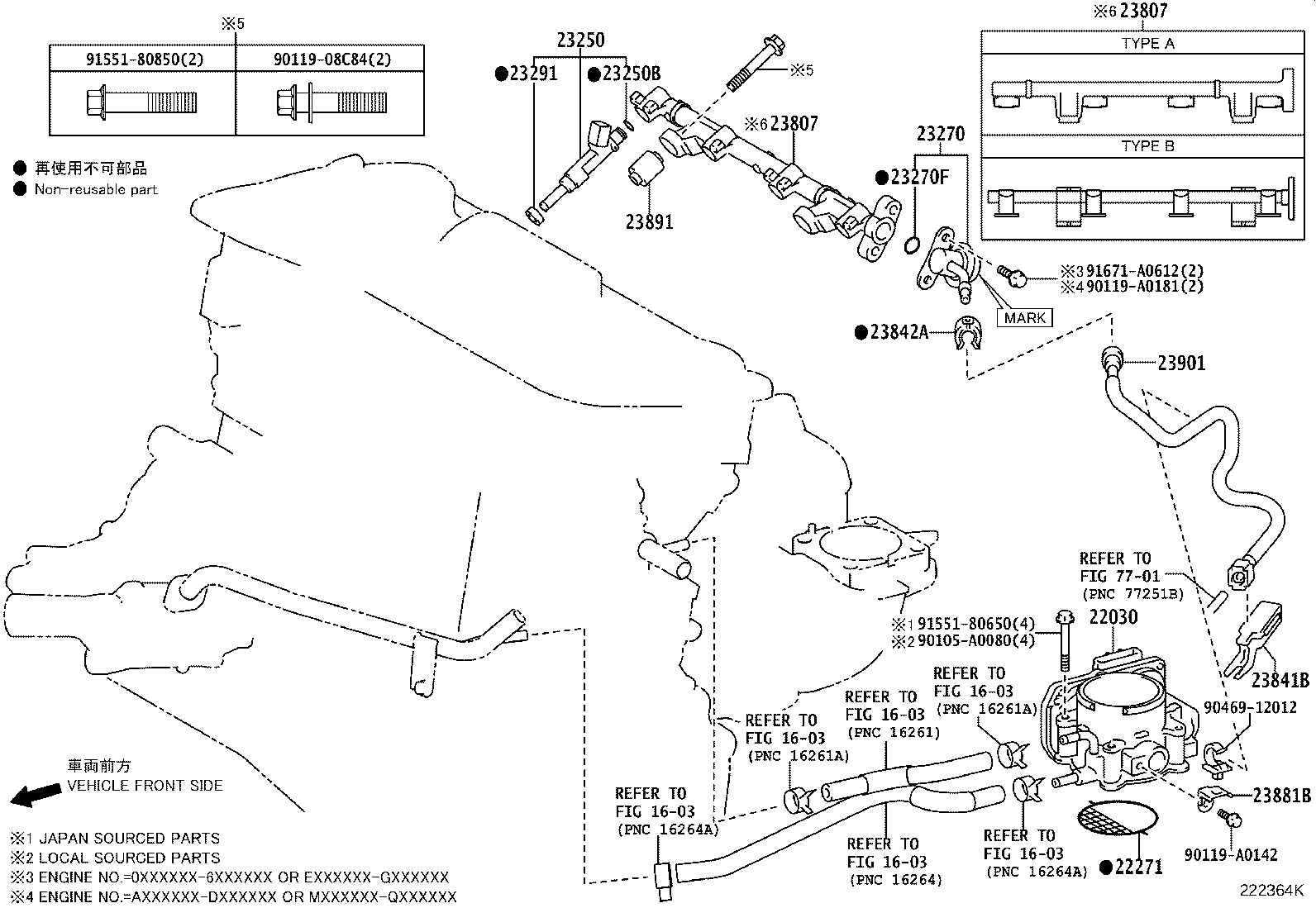

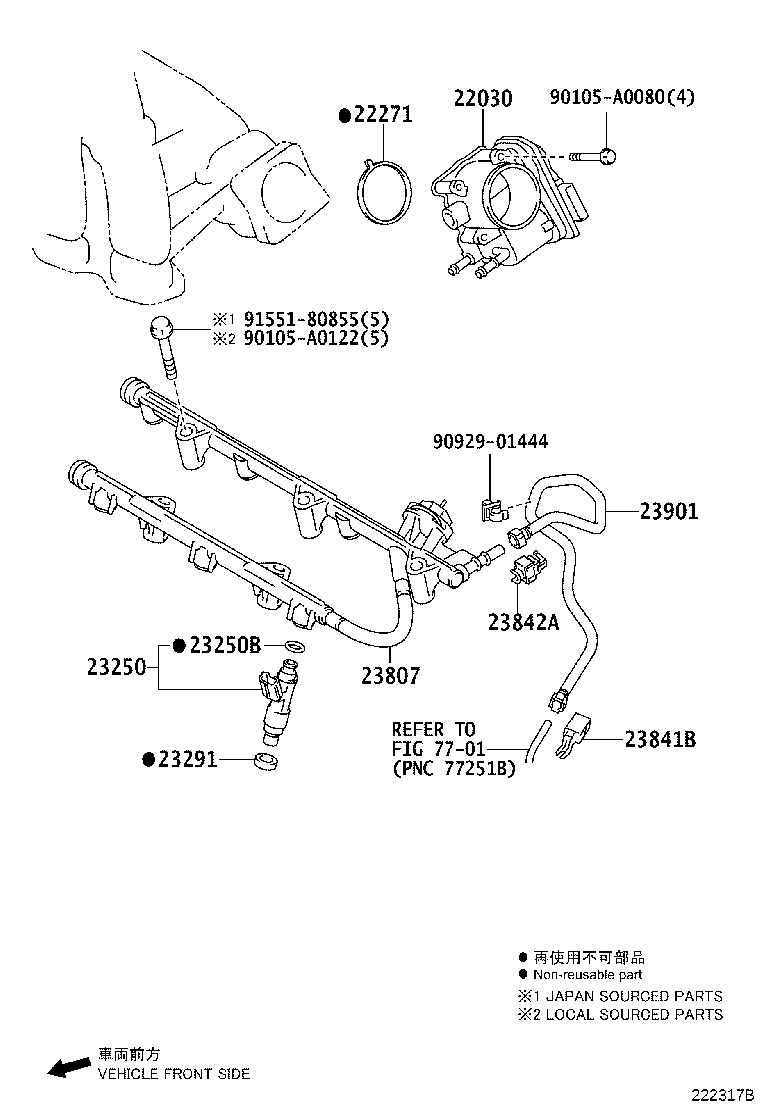

Toyota 23807-0P021 PIPE SUB-ASSY, FUEL DELIVERY
23807-0P021
Part overview:
OEM reference 23807-0P021 for PIPE SUB-ASSY, FUEL DELIVERY.
This page currently lists 4 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 23807 |
| Manufacturer Part Number | 23807-0P021 |
| Part Description | PIPE SUB-ASSY, FUEL DELIVERY |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 23807-0P021 |
| Catalog | 286430 |
| PNC | 23807 |
| PNC Group | PIPE SUB-ASSY, FUEL DELIVERY |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| VENZA | 2012.05 - |
2GRFE..GGV1#
(L)
|
286430 |
| VENZA | 2011.09 - 2012.05 |
2GRFE..GGV1#
(L)
|
286430 |
| RAV4 (NAP) | 2011.09 - |
2GRFE..GSA3#..NAP
(L)
|
665410 |
| AVALON | 2011.09 - |
2GRFE..GSX30
|
361430 |
Related Parts
| Part Number | Reference |
|---|---|
| 22030-0P050 | BODY ASSY, THROTTLE W/MOTOR |
| 22030-0V010 | BODY ASSY, THROTTLE W/MOTOR |
| 22030-36010 | BODY ASSY, THROTTLE W/MOTOR |
| 22271-0P020 | GASKET, THROTTLE BODY |
| 22271-0V010 | GASKET, THROTTLE BODY |
| 22271-36010 | GASKET, THROTTLE BODY |
| 23209-09175 | INJECTOR ASSY, FUEL |
| 23209-0P040 | INJECTOR ASSY, FUEL |
| 23209-31050 | INJECTOR ASSY, FUEL |
| 23209-39175 | INJECTOR ASSY, FUEL |
| 23270-36010 | DAMPER ASSY, FUEL PRESSURE PULSATION |
| 23270-36031 | DAMPER ASSY, FUEL PRESSURE PULSATION |
Toyota part number 23807-0P021 corresponds to PIPE SUB-ASSY, FUEL DELIVERY. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
