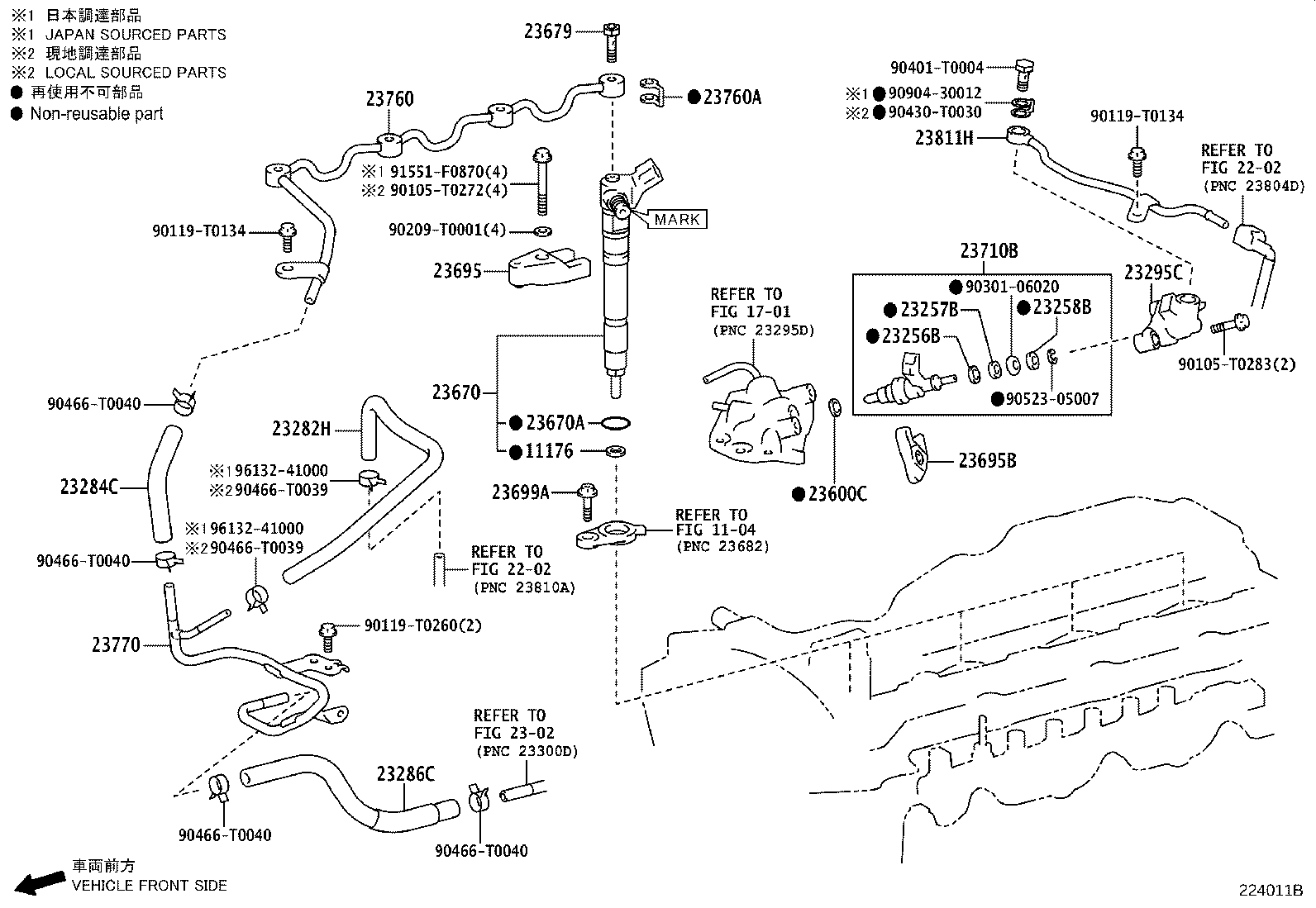

🔍 Click image to enlarge
Toyota 23670-09500 INJECTOR ASSY
23670-09500
Part overview:
OEM reference 23670-09500 for INJECTOR ASSY.
This page currently lists 12 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 23670 |
| Manufacturer Part Number | 23670-09500 |
| Part Description | INJECTOR ASSY |
| Condition | New |
| Quantity Per Vehicle | 4 |
| SKU | 23670-09500 |
| Catalog | 6723A0 |
| PNC | 23670 |
| PNC Group | INJECTOR ASSY |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| HILUX (SCB/XTR) | 2022.11 - 2022.12 |
2GDFTV..GUN125..AGTP;2GDFTV..GUN135..BZAG
2GDFTV..GUN125..AGTP..LA
2GDFTV..GUN135..AGTP..LA
MARK 23670-0E100
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 23670-0E100
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 236
70-0E100
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.11 - 2022.12 |
2GDFTV..GUN125,135..BZAG
2GDFTV..GUN125..AGTP..LA
2GDFTV..GUN125..AGTP..S
2GDFTV..GUN125,135..AGTP..6F..LA
2GDFTV..GUN135..AGTP..LA;2GDFTV..GUN125..AGTP..6F..S
MARK 23670-0E100
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 236
COLOMBIA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 23670
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 23670-0E
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 23670-0E1
70-0E100
-0E100
100
00
|
6733C0 |
| HILUX (DOUBLE CAB) | 2022.07 - 2022.10 |
2GDFTV..GUN125,135..AGTP..6F..LA
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 23670-0E100
|
6733B0 |
| HILUX (DOUBLE CAB) | 2021.11 - 2022.10 |
2GDFTV..GUN125,135..AGTP..6F..LA
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 23670-0E1
00
|
6733B0 |
| HILUX (SCB/XTR) | 2021.11 - 2022.05 |
2GDFTV..GUN125..RHD..6F..L..GEN
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 23670-0E100
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.11 - 2022.05 |
2GDFTV..GUN125,135..VN
2GDFTV..GUN125..RHD..6F..(H,L)..GEN
MARK 23670-0E100
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 23670-0E100
|
6733B0 |
| HILUX (SCB/XTR) | 2021.11 - 2022.03 |
2GDFTV..GUN125..AGTP..LA
CENTRAL AND SOUTH AMERICA SPEC,MARK 23670-0E100
|
6723B0 |
| HILUX (SCB/XTR) | 2021.08 - 2022.10 |
2GDFTV..GUN135..BZAG;2GDFTV..GUN125..AGTP;2GDFTV..GUN125..6FC..GEN
MARK 23670-0E100
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.10 |
2GDFTV..GUN125,135..BZAG;2GDFTV..GUN125..6FC..L..GEN
MARK 23670-0E100
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2022.05 |
2GDFTV..GUN125,135..ARL
MARK 23670-0E100
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.05 |
2GDFTV..GUN125,135..ARL
MARK 23670-0E100
|
6733B0 |
| HILUX | 2021.05 - 2021.08 |
2GDFTV..GUN125,135..ARL
MARK 23670-0E100
|
6723A0 |
Related Parts
| Part Number | Reference |
|---|---|
| 11106-54170 | CHAMBER SUB-ASSY, COMBUSTION |
| 11165-54030 | SHIM(FOR COMBUSTION CHAMBER) |
| 11176-0E010 | SEAT, INJECTION NOZZLE |
| 11176-33010 | SEAT, INJECTION NOZZLE |
| 11176-64010 | SEAT, INJECTION NOZZLE |
| 11177-54020 | GASKET, INJECTION NOZZLE SEAT |
| 23256-74010 | RING, FUEL INJECTOR BACK-UP, NO.1 |
| 23257-74010 | RING, FUEL INJECTOR BACK-UP, NO.2 |
| 23258-28011 | RING, FUEL INJECTOR BACK-UP, NO.3 |
| 23282-0E012 | HOSE, FUEL, NO.4 |
| 23282-0E022 | HOSE, FUEL, NO.4 |
| 23282-0E030 | HOSE, FUEL, NO.4 |
Toyota part number 23670-09500 corresponds to INJECTOR ASSY. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
