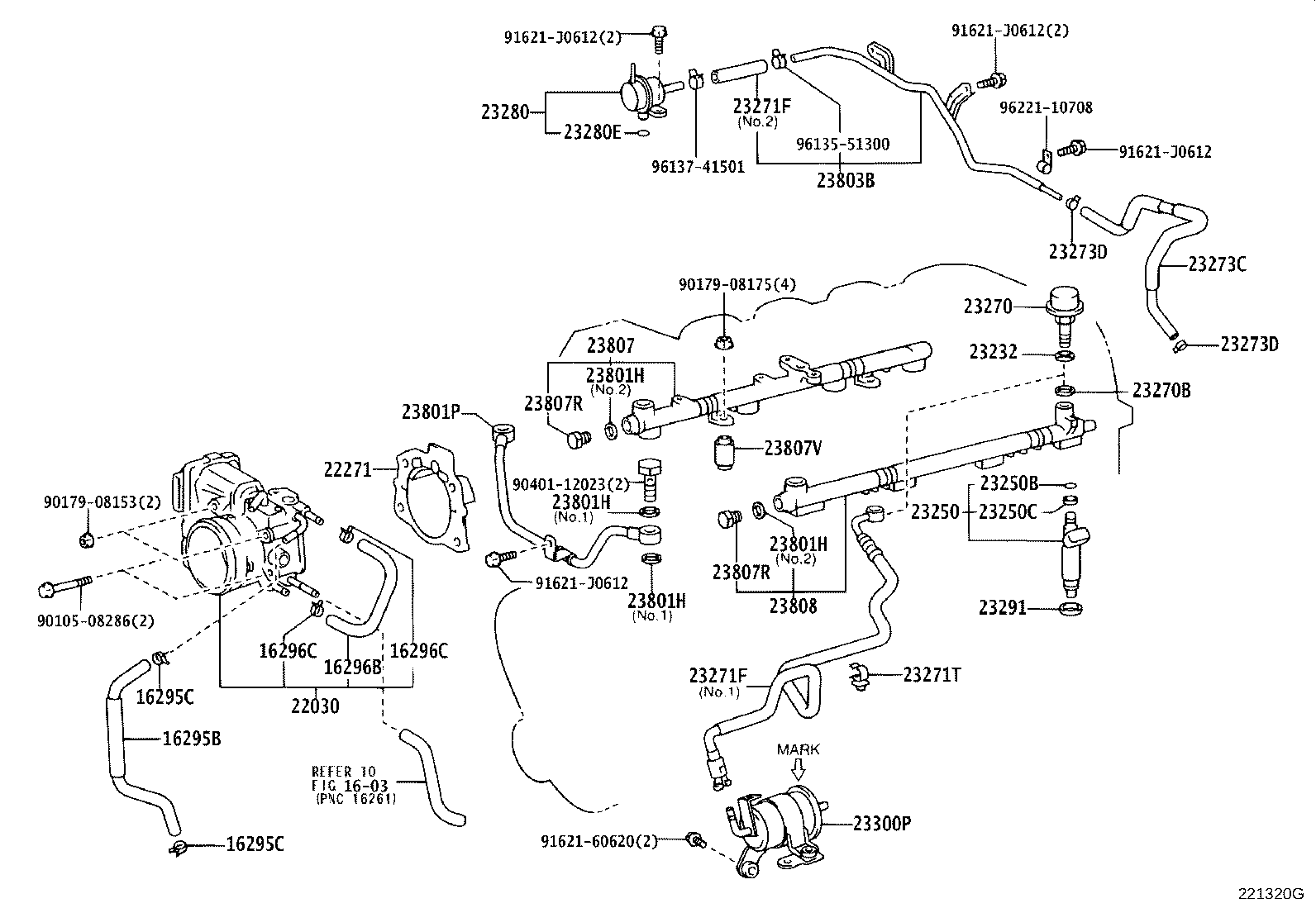

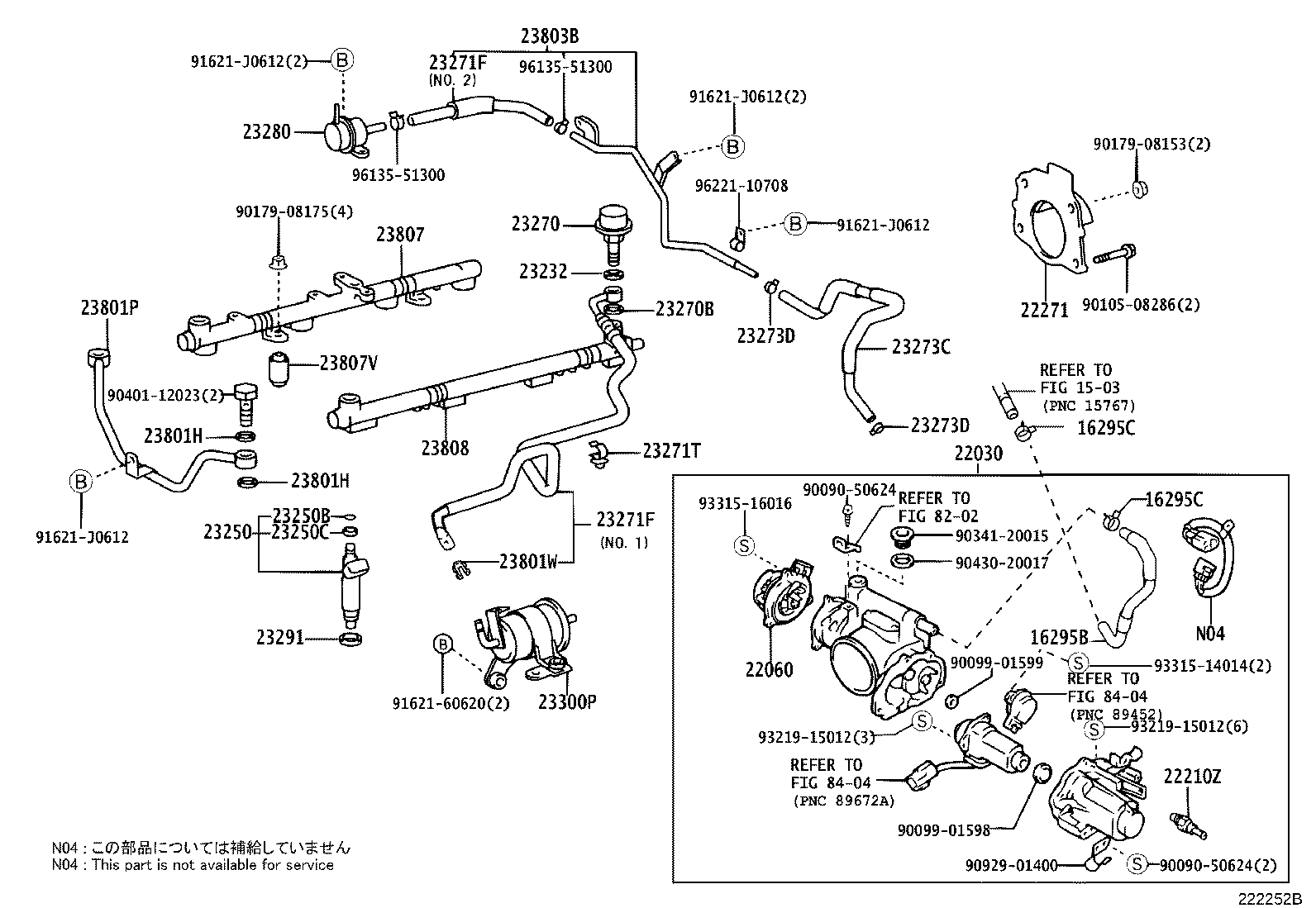

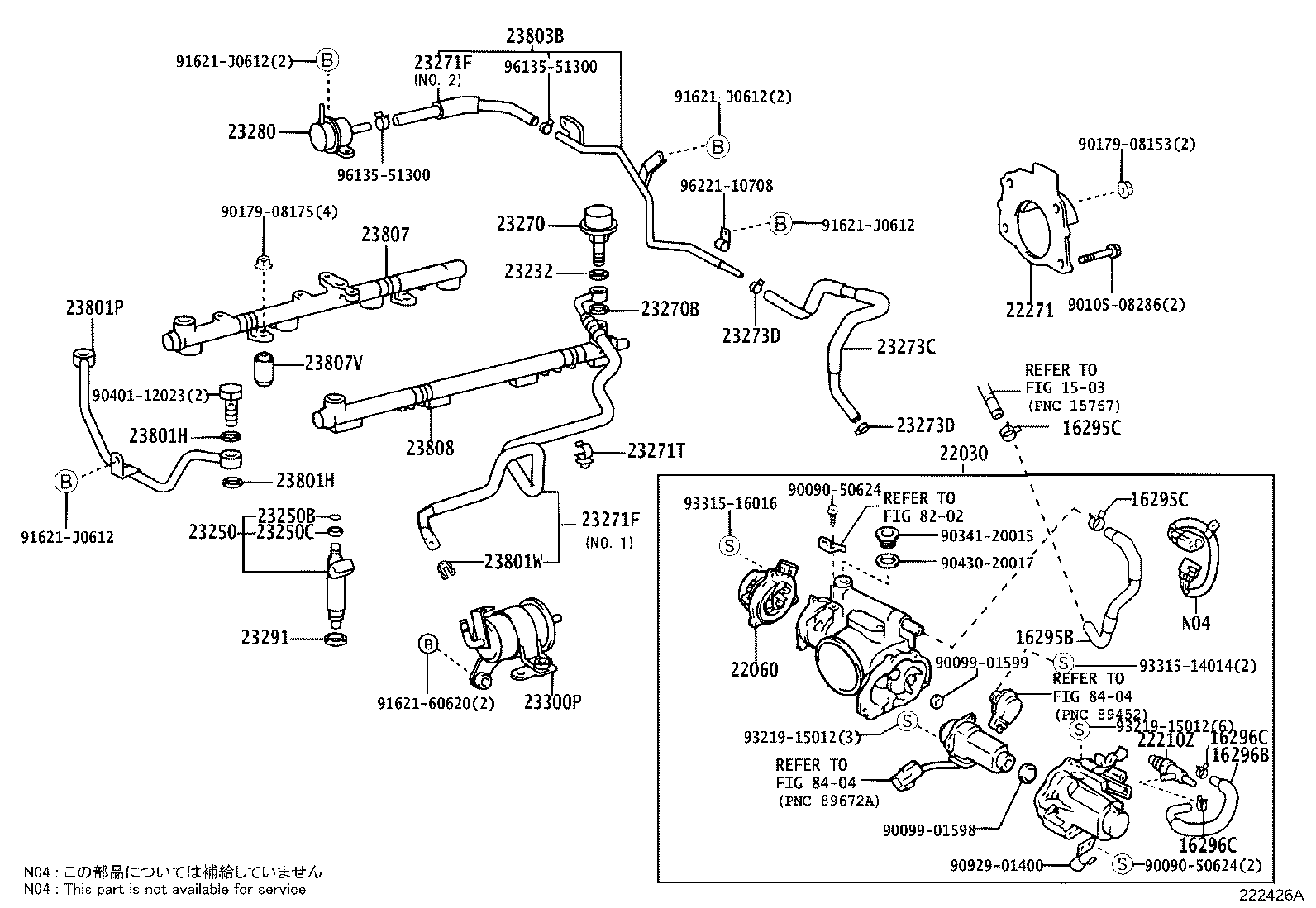

Toyota 23221-66040 PUMP ASSY, FUEL
23221-66040
Part overview:
OEM reference 23221-66040 for PUMP ASSY, FUEL.
This page currently lists 3 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 23220P |
| Manufacturer Part Number | 23221-66040 |
| Part Description | PUMP ASSY, FUEL |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 23221-66040 |
| Catalog | 781330 |
| PNC | 23220P |
| PNC Group | PUMP ASSY, FUEL |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LAND CRUISER | 2007.01 - 2009.01 |
1FZFE..FZJ7#
|
781370 |
| LAND CRUISER | 1999.09 - 2001.06 |
1FZFE..FZJ70,75..CBU
|
781330 |
| LAND CRUISER | 1999.08 - 2008.08 |
1FZFE..FZJ71,74,78,79
1FZFE..FZJ78,79
W(FUEL SUB TANK)
|
781330 |
Related Parts
| Part Number | Reference |
|---|---|
| 22202-66021 | DASH POT SUB-ASSY |
| 22202-66030 | DASH POT SUB-ASSY |
| 22202-66070 | DASH POT SUB-ASSY |
| 22210-66020 | BODY ASSY, THROTTLE |
| 22210-66021 | BODY ASSY, THROTTLE |
| 22210-66060 | BODY ASSY, THROTTLE |
| 22210-66070 | BODY ASSY, THROTTLE |
| 22215-7A680 | GASKET, THROTTLE BODY COVER |
| 22216-74311 | SCREW, DASH POT ADJUSTING |
| 22270-66010 | VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) |
| 22270-66011 | VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) |
| 22270-66020 | VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) |
Toyota part number 23221-66040 corresponds to PUMP ASSY, FUEL. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
