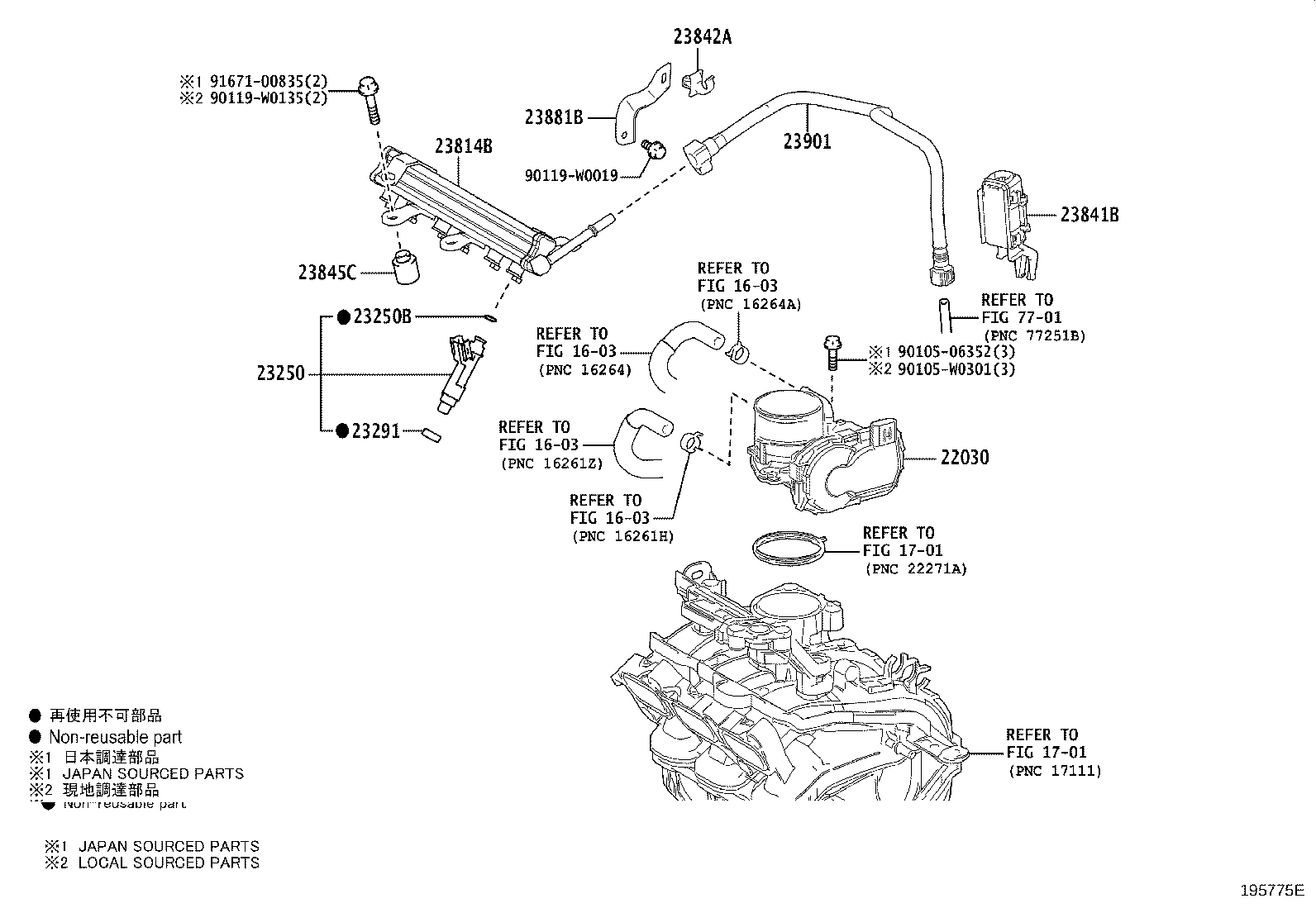

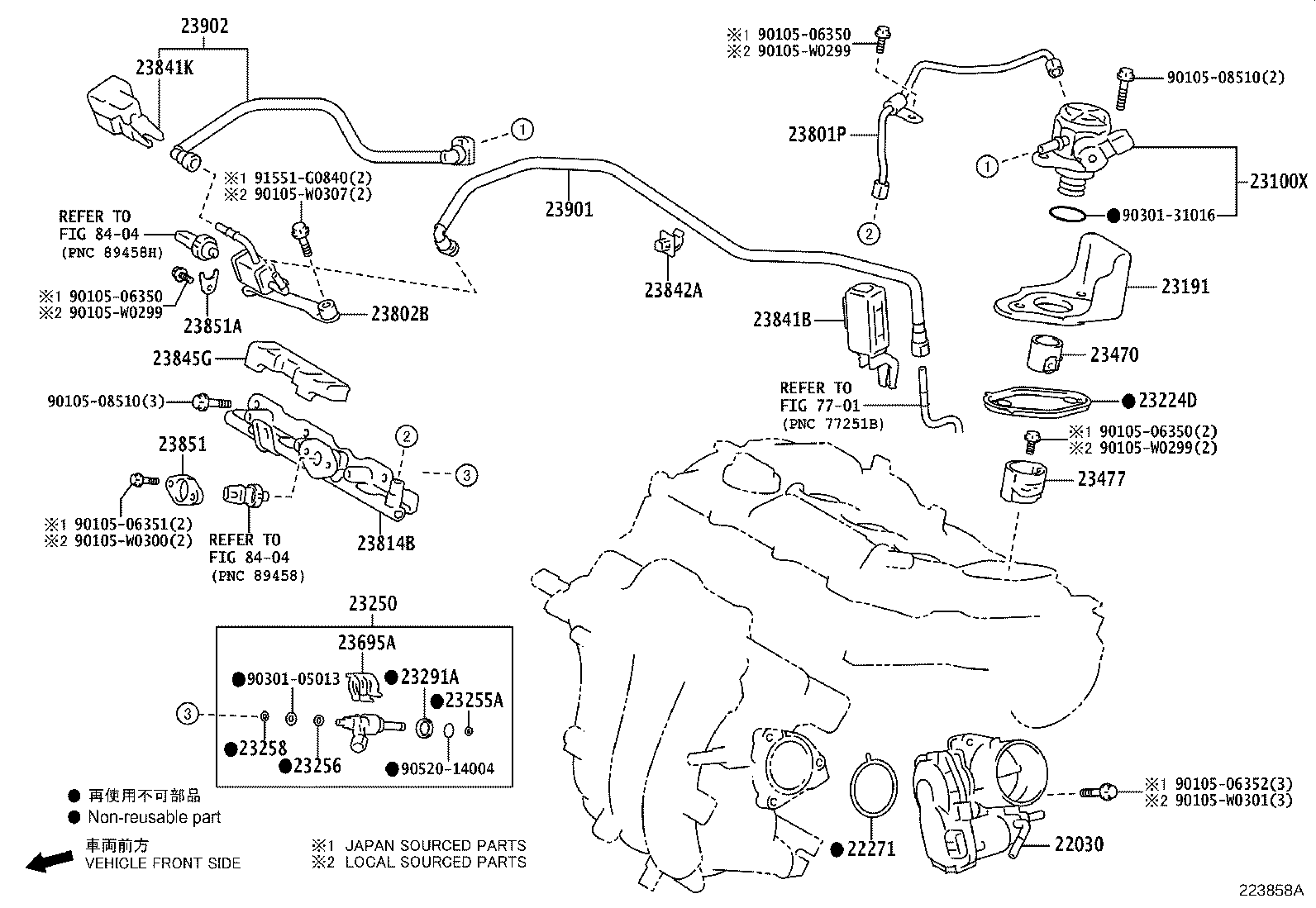

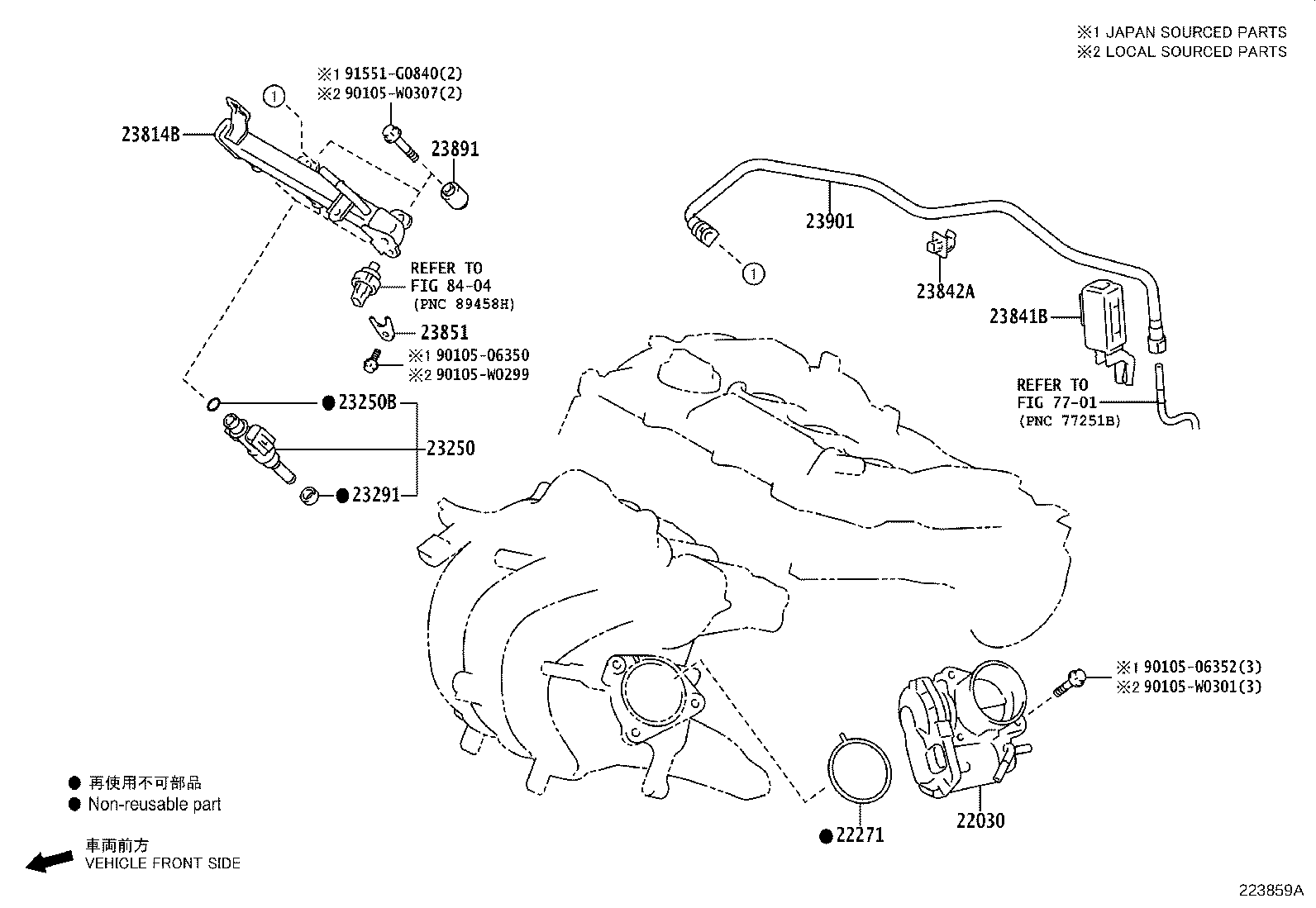

🔍 Click image to enlarge
Toyota 23209-24010-01 INJECTOR ASSY, FUEL(FOR DIRECT)
23209-24010-01
Part overview:
OEM reference 23209-24010-01 for INJECTOR ASSY, FUEL(FOR DIRECT).
This page currently lists 40 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 23250E |
| Manufacturer Part Number | 23209-24010-01 |
| Part Description | INJECTOR ASSY, FUEL(FOR DIRECT) |
| Condition | New |
| Quantity Per Vehicle | 4 |
| SKU | 23209-24010-01 |
| Catalog | 152280 |
| PNC | 23250E |
| PNC Group | INJECTOR ASSY, FUEL(FOR DIRECT) |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| COROLLA CROSS | 2024.12 - |
M20AFKS..MXGA1#
M20#..MXGA1#,MXGH15
MARK 1,*502:REFER R/M
MARK 1,*704 P/N=24010,*RRM
|
552410 |
| COROLLA (MEXICO) | 2024.10 - |
M20AFKS..MZEA1#
MARK 1,LABEL=-24010,*RRM
|
152280 |
| COROLLA SED (NAP) | 2024.10 - |
M20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND
MARK 1,LABEL=-24010,*RRM
|
152480 |
| COROLLA SED (JPP) | 2024.09 - 2025.07 |
M20AFKS..MZEA12..D
MARK 1,REFER REPAIR MANUAL
|
153260 |
| COROLLA SED (JPP) | 2024.09 - |
M20AFKS..MZEA18;M20AFKS..MZEA12..L
MARK 1,REFER REPAIR MANUAL
|
153260 |
| COROLLA SED (JPP) | 2024.09 - |
M20AFKS..MZEA1#..L,S,Y
MARK 1,REFER REPAIR MANUAL
|
153460 |
| LEXUS UX300#/250H | 2024.01 - |
M20AFXS..MZAH11,16
MARK 1,REFER REPAIR MANUAL
|
537420 |
| RAV4 (JPP) | 2023.10 - |
M20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MX
AA54..JPP..(GCC,GEN,RUS,SA)
MARK 1,REFER REPAIR MANUAL
|
662250 |
| PRIUS | 2022.12 - |
M20AFXS..MXWH6#
MARK 1,REFER REPAIR MANUAL
|
222450 |
| COROLLA CROSS | 2022.11 - 2024.12 |
M20AFKS..MXGA1#
M20#..MXGA1#,MXGH15
MARK 1,*502:REFER R/M
MARK 1,*704 P/N=24010,*RRM
|
552410 |
| COROLLA (MEXICO) | 2022.11 - 2024.10 |
M20AFKS..MZEA1#
MARK 1,LABEL=-24010,*RRM
|
152280 |
| COROLLA SED (NAP) | 2022.11 - 2024.10 |
M20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND
MARK 1,LABEL=-24010,*RRM
|
152480 |
| COROLLA SED (NAP) | 2022.11 - |
M20AFKS..MZEA18..D..USA
MARK 1,LABEL=-24010,*RRM
|
152480 |
| RAV4 (JPP) | 2022.10 - 2023.10 |
M20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MX
AA54..JPP..(GCC,GEN,RUS,SA)
MARK 1,REFER REPAIR MANUAL
|
662250 |
| RAV4 (JPP) | 2022.10 - |
M20AFKS..MXAA54..EUR;M20AFKS..MXAA52..G..EUR;M20AFKS..MXAA52..(M,X)..(EUR,SA)
MARK 1,REFER REPAIR MANUAL
|
662250 |
| COROLLA SED (JPP) | 2022.09 - 2024.09 |
M20AFKS..MZEA12;M20AFKS..MZEA18..LHD
MARK 1,REFER REPAIR MANUAL
|
153260 |
| COROLLA SED (JPP) | 2022.09 - 2024.09 |
M20AFKS..MZEA1#..L,S,Y
MARK 1,REFER REPAIR MANUAL
|
153460 |
| COROLLA SED (JPP) | 2022.09 - 2023.07 |
M20AFKS..MZEA18..RHD
MARK 1,REFER REPAIR MANUAL
|
153260 |
| COROLLA SED (JPP) | 2022.09 - |
M20AFKS..MZEA18..D
MARK 1,REFER REPAIR MANUAL
|
153460 |
| COROLLA HATCHBACK | 2022.09 - |
M20AFKS..MZEA12
MARK 1,REFER REPAIR MANUAL
|
165430 |
| LEXUS UX300#/250H | 2022.07 - |
M20AFXS..MZAH10,15
MARK 1,REFER REPAIR MANUAL
|
537420 |
| COROLLA CROSS | 2021.09 - 2022.11 |
M20AFKS..MXGA1#
MARK 1,LABEL=-24010,*RRM
|
552410 |
| RAV4 (JPP) | 2020.10 - 2022.03 |
M20AFKS..MXAA5#..RUS
MARK 1,(J),REFER R/M
|
662250 |
| RAV4 (JPP) | 2020.08 - 2022.10 |
M20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..
GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS.
.MXAA54..JPP..LHD..6F..(M,X)
MARK 1,REFER REPAIR MANUAL
|
662250 |
| RAV4 (JPP) | 2020.08 - 2021.11 |
M20AFKS..MXAA54..(G,V)..GCC;M20AFKS..MXAA5#..RHD..6F..(ARL,GEN)
MARK 1,REFER REPAIR MANUAL
|
662250 |
| COROLLA (MEXICO) | 2020.07 - 2022.11 |
M20AFKS..MZEA12..CVT
MARK 1,LABEL=-24010,*RRM
|
152280 |
| COROLLA SED (NAP) | 2020.07 - 2022.11 |
M20AFKS..MZEA12
MARK 1,LABEL=-24010,*RRM
|
152480 |
| COROLLA (MEXICO) | 2020.07 - 2021.06 |
M20AFKS..MZEA12..6F
MARK 1,LABEL=-24010,*RRM
|
152280 |
| COROLLA SED (JPP) | 2020.04 - 2022.08 |
M20AFKS..MZEA12
MARK 1,REFER REPAIR MANUAL
|
153260 |
| COROLLA SED (JPP) | 2020.04 - 2022.08 |
M20AFKS..MZEA12
MARK 1,REFER REPAIR MANUAL
|
153460 |
| RAV4 (JPP) | 2019.10 - 2020.09 |
M20AFKS..MXAA5#..RUS
MARK 1,(J),REFER R/M
|
662250 |
| C-HR | 2019.09 - 2023.04 |
M20AFXS..MAXH10
MARK 1,*132:REFER R/M
|
528510 |
| COROLLA SED (JPP) | 2019.09 - 2020.04 |
M20AFKS..MZEA12
MARK 1,REFER REPAIR MANUAL
|
153260 |
| C-HR | 2019.09 - |
M20AFXS..MAXH10
MARK 1,*613,(J):REFER R/M
|
528510 |
| COROLLA SED (JPP) | 2019.01 - 2020.04 |
M20AFKS..MZEA12
MARK 1,REFER REPAIR MANUAL
|
153460 |
| RAV4 (JPP) | 2018.11 - 2020.07 |
M20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA5#..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G
;M20AFKS..MXAA54..JPP..(M,V,X);M20AFKS..MXAA52..JPP..6F..(M,X)
MARK 1,REFER REPAIR MANUAL
|
662250 |
| RAV4 (JPP) | 2018.11 - 2019.09 |
M20AFKS..MXAA5#..6F..G..(GEN,SA)
MARK 1,REFER REPAIR MANUAL
|
662250 |
| LEXUS UX250H/200 | 2018.10 - 2022.07 |
M20#..MZAA10,MZAH1#
MARK 1,REFER REPAIR MANUAL
|
537410 |
| COROLLA HATCHBACK | 2018.06 - 2022.09 |
M20AFKS..MZEA12..CVT
MARK 1,REFER REPAIR MANUAL
|
165430 |
| COROLLA HATCHBACK | 2018.06 - |
M20AFKS..MZEA12..6F
MARK 1,REFER REPAIR MANUAL
|
165430 |
Related Parts
| Part Number | Reference |
|---|---|
| 22030-0T130 | BODY ASSY, THROTTLE |
| 22030-24010 | BODY ASSY, THROTTLE W/MOTOR |
| 22030-37040 | BODY ASSY, THROTTLE |
| 22030-F2010 | BODY ASSY, THROTTLE W/MOTOR |
| 22271-0D051 | GASKET, THROTTLE BODY |
| 22271-24010 | GASKET, THROTTLE BODY |
| 22271-75031 | GASKET, THROTTLE BODY |
| 222A0-37024 | CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT |
| 222A0-37025 | CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT |
| 23101-F0010 | PUMP ASSY, FUEL |
| 23191-25050 | FLANGE, FUEL PUMP |
| 23209-09240 | INJECTOR ASSY, FUEL |
Toyota part number 23209-24010-01 corresponds to INJECTOR ASSY, FUEL(FOR DIRECT). Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
