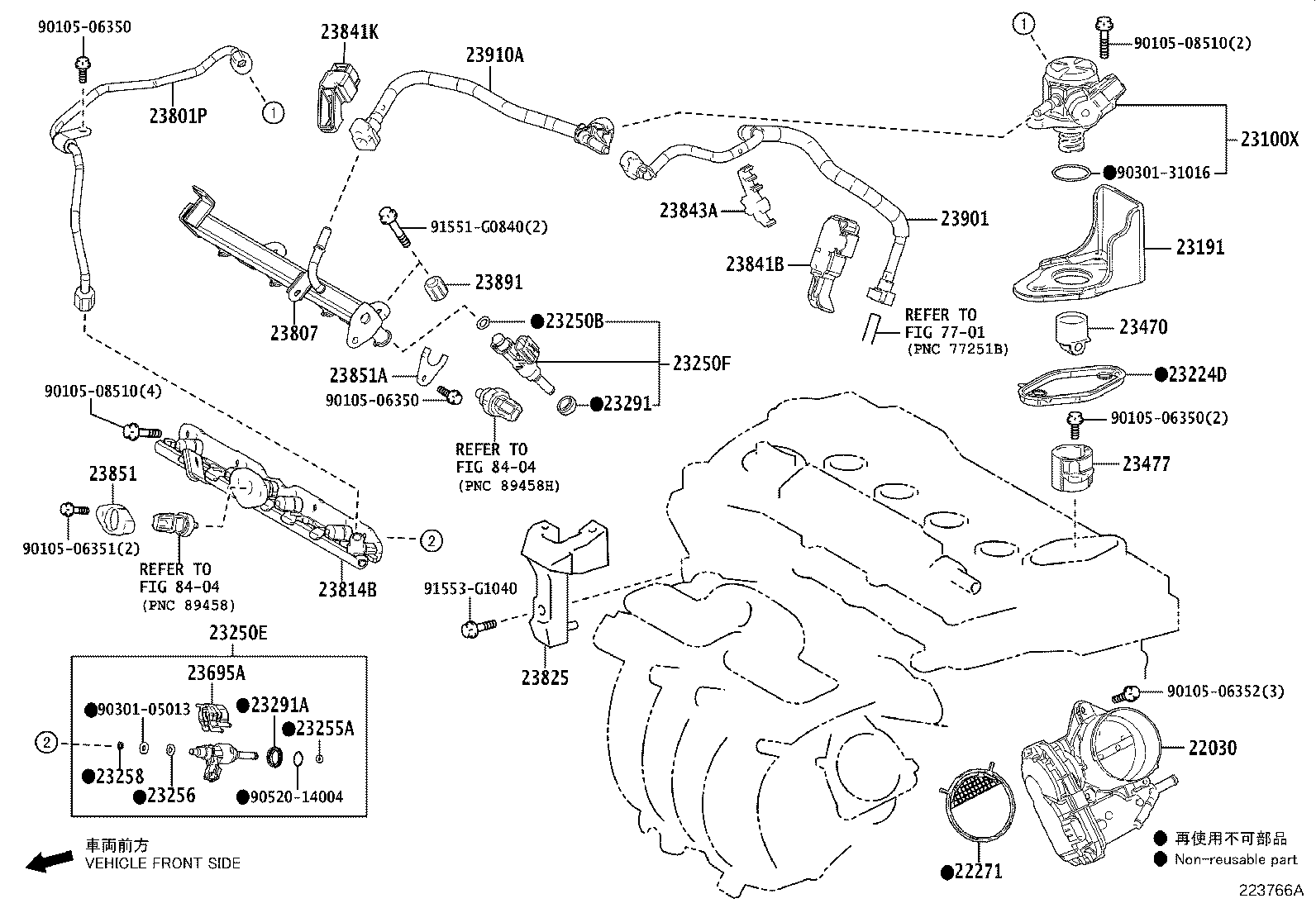

Toyota 22030-37060 BODY ASSY, THROTTLE
22030-37060
Part overview:
OEM reference 22030-37060 for BODY ASSY, THROTTLE.
This page currently lists 22 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 22210 |
| Manufacturer Part Number | 22030-37060 |
| Part Description | BODY ASSY, THROTTLE |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 22030-37060 |
| Catalog | 153260 |
| PNC | 22210 |
| PNC Group | BODY ASSY, THROTTLE |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| COROLLA SED (JPP) | 2024.09 - |
2ZRFXE..ZWE219
|
153260 |
| COROLLA SED (JPP) | 2024.09 - |
2ZRFXE..ZWE21#
|
153460 |
| COROLLA SED (JPP) | 2022.09 - 2024.09 |
2ZRFXE..ZWE219
|
153260 |
| COROLLA SED (JPP) | 2022.09 - 2024.09 |
2ZRFXE..ZWE21#
|
153460 |
| COROLLA SED (JPP) | 2020.04 - 2022.08 |
2ZRFXE..ZWE21#
|
153260 |
| COROLLA SED (JPP) | 2020.04 - 2022.08 |
2ZRFXE..ZWE21#
|
153460 |
| C-HR | 2019.09 - |
2ZRFXE..ZYX1#
(J)
|
528510 |
| PRIUS PRIME(PHV) | 2019.05 - 2022.11 |
2ZRFXE..ZVW52
|
224430 |
| COROLLA SED (JPP) | 2019.01 - 2020.04 |
2ZRFXE..ZWE211
|
153260 |
| COROLLA SED (JPP) | 2019.01 - 2020.04 |
2ZRFXE..ZWE211
|
153460 |
| PRIUS | 2018.12 - 2022.11 |
2ZRFXE..ZVW5#
|
222440 |
| C-HR | 2016.10 - 2019.09 |
2ZRFXE..ZYX10
(J)
|
528510 |
| PRIUS PRIME(PHV) | 2016.09 - 2019.04 |
2ZRFXE..ZVW52
|
224430 |
| PRIUS | 2015.11 - 2018.12 |
2ZRFXE..ZVW5#
|
222440 |
| PRIUS V | 2014.11 - 2018.11 |
2ZRFXE..ZVW41
*119
|
225410 |
| LEXUS CT200H | 2013.12 - 2021.08 |
2ZRFXE..ZWA10
|
232410 |
| PRIUS(PLUG-IN HBD) | 2012.01 - 2015.06 |
2ZRFXE..ZVW35
|
224420 |
| PRIUS | 2011.12 - 2015.11 |
2ZRFXE..ZVW30
|
222430 |
| PRIUS V | 2011.09 - 2014.11 |
2ZRFXE..ZVW41
|
225410 |
| LEXUS CT200H | 2010.12 - 2013.12 |
2ZRFXE..ZWA10
|
232410 |
| PRIUS(PLUG-IN HBD) | 2009.12 - 2010.10 |
2ZRFXE..ZVW35
|
224410 |
| PRIUS | 2009.04 - 2011.12 |
2ZRFXE..ZVW30
|
222430 |
Related Parts
| Part Number | Reference |
|---|---|
| 22030-24010 | BODY ASSY, THROTTLE W/MOTOR |
| 22030-37040 | BODY ASSY, THROTTLE |
| 22271-24010 | GASKET, THROTTLE BODY |
| 22271-37020 | GASKET, THROTTLE BODY |
| 22271-75031 | GASKET, THROTTLE BODY |
| 222A0-37024 | CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT |
| 222A0-37025 | CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT |
| 222A2-37011 | CLIP, VALVE LIFT CONTROL ACTUATOR CONNECTOR |
| 23101-25040 | PUMP ASSY, FUEL |
| 23191-25050 | FLANGE, FUEL PUMP |
| 23209-24010-01 | INJECTOR ASSY, FUEL(FOR DIRECT) |
| 23209-24010-02 | INJECTOR ASSY, FUEL(FOR DIRECT) |
Toyota part number 22030-37060 corresponds to BODY ASSY, THROTTLE. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
