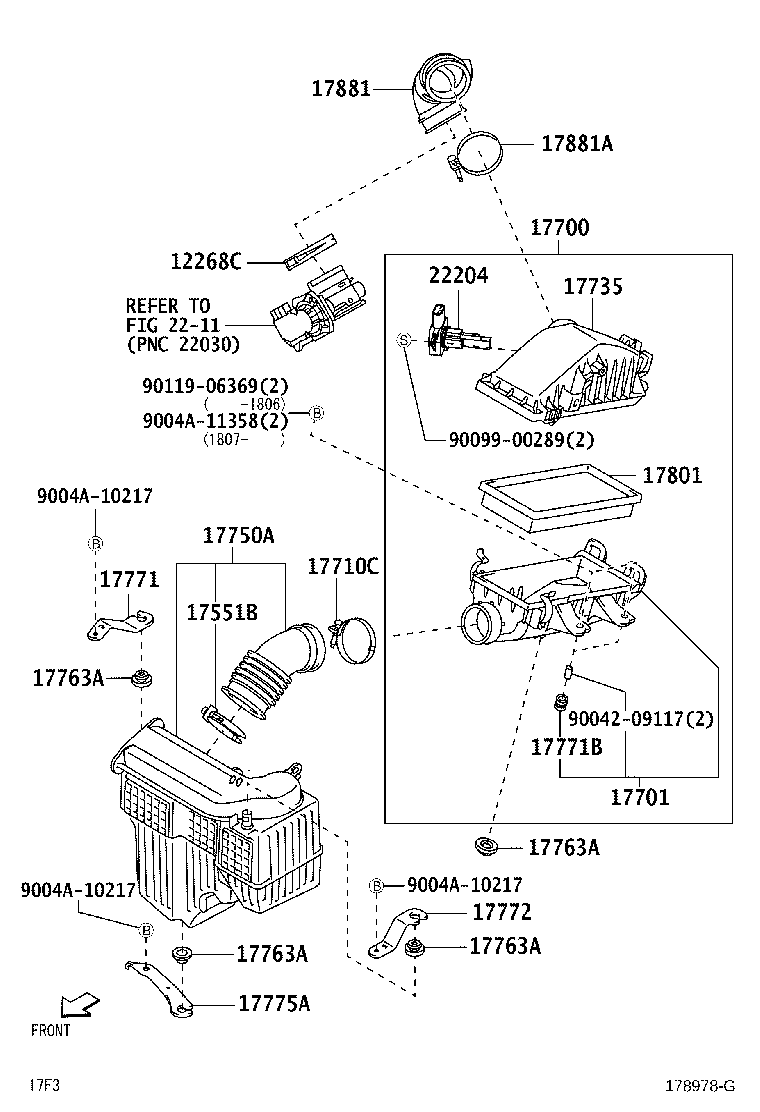

Toyota 17701-BZ160 CASE SUB-ASSY, AIR CLEANER
17701-BZ160
Part overview:
OEM reference 17701-BZ160 for CASE SUB-ASSY, AIR CLEANER.
This page currently lists 3 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 17701 |
| Manufacturer Part Number | 17701-BZ160 |
| Part Description | CASE SUB-ASSY, AIR CLEANER |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 17701-BZ160 |
| Catalog | 613220 |
| PNC | 17701 |
| PNC Group | CASE SUB-ASSY, AIR CLEANER |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| AVANZA | 2019.01 - 2021.10 |
1NRVE,2NRVE..F65#..(MID,SPO)..IDN
|
613220 |
| AVANZA | 2019.01 - |
2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..
(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)
|
613220 |
| AVANZA | 2015.07 - 2019.04 |
1NRVE,2NRVE..F653,654
|
613220 |
Related Parts
| Part Number | Reference |
|---|---|
| 17700-BZ071 | CLEANER ASSY, AIR |
| 17700-BZ170 | CLEANER ASSY, AIR |
| 17700-BZ190 | CLEANER ASSY, AIR |
| 17705-BZ071 | CAP SUB-ASSY, AIR CLEANER |
| 17735-BZ030 | CAP, AIR CLEANER |
| 17750-BZ010 | INLET ASSY, AIR CLEANER |
| 17771-BZ080 | BRACKET, AIR CLEANER INLET DUCT |
| 17771-BZ090 | BRACKET, AIR CLEANER |
| 17772-BZ030 | BRACKET, INTAKE AIR CONNECTOR, NO.2 |
| 17775-BZ020 | BRACKET, AIR CLEANER PIPE, NO.3 |
| 17801-BZ050 | ELEMENT SUB-ASSY, AIR CLEANER FILTER |
| 17801-BZ120 | ELEMENT SUB-ASSY, AIR CLEANER FILTER |
Toyota part number 17701-BZ160 corresponds to CASE SUB-ASSY, AIR CLEANER. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
