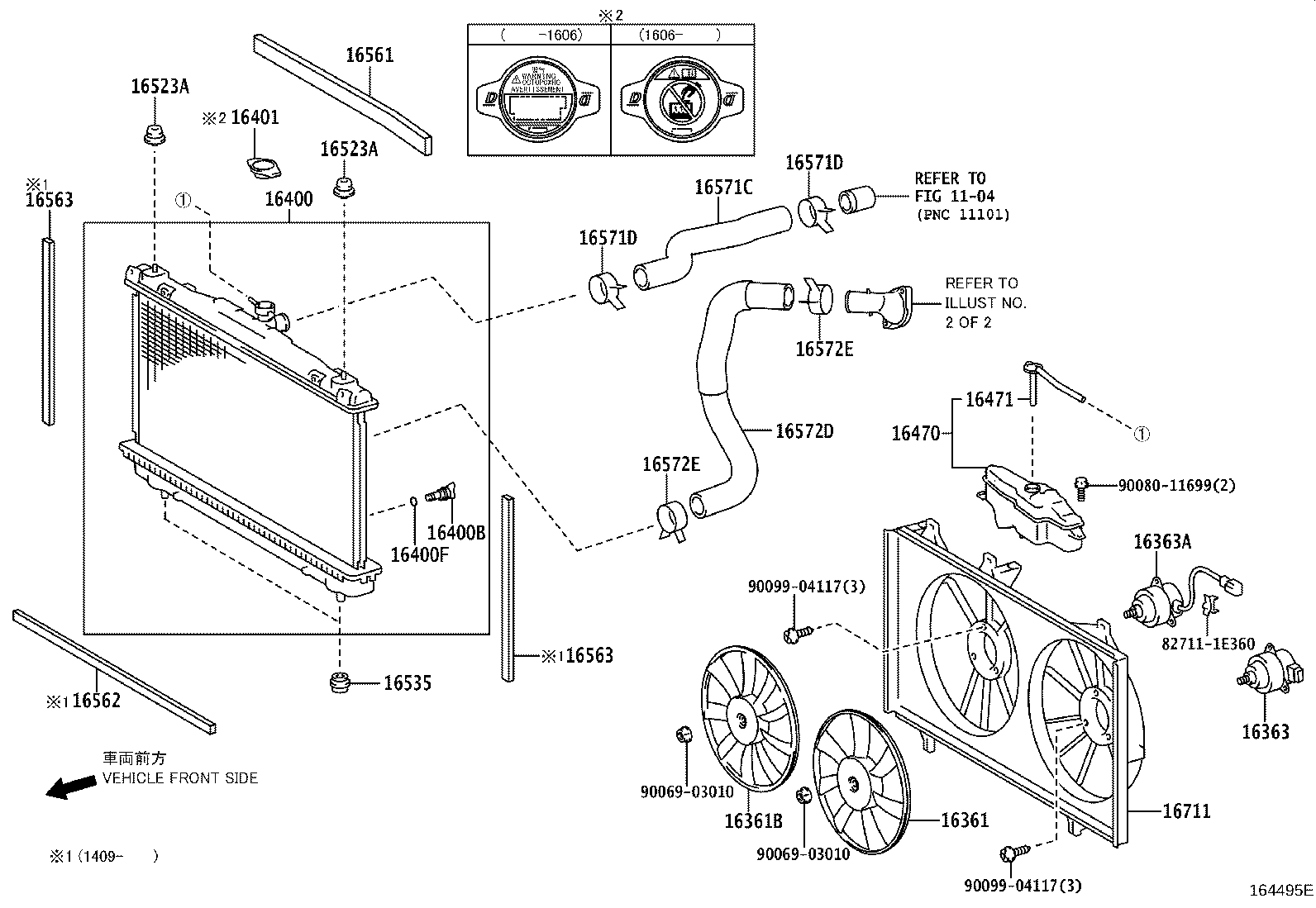

Toyota 16400-0V110 RADIATOR ASSY
16400-0V110
Part overview:
OEM reference 16400-0V110 for RADIATOR ASSY.
This page currently lists 4 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 16400 |
| Manufacturer Part Number | 16400-0V110 |
| Part Description | RADIATOR ASSY |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 16400-0V110 |
| Catalog | 283490 |
| PNC | 16400 |
| PNC Group | RADIATOR ASSY |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| CAMRY/HYBRID | 2014.09 - |
2ARFE..ASV50
|
283490 |
| CAMRY | 2014.09 - |
2ARFE..ASV50
|
28A410 |
| CAMRY/HYBRID | 2011.09 - 2014.09 |
2ARFE..ASV50
|
283490 |
| CAMRY | 2011.09 - 2014.09 |
2ARFE..ASV50
|
28A410 |
Related Parts
| Part Number | Reference |
|---|---|
| 16031-36010 | WATER INLET SUB-ASSY, W/THERMOSTAT |
| 16032-0V011 | HOUSING, WATER INLET |
| 16032-36011 | HOUSING, WATER INLET |
| 16032-36050 | HOUSING, WATER INLET |
| 16258-0H010 | GASKET(FOR WATER BY-PASS PIPE) |
| 16258-36010 | GASKET(FOR WATER BY-PASS PIPE) |
| 16258-36020 | GASKET(FOR WATER BY-PASS PIPE) |
| 16258-36100 | GASKET(FOR WATER BY-PASS PIPE) |
| 16261-0P030 | HOSE, WATER BY-PASS |
| 16261-0V020 | HOSE, WATER BY-PASS |
| 16261-36010 | HOSE, WATER BY-PASS |
| 16261-36040 | HOSE, WATER BY-PASS, NO.1 |
Toyota part number 16400-0V110 corresponds to RADIATOR ASSY. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
