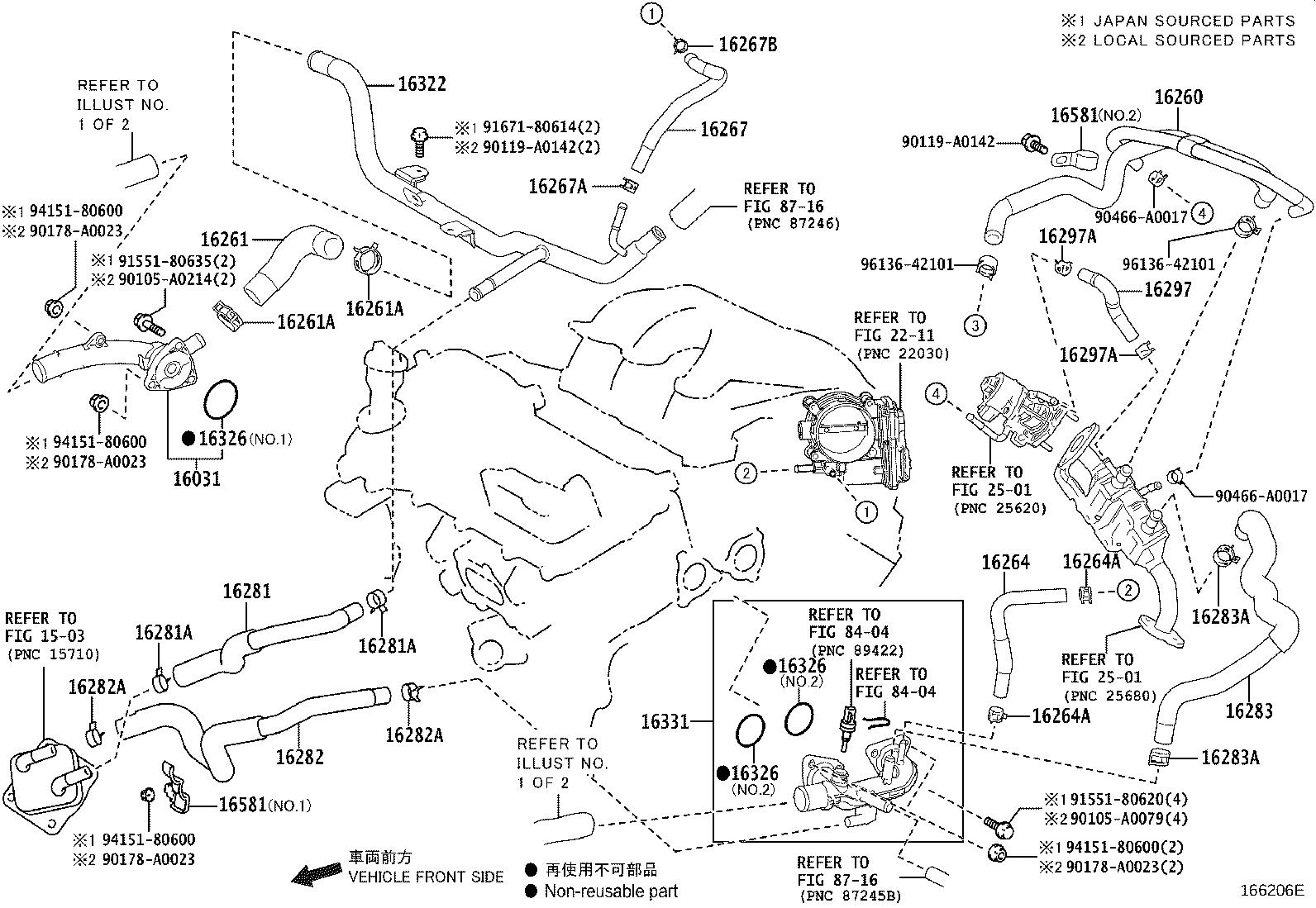

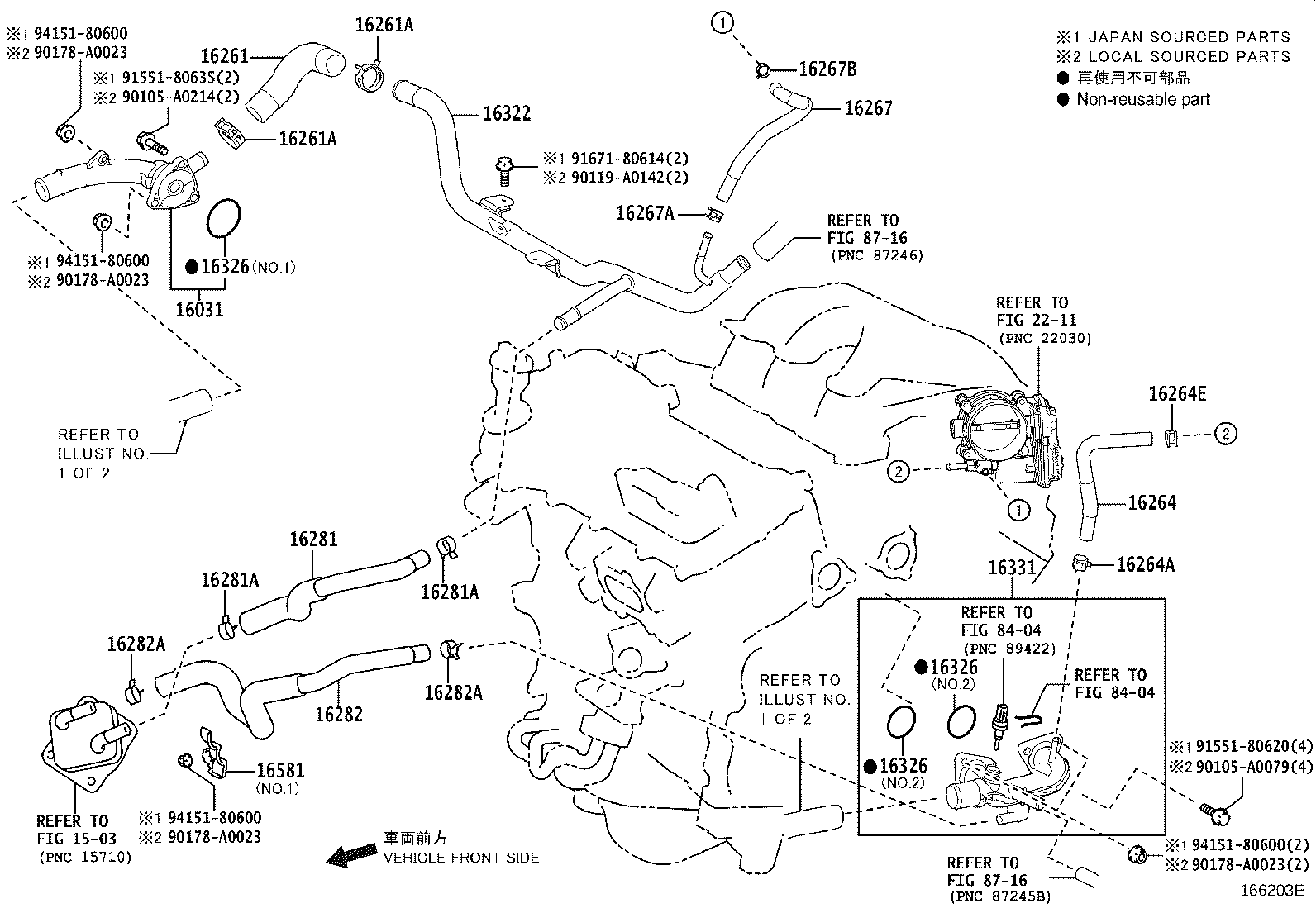

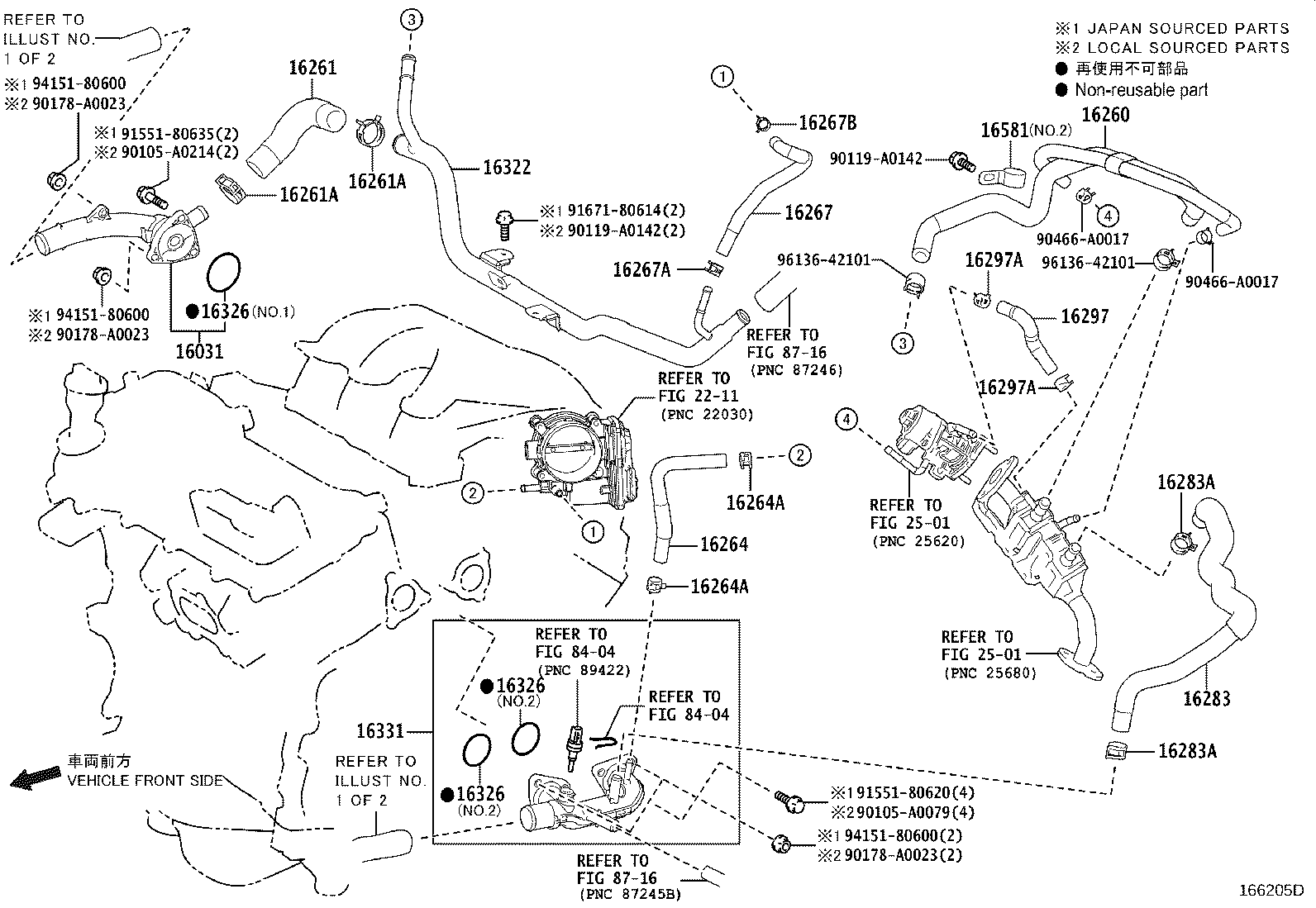

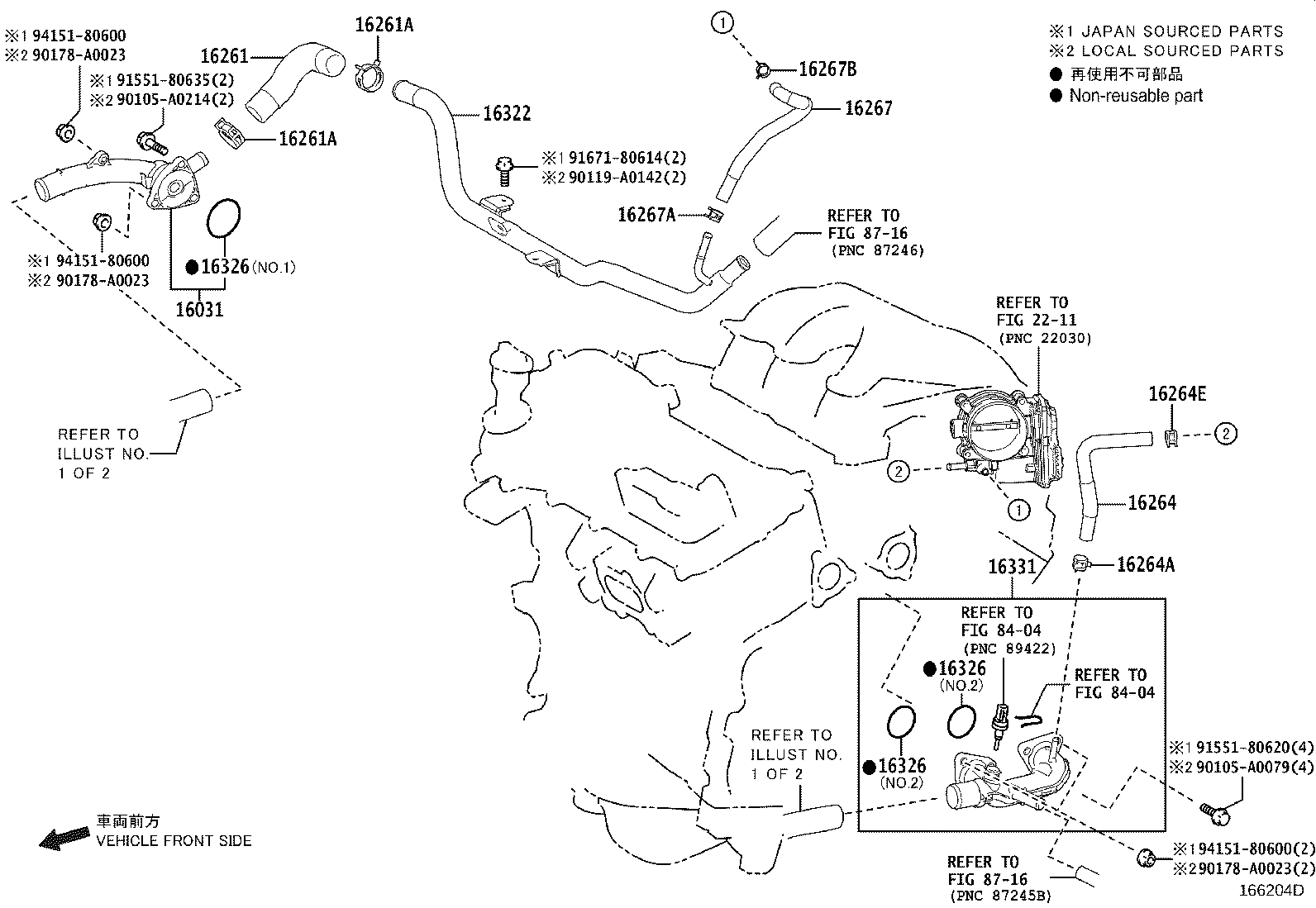

Toyota 16282-0P030 HOSE, WATER BY-PASS, NO.5
16282-0P030
Part overview:
OEM reference 16282-0P030 for HOSE, WATER BY-PASS, NO.5.
This page currently lists 6 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 16282 |
| Manufacturer Part Number | 16282-0P030 |
| Part Description | HOSE, WATER BY-PASS, NO.5 |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 16282-0P030 |
| Catalog | 523430 |
| PNC | 16282 |
| PNC Group | HOSE, WATER BY-PASS, NO.5 |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| HIGHLANDER | 2019.12 - 2022.10 |
2GRFKS..GSU7#
|
526430 |
| LEXUS RX450H/350(NAP | 2019.09 - |
2GRFKS..GGL2#
TOWING PACKAGE-3500LBS,(L)
|
523430 |
| SIENNA | 2017.11 - 2020.09 |
2GRFKS..GSL30,35
TOWING PACKAGE-FOR 3500LBS
|
622430 |
| HIGHLANDER (NAP) | 2016.11 - |
2GRFKS..GSU5#
|
526420 |
| SIENNA | 2016.08 - 2017.11 |
2GRFKS..GSL30;2GRFKS..GSL35..LE
TOWING PACKAGE-FOR 3500LBS
|
622430 |
| LEXUS RX450H/350(NAP | 2015.10 - 2019.09 |
2GRFKS..GGL2#
TOWING PACKAGE-3500LBS,(L)
|
523430 |
Related Parts
| Part Number | Reference |
|---|---|
| 16031-31030 | WATER INLET SUB-ASSY, W/THERMOSTAT |
| 16031-31031 | WATER INLET SUB-ASSY, W/THERMOSTAT |
| 16031-31040 | WATER INLET SUB-ASSY, W/THERMOSTAT |
| 16260-31060 | HOSE ASSY, WATER BY-PASS |
| 16261-0P020 | HOSE, WATER BY-PASS |
| 16261-31060 | HOSE, WATER BY-PASS |
| 16261-31061 | HOSE, WATER BY-PASS |
| 16264-0P020 | HOSE, WATER BY-PASS, NO.2 |
| 16264-31160 | HOSE, WATER BY-PASS, NO.2 |
| 16267-0P050 | HOSE, WATER BY-PASS, NO.3 |
| 16281-0P080 | HOSE, WATER BY-PASS, NO.4 |
| 16281-31100 | HOSE, WATER BY-PASS, NO.4 |
Toyota part number 16282-0P030 corresponds to HOSE, WATER BY-PASS, NO.5. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
