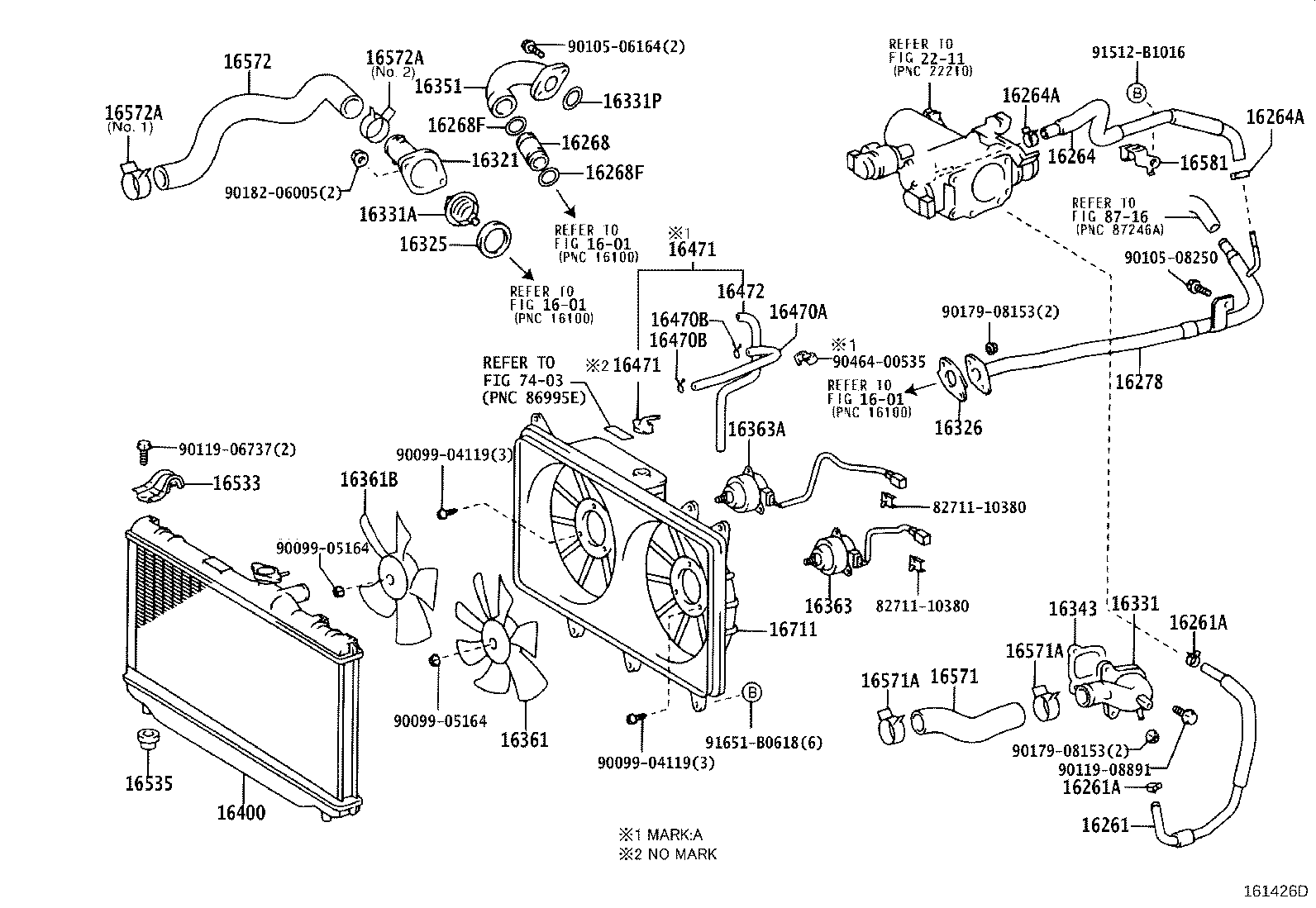

Toyota 16261-46020 HOSE, WATER BY-PASS
16261-46020
Part overview:
OEM reference 16261-46020 for HOSE, WATER BY-PASS.
This page currently lists 7 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 16261 |
| Manufacturer Part Number | 16261-46020 |
| Part Description | HOSE, WATER BY-PASS |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 16261-46020 |
| Catalog | 242410 |
| PNC | 16261 |
| PNC Group | HOSE, WATER BY-PASS |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LEXUS IS300 | 2001.07 - |
2JZGE..JCE10
|
242410 |
| LEXUS IS300 | 2000.05 - 2001.07 |
2JZGE..JCE10
|
242410 |
| LEXUS GS300/400/430 | 1997.08 - 2005.01 |
2JZGE..JZS160
|
332490 |
| LEXUS GS300 | 1993.11 - 1997.08 |
2JZGE..JZS147
|
332480 |
| SUPRA | 1993.05 - 1997.09 |
2JZGE..JZA80
|
291430 |
| LEXUS GS300 | 1993.01 - 1993.10 |
2JZGE..JZS147
|
332480 |
| LEXUS SC300/400 | 1991.08 - 2000.07 |
2JZGE..JZZ31
|
321440 |
Related Parts
| Part Number | Reference |
|---|---|
| 16264-46041 | HOSE, WATER BY-PASS, NO.2 |
| 16268-46011 | PIPE, WATER BY-PASS, NO.1 |
| 16278-46051 | PIPE, WATER BY-PASS, NO.2 |
| 16321-46040 | INLET, WATER |
| 16325-46010 | GASKET, WATER INLET HOUSING, NO.2 |
| 16325-62010 | GASKET, WATER INLET HOUSING, NO.1 |
| 16331-46100 | OUTLET, WATER |
| 16343-46020 | GASKET, WATER OUTLET HOUSING |
| 16351-46022 | OUTLET, WATER BY-PASS |
| 16361-46080 | FAN |
| 16361-46090 | FAN, NO.2 |
| 16363-46050 | MOTOR, COOLING FAN |
Toyota part number 16261-46020 corresponds to HOSE, WATER BY-PASS. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
