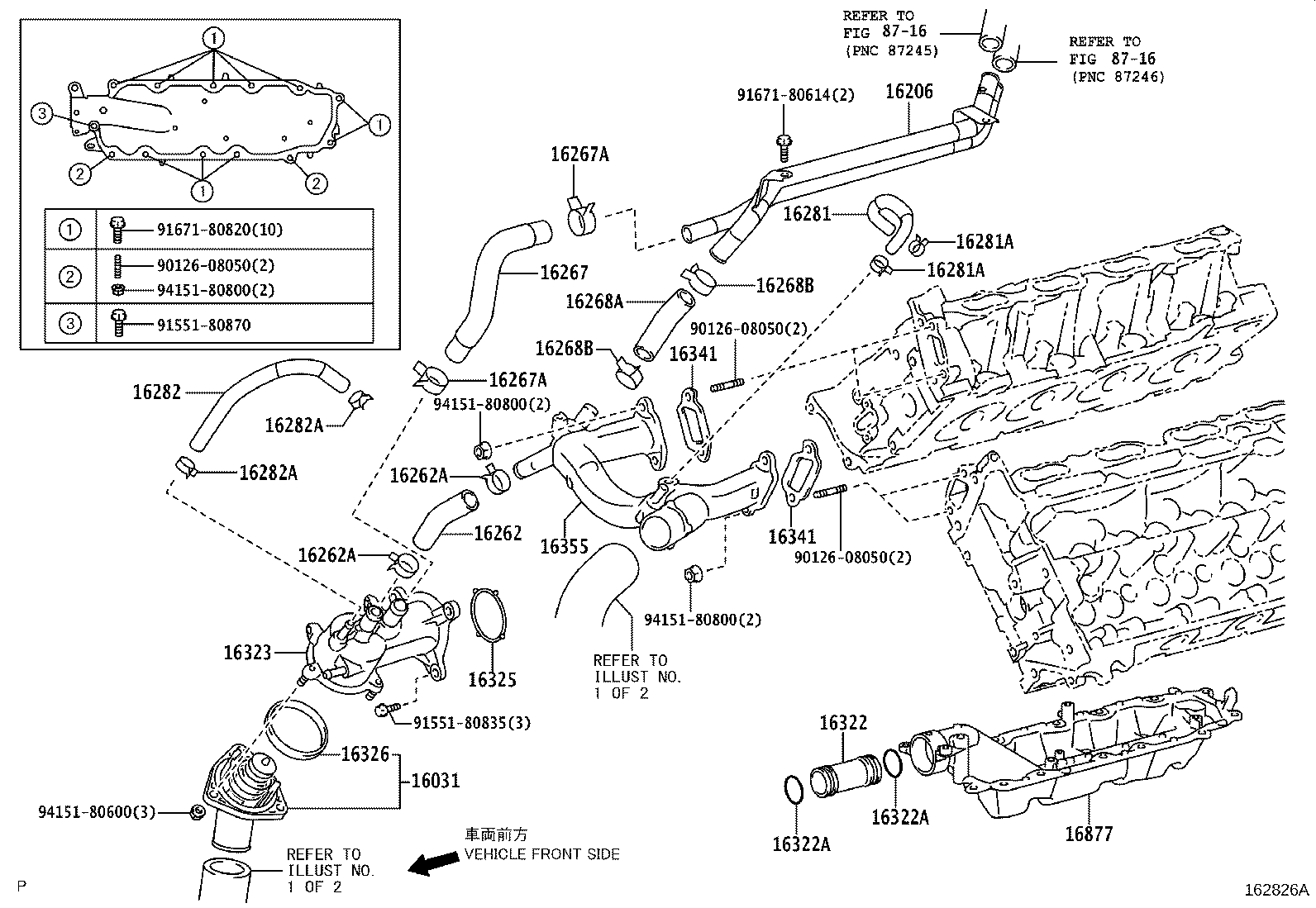

Toyota 16206-38020 PIPE SUB-ASSY, WATER BY-PASS
16206-38020
Part overview:
OEM reference 16206-38020 for PIPE SUB-ASSY, WATER BY-PASS.
This page currently lists 2 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 16206 |
| Manufacturer Part Number | 16206-38020 |
| Part Description | PIPE SUB-ASSY, WATER BY-PASS |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 16206-38020 |
| Catalog | 431440 |
| PNC | 16206 |
| PNC Group | PIPE SUB-ASSY, WATER BY-PASS |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LEXUS LS600HL | 2007.04 - 2007.08 |
2URFSE..UVF46
|
432410 |
| LEXUS LS460/460L | 2006.08 - 2007.08 |
1URFSE..USF4#
|
431440 |
Related Parts
| Part Number | Reference |
|---|---|
| 16031-38010 | WATER INLET SUB-ASSY, W/THERMOSTAT |
| 16206-38021 | PIPE SUB-ASSY, WATER BY-PASS |
| 16267-38030 | HOSE, WATER BY-PASS, NO.3 |
| 16281-38020 | HOSE, WATER BY-PASS, NO.4 |
| 16281-38040 | HOSE, WATER BY-PASS, NO.4 |
| 16282-38020 | HOSE, WATER BY-PASS, NO.5 |
| 16282-38040 | HOSE, WATER BY-PASS, NO.5 |
| 16322-38010 | PIPE, WATER INLET |
| 16323-38030 | HOUSING, WATER INLET |
| 16325-38020 | GASKET, WATER INLET HOUSING, NO.1 |
| 16326-38010 | GASKET, WATER INLET HOUSING, NO.2 |
| 16341-38030 | GASKET, WATER OUTLET |
Toyota part number 16206-38020 corresponds to PIPE SUB-ASSY, WATER BY-PASS. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
