🔍 Click image to enlarge

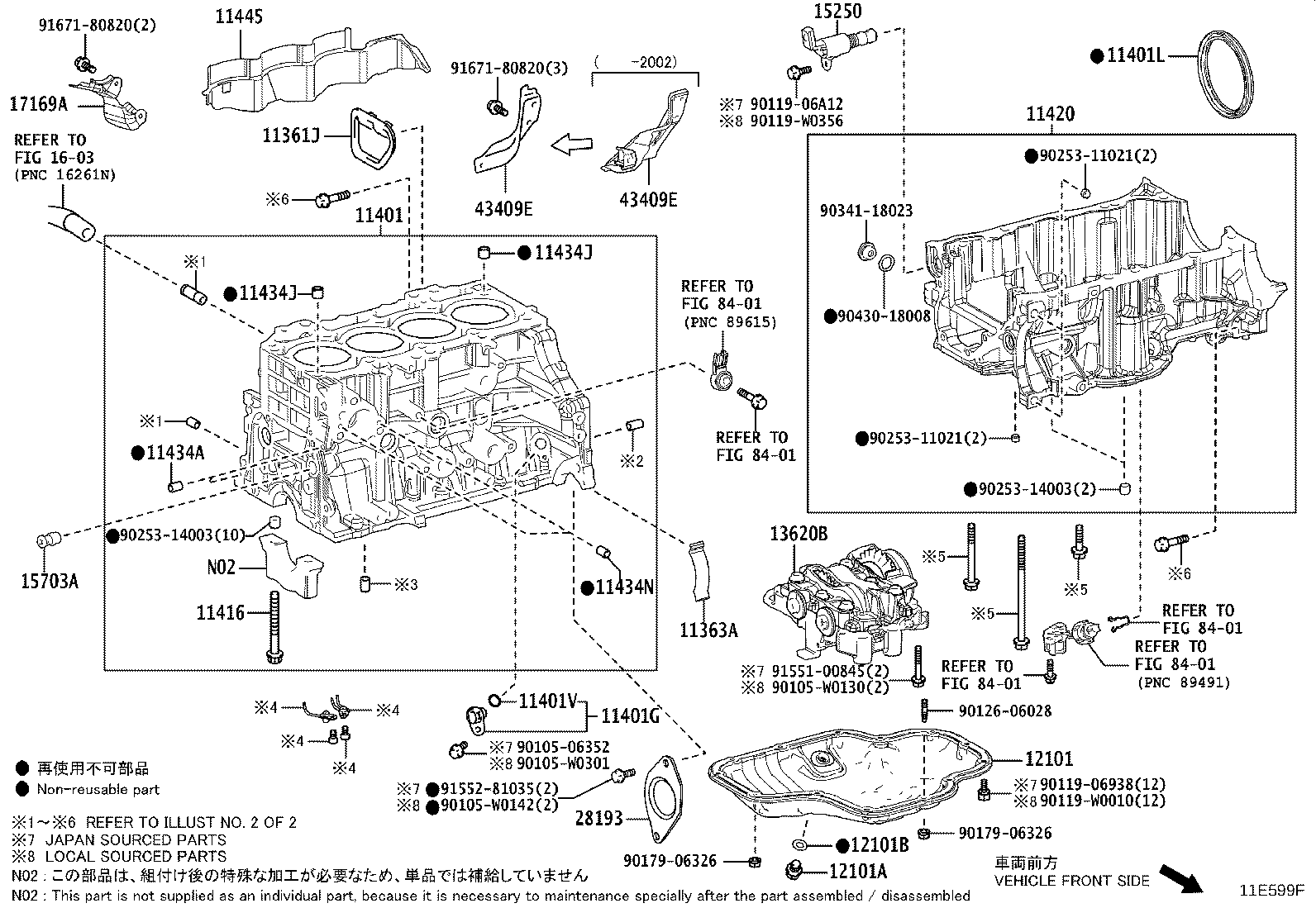

Toyota 15708-47070 NOZZLE SUB-ASSY, OIL, NO.1
15708-47070
Part overview:
OEM reference 15708-47070 for NOZZLE SUB-ASSY, OIL, NO.1.
This page currently lists 3 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 15708 |
| Manufacturer Part Number | 15708-47070 |
| Part Description | NOZZLE SUB-ASSY, OIL, NO.1 |
| Condition | New |
| Quantity Per Vehicle | 4 |
| SKU | 15708-47070 |
| Catalog | 528510 |
| PNC | 15708 |
| PNC Group | NOZZLE SUB-ASSY, OIL, NO.1 |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| C-HR | 2019.09 - 2021.12 |
8NRFTS..NGX10..RUS
|
528510 |
| C-HR | 2019.09 - |
8NRFTS..NGX50;8NRFTS..NGX10..EUR
|
528510 |
| C-HR | 2016.10 - 2019.09 |
8NRFTS..NGX10,50
|
528510 |
Related Parts
| Part Number | Reference |
|---|---|
| 11361-21011 | COVER, FLYWHEEL HOUSING UNDER |
| 11361-25010 | COVER, FLYWHEEL HOUSING UNDER |
| 11363-33010 | COVER, FLYWHEEL HOUSING SIDE |
| 11410-09770 | BLOCK SUB-ASSY, CYLINDER |
| 11410-09771 | BLOCK SUB-ASSY, CYLINDER |
| 11410-09840 | BLOCK SUB-ASSY, CYLINDER |
| 11410-29675 | BLOCK SUB-ASSY, CYLINDER |
| 11410-39036 | BLOCK SUB-ASSY, CYLINDER |
| 11410-39037 | BLOCK SUB-ASSY, CYLINDER |
| 11410-39038 | BLOCK SUB-ASSY, CYLINDER |
| 11410-39225 | BLOCK SUB-ASSY, CYLINDER |
| 11410-39226 | BLOCK SUB-ASSY, CYLINDER |
Toyota part number 15708-47070 corresponds to NOZZLE SUB-ASSY, OIL, NO.1. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
