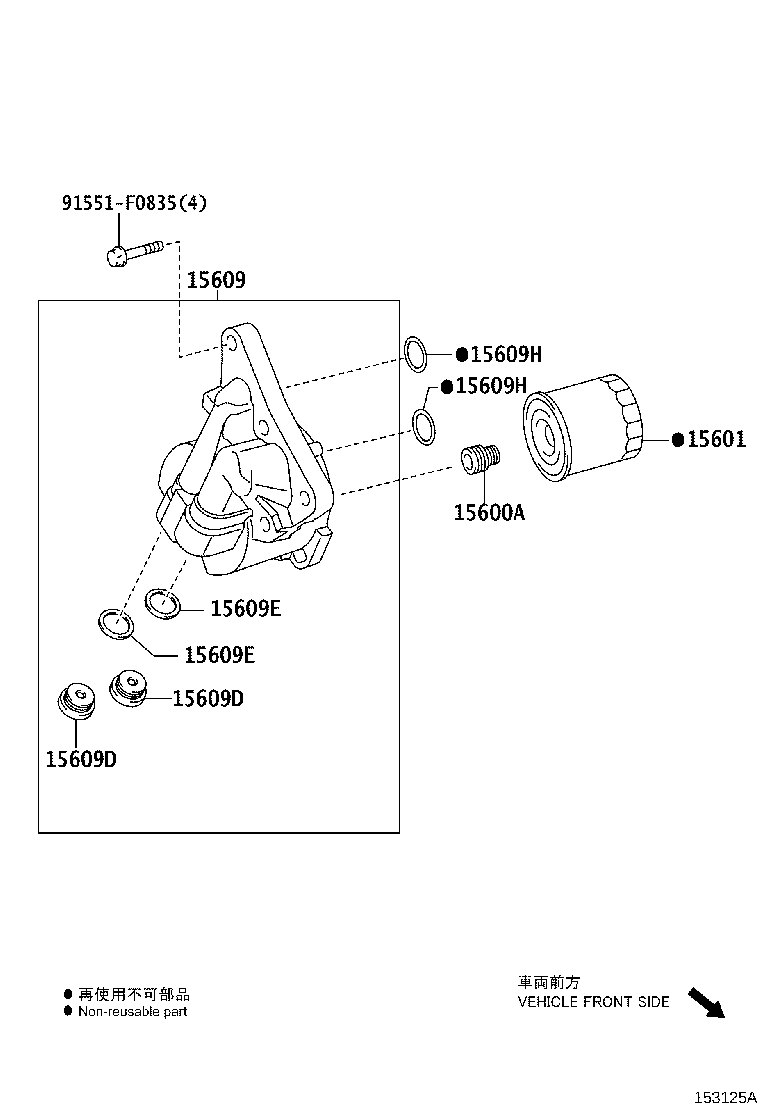

Toyota 15609-37060 BRACKET SUB-ASSY, OIL FILTER
15609-37060
Part overview:
OEM reference 15609-37060 for BRACKET SUB-ASSY, OIL FILTER.
This page currently lists 23 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 15609 |
| Manufacturer Part Number | 15609-37060 |
| Part Description | BRACKET SUB-ASSY, OIL FILTER |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 15609-37060 |
| Catalog | 152280 |
| PNC | 15609 |
| PNC Group | BRACKET SUB-ASSY, OIL FILTER |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| COROLLA (MEXICO) | 2020.07 - |
2ZRFAE..ZRE212
(J)
|
152280 |
| COROLLA SED (NAP) | 2020.07 - |
2ZRFAE..ZRE212
(J)
|
152480 |
| COROLLA SED (JPP) | 2020.04 - 2022.08 |
2ZR#..ZRE212,ZWE21#
|
153260 |
| COROLLA SED (JPP) | 2020.04 - 2022.08 |
2ZR#..ZRE212,ZWE21#
|
153460 |
| C-HR (JPP) | 2019.10 - 2022.12 |
3ZRFAE..ZGX10
CARTRIGE TYPE
|
529410 |
| C-HR (TUP) | 2019.09 - 2022.10 |
3ZRFAE..ZGX10
(J),CARTRIGE TYPE
|
528410 |
| C-HR | 2019.09 - |
2ZRFXE,3ZRFAE..ZGX10,ZYX1#
(J),CARTRIGE TYPE
|
528510 |
| PRIUS PRIME(PHV) | 2019.05 - |
2ZRFXE..ZVW52
CARTRIGE TYPE
|
224430 |
| COROLLA (MEXICO) | 2019.03 - 2020.07 |
2ZRFAE..ZRE212
(J)
|
152280 |
| COROLLA SED (NAP) | 2019.03 - 2020.07 |
2ZRFAE..ZRE212
(J)
|
152480 |
| COROLLA SED (JPP) | 2019.01 - 2020.04 |
2ZR#..ZRE212,ZWE211
|
153260 |
| COROLLA SED (JPP) | 2019.01 - 2020.04 |
2ZR#..ZRE212,ZWE211
|
153460 |
| PRIUS | 2018.12 - |
2ZRFXE..ZVW5#
CARTRIGE TYPE
|
222440 |
| C-HR | 2018.07 - 2019.09 |
2ZRFXE..ZYX10
(J),CARTRIGE TYPE
|
528510 |
| C-HR (JPP) | 2018.01 - 2019.10 |
3ZRFAE..ZGX10
CARTRIGE TYPE
|
529410 |
| C-HR | 2018.01 - 2019.09 |
2ZRFXE..ZYX10
CARTRIGE TYPE
|
528510 |
| LEXUS CT200H | 2017.09 - 2021.08 |
2ZRFXE..ZWA10
CARTRIGE TYPE
|
232410 |
| C-HR (TUP) | 2017.09 - 2019.09 |
3ZRFAE..ZGX10
CARTRIGE TYPE
|
528410 |
| C-HR | 2017.09 - 2019.09 |
3ZRFAE..ZGX10
CARTRIGE TYPE
|
528510 |
| PRIUS PRIME(PHV) | 2017.09 - 2019.04 |
2ZRFXE..ZVW52
CARTRIGE TYPE
|
224430 |
| PRIUS | 2017.09 - 2018.12 |
2ZRFXE..ZVW5#
CARTRIGE TYPE
|
222440 |
| PRIUS V | 2017.09 - 2018.11 |
2ZRFXE..ZVW41
CARTRIGE TYPE
|
225410 |
| SCION IM/IM | 2017.09 - 2018.05 |
2ZRFAE..ZRE186
CARTRIGE TYPE
|
165420 |
Related Parts
| Part Number | Reference |
|---|---|
| 15609-0T070 | BRACKET SUB-ASSY, OIL FILTER |
| 90301-A0034 | RING, O(FOR OIL FILTER BRACKET) |
| 90341-20002 | PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) |
| 90341-A0008 | PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) |
| 90430-20004 | GASKET, W/HEAD STRAIGHT SCREW PLUG |
| 90430-20018 | GASKET, W/HEAD STRAIGHT SCREW PLUG |
| 90904-04006 | UNION(FOR OIL FILTER) |
| 90915-10003 | FILTER SUB-ASSY, OIL |
| 90915-10009 | FILTER SUB-ASSY, OIL |
| 96723-24020 | RING, O(FOR OIL FILTER BRACKET) |
Toyota part number 15609-37060 corresponds to BRACKET SUB-ASSY, OIL FILTER. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
