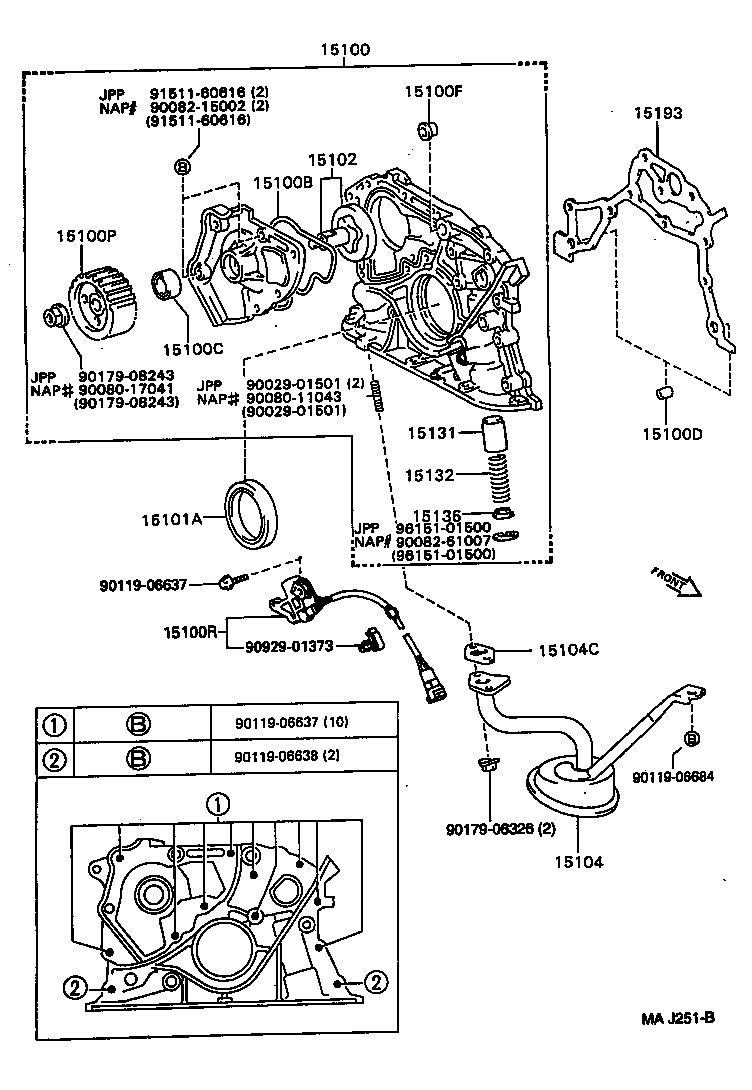

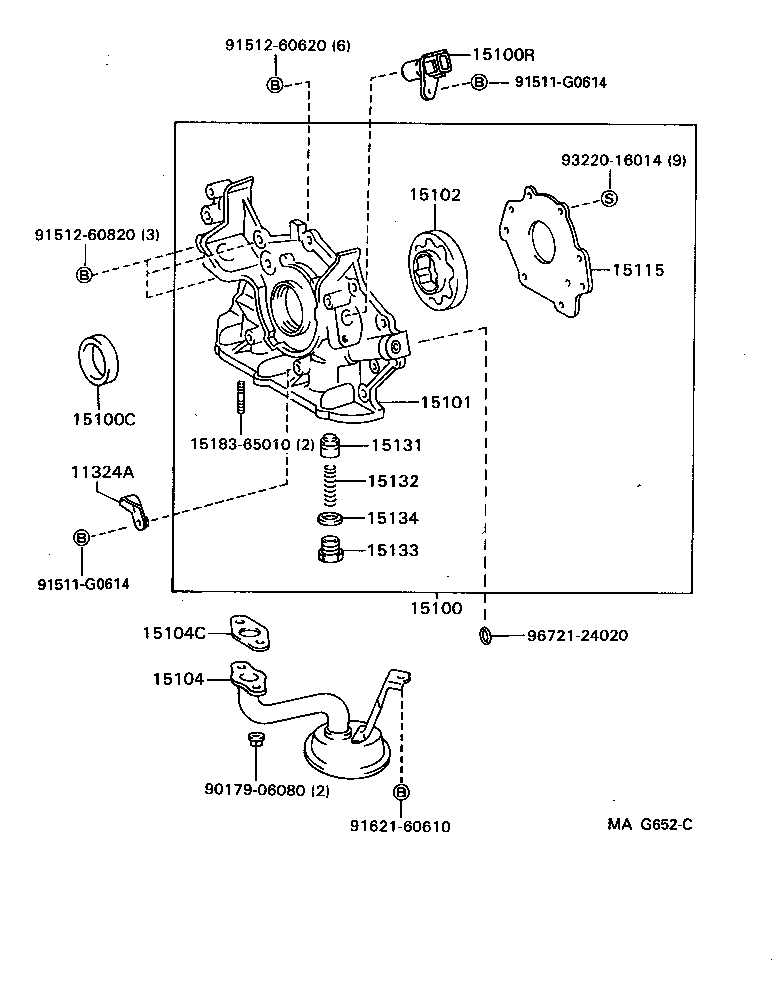

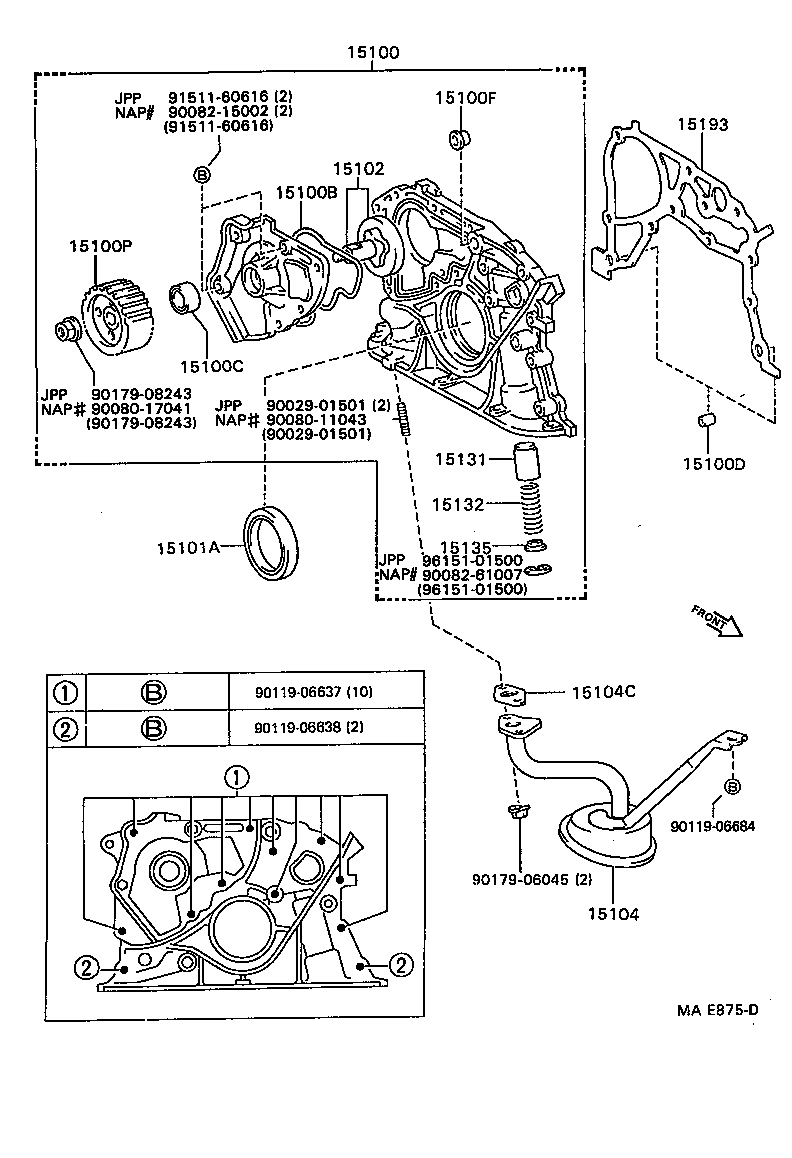

Toyota 15102-03020 ROTOR SET, OIL PUMP
15102-03020
Part overview:
OEM reference 15102-03020 for ROTOR SET, OIL PUMP.
This page currently lists 3 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 15102 |
| Manufacturer Part Number | 15102-03020 |
| Part Description | ROTOR SET, OIL PUMP |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 15102-03020 |
| Catalog | 283450 |
| PNC | 15102 |
| PNC Group | ROTOR SET, OIL PUMP |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| SOLARA | 1998.06 - 2001.07 |
5SFE..SXV20
(L)
|
286410 |
| CAMRY (NAP) | 1996.07 - |
5SFE..SXV20..NAP
(L)
|
283460 |
| CAMRY (NAP) | 1991.09 - 1996.07 |
5SFE..SXV10..NAP
(L)
|
283450 |
Related Parts
| Part Number | Reference |
|---|---|
| 11324-20010 | PLATE, TIMING BELT |
| 13524-03020 | PULLEY, OIL PUMP DRIVE SHAFT |
| 13524-74020 | PULLEY, OIL PUMP DRIVE SHAFT |
| 15100-03020 | PUMP ASSY, OIL |
| 15100-03030 | PUMP ASSY, OIL |
| 15100-0A010 | PUMP ASSY, OIL |
| 15100-20020 | PUMP ASSY, OIL |
| 15100-62030 | PUMP ASSY, OIL |
| 15100-74020 | PUMP ASSY, OIL |
| 15100-74030 | PUMP ASSY, OIL |
| 15101-0A010 | BODY SUB-ASSY, OIL PUMP |
| 15101-20020 | BODY SUB-ASSY, OIL PUMP |
Toyota part number 15102-03020 corresponds to ROTOR SET, OIL PUMP. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
