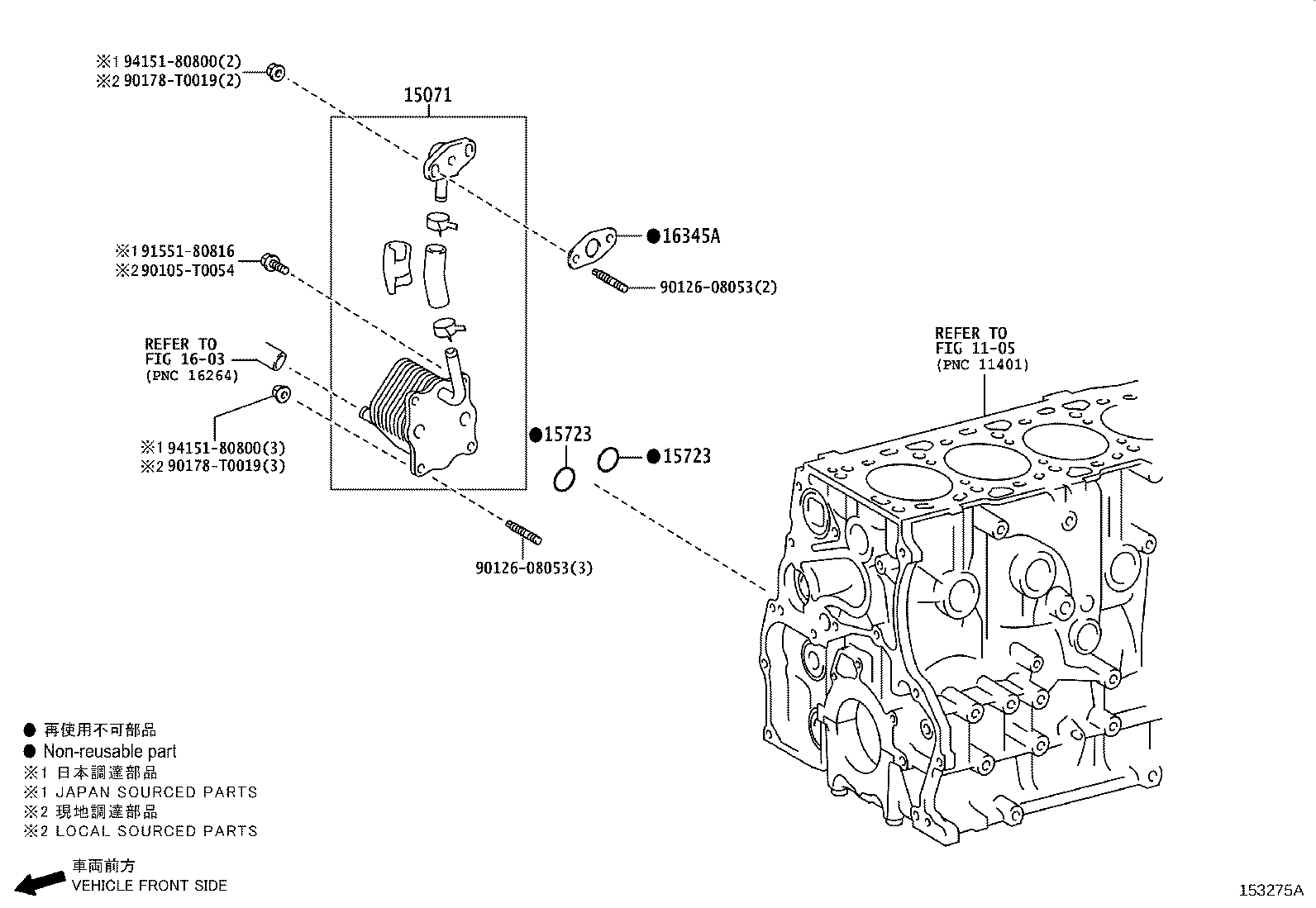

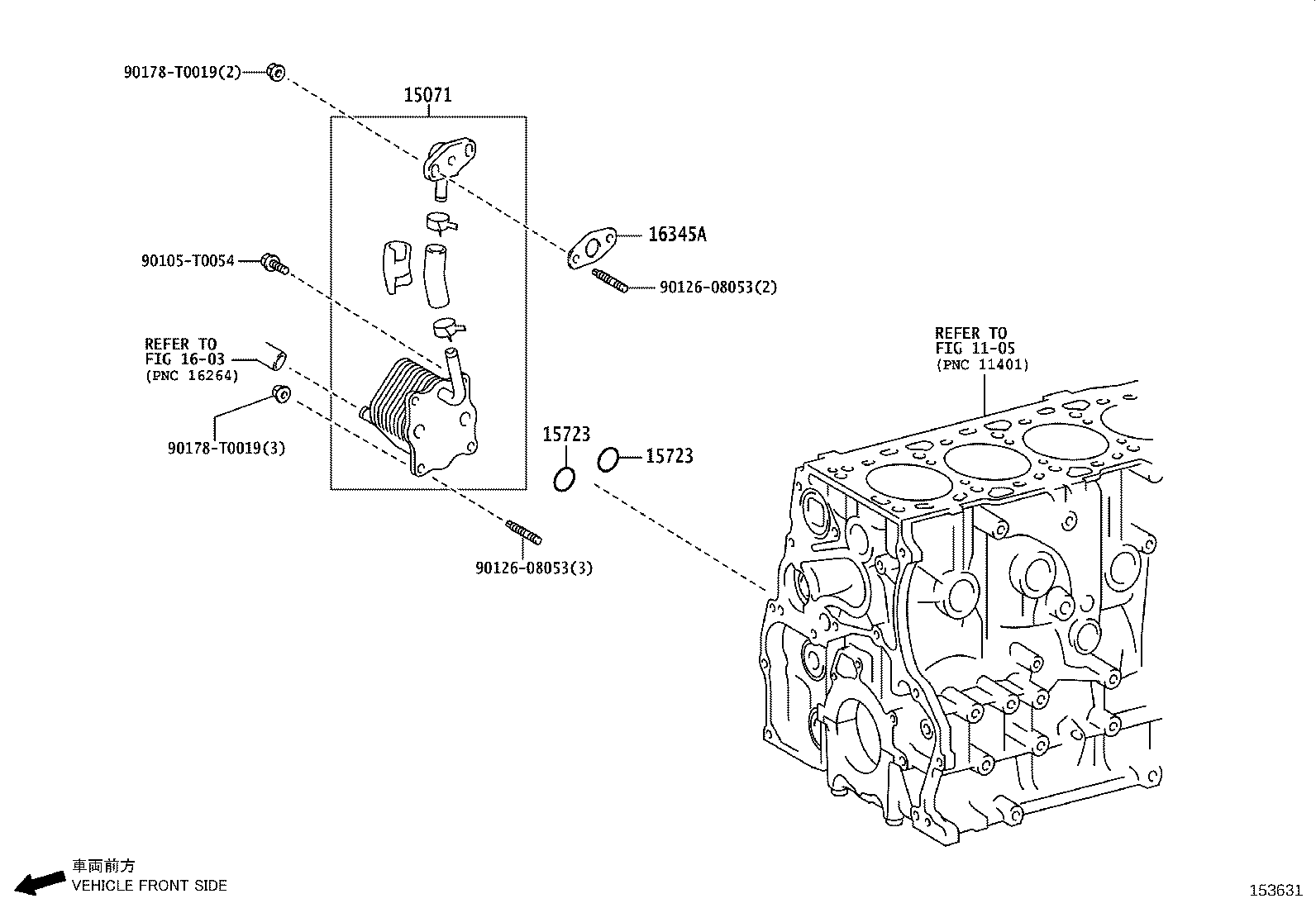

Toyota 15071-08010 COOLER SET, ENGINE OIL
15071-08010
Part overview:
OEM reference 15071-08010 for COOLER SET, ENGINE OIL.
This page currently lists 49 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 15071 |
| Manufacturer Part Number | 15071-08010 |
| Part Description | COOLER SET, ENGINE OIL |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 15071-08010 |
| Catalog | 6723A0 |
| PNC | 15071 |
| PNC Group | COOLER SET, ENGINE OIL |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| HILUX (DOUBLE CAB) | 2024.12 - |
1GDFTV..GUN126..IND
|
6733E0 |
| LAND CRUISER | 2024.10 - 2025.09 |
1GDFTV..GDJL7#..5F
1GDFTV..GDJ79..5F..STD..GCC
1GDFTV..GDJ76,78,79..RHD..5F..CBU
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
|
781370 |
| HILUX (DOUBLE CAB) | 2024.08 - 2024.11 |
1GDFTV..GUN136..6F..ARL;1GDFTV..GUN126..H..DCRL..IV3
|
6733E0 |
| HILUX (SCB/XTR) | 2024.08 - |
1GDFTV,2GDFTV..GUN11#,12#,13#..AGTP,KENP,MAP,SAP,THP
|
6723E0 |
| HILUX (DOUBLE CAB) | 2024.08 - |
1GDFTV..GUN136..6FC;1GDFTV..GUN136..6F..H;1GDFTV..GUN126..S..IV3;1GDFTV..GUN126..H
..MHV..IV3;1GDFTV,2GDFTV..GUN120,121,122,125,135;1GDFTV..GUN126..(AGTP,CAMP,GHAP,K
ENP,MAP,MMRP,SAP,THP)..CBU
|
6733E0 |
| GRNVA/HIACE/MJSTY | 2024.01 - |
1GDFTV..GDH320,322,328..AGT,BZ
|
711370 |
| LAND CRUISER | 2023.09 - |
1GDFTV..GDJ7#;1GDFTV..GDJL7#..6FC
|
781370 |
| HILUX (SCB/XTR) | 2023.08 - 2024.12 |
2GDFTV..GUN125,135..KEN
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.12 |
1GDFTV,2GDFTV..GUN125,126..GHA,KEN
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.10 |
1GDFTV,2GDFTV..GUN122,125,126,13#..AGTP,SAP
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.10 |
1GDFTV,2GDFTV..GUN122,125,126,13#..AGTP,SAP
|
6733D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.09 |
1GDFTV..GUN126..IND,MMR
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.08 |
2GDFTV..GUN125..MA
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.08 |
1GDFTV,2GDFTV..GUN125,126..CAMP,MAP
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.07 |
1GDFTV,2GDFTV..GUN11#,12#,13#..THP
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.07 |
1GDFTV..GUN126..MHV..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN12#,13#..THP..DCRL
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - |
1GDFTV,2GDFTV..GUN122,126..PKN
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - |
1GDFTV..GUN126..PKN
|
6733D0 |
| HILUX (SCB/XTR) | 2022.11 - 2023.05 |
1GDFTV,2GDFTV..GUN125,126..AGTP..LA
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.11 - 2023.05 |
1GDFTV..GUN126..AGTP..H..LA;2GDFTV..GUN125,135..AGTP..LA
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
|
6733C0 |
| HILUX (SCB/XTR) | 2022.10 - 2023.08 |
2GDFTV..GUN125..MA
(L)
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.10 - 2023.08 |
1GDFTV,2GDFTV..GUN125,126..MA
(L)
|
6733C0 |
| HILUX (SCB/XTR) | 2022.10 - 2023.07 |
2GDFTV..GUN125..THP..6F..CBU;1GDFTV,2GDFTV..GUN11#,120,121,122,126,135..THP..(GCC,
GEN,IDN,LA,PH,TH)
(L)
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.10 - 2023.07 |
2GDFTV..GUN125..THP..(H,S);2GDFTV..GUN125..6F..L..GEN;2GDFTV..GUN125..THP..L..(GCC
,IDN,LA,PH);1GDFTV,2GDFTV..GUN120,121,122,126,13#..THP..(GCC,GEN,LA,PH,TH,TWN,VN)
(L)
|
6733C0 |
| HILUX (SCB/XTR) | 2022.10 - 2023.03 |
1GDFTV,2GDFTV..GUN12#,13#..KEN,SA
(L)
|
6723B0 |
| HILUX (DOUBLE CAB) | 2022.10 - 2023.03 |
1GDFTV,2GDFTV..GUN12#,13#..GHA,KEN,SA
(L)
|
6733B0 |
| HILUX | 2022.10 - 2023.01 |
1GDFTV..GUN126
(L)
|
6723A0 |
| HILUX (SCB/XTR) | 2022.10 - 2023.01 |
1GDFTV,2GDFTV..GUN122,126..PKN
(L)
|
6723B0 |
| HILUX (DOUBLE CAB) | 2022.10 - 2023.01 |
1GDFTV..GUN126..PKN
(L)
|
6733B0 |
| GRNVA/HIACE/MJSTY | 2022.10 - |
1GDFTV..GDH322..TH
(L)
|
711370 |
| GRNVA/HIACE/MJSTY | 2022.09 - 2025.05 |
1GDFTV..GDH306;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..G
EN
(J)
|
711370 |
| GRNVA/HIACE/MJSTY | 2022.09 - 2024.04 |
1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D
(J)
|
711370 |
| HILUX (SCB/XTR) | 2022.09 - 2024.03 |
2GDFTV..GUN125,135..KEN
(L)
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.09 - 2024.03 |
1GDFTV,2GDFTV..GUN125,126..GHA,KEN
(L)
|
6733C0 |
| HILUX (SCB/XTR) | 2022.09 - 2024.01 |
1GDFTV,2GDFTV..GUN122,125,126,13#..SA
(L)
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.09 - 2024.01 |
1GDFTV,2GDFTV..GUN122,125,126,13#..SA
(L)
|
6733C0 |
| GRNVA/HIACE/MJSTY | 2022.09 - 2023.10 |
1GDFTV..GDH321..GEN
(J)
|
711370 |
| HILUX (SCB/XTR) | 2022.09 - 2023.10 |
1GDFTV,2GDFTV..GUN125,126,135..AGTP
(L)
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.09 - 2023.10 |
1GDFTV,2GDFTV..GUN125,126,13#..AGTP
(L)
|
6733C0 |
| HILUX (DOUBLE CAB) | 2022.09 - 2023.09 |
1GDFTV..GUN126..IND,MMR
(L)
|
6733C0 |
| HILUX (SCB/XTR) | 2022.09 - 2023.07 |
2GDFTV..GUN125..6FC..GEN;1GDFTV,2GDFTV..GUN125,126,13#..ARL
2GDFTV..GUN120,125,135..GCC,TH
(L)
(J)
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.09 - 2023.07 |
2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL
2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH
2GDFTV..GUN125..LHD..L..GEN
(L)
(J)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
|
6733C0 |
| HILUX (SCB/XTR) | 2022.09 - 2023.05 |
2GDFTV..GUN125..GCC
GCC SPEC EURO4 2022MY,(J)
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.09 - 2023.05 |
2GDFTV..GUN125..6F..(H,L)..GCC
2GDFTV..GUN125..6F..L..GCC;2GDFTV..GUN125..6FC..S..GCC
2GDFTV..GUN125..LHD..S..GEN
2GDFTV..GUN125..6FC..L..GEN
2GDFTV..GUN125..H..GCC
2GDFTV..GUN125..H..GCC;2GDFTV..GUN125..6F..L..GCC
2GDFTV..GUN125..6F..H..GCC
2GDFTV..GUN125..6F..S..GCC;2GDFTV..GUN125..6FC..(L,S)..GCC
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
UAE SPEC,(J)
(J)
EXHAUST EMISSION CONTROL-WITHOUT,(L)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L)
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
JORDAN SPEC,(J)
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
AZERBAIJAN SPEC,(J)
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
ASIA COLD COUNTRY SPEC,(L)
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BO
CAMBODIA SPEC,(J)
GCC SPEC EURO4 2022MY,(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),(L)
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J)
ARD DIAGNOSIS),(L)
|
6733C0 |
| HILUX (SCB/XTR) | 2022.09 - 2022.10 |
2GDFTV..GUN125..RHD..6F..GEN
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.09 - 2022.10 |
2GDFTV..GUN125..RHD..H..GEN
2GDFTV..GUN125..6FC..S..GEN;2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV..GUN126..RHD..6
FC..H..GEN
OCEANIA(EURO 5),(L)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
|
6733C0 |
| GRNVA/HIACE/MJSTY | 2022.09 - |
1GDFTV..GDH300..5D;1GDFTV..GDH321..RHD;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH300..L
HD..SP..GEN;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GD
H322..GSOB..6F..(D,P);1GDFTV..GDH301..LHD..GSOB..6F..D;1GDFTV..GDH300..4D..SP..(AR
L,TH);1GDFTV..GDH322..SG..(ARL,GCC,GEN);1GDFTV..GDH300,301..4D..(PSOB,SG);1GDFTV..
GDH300..RHD..4D..SP..6F..GEN;1GDFTV..GDH303,304,320,328..ARL,GCC,GEN,PH,TH
(J)
|
711370 |
| HILUX (SCB/XTR) | 2022.09 - |
1GDFTV,2GDFTV..GUN122,126..PKN
(L)
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.09 - |
1GDFTV..GUN126..PKN
(L)
|
6733C0 |
Related Parts
| Part Number | Reference |
|---|---|
| 15071-0E010 | COOLER SET, ENGINE OIL |
| 15071-11010 | COOLER SET, ENGINE OIL |
| 15695-22010 | BOLT, OIL COOLER UNION |
| 15710-31010 | COOLER ASSY, OIL |
| 15710-54050 | COOLER ASSY, OIL |
| 15710-75050 | COOLER ASSY, OIL |
| 15726-75010 | BOLT, OIL COOLER UNION |
| 15777-0P020 | HOSE, OIL COOLER |
| 15777-31010 | HOSE, OIL COOLER |
| 15778-0P020 | HOSE, OIL COOLER, NO.2 |
| 15778-31010 | HOSE, OIL COOLER, NO.2 |
| 15785-54010 | GASKET(FOR OIL COOLER) |
Toyota part number 15071-08010 corresponds to COOLER SET, ENGINE OIL. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
