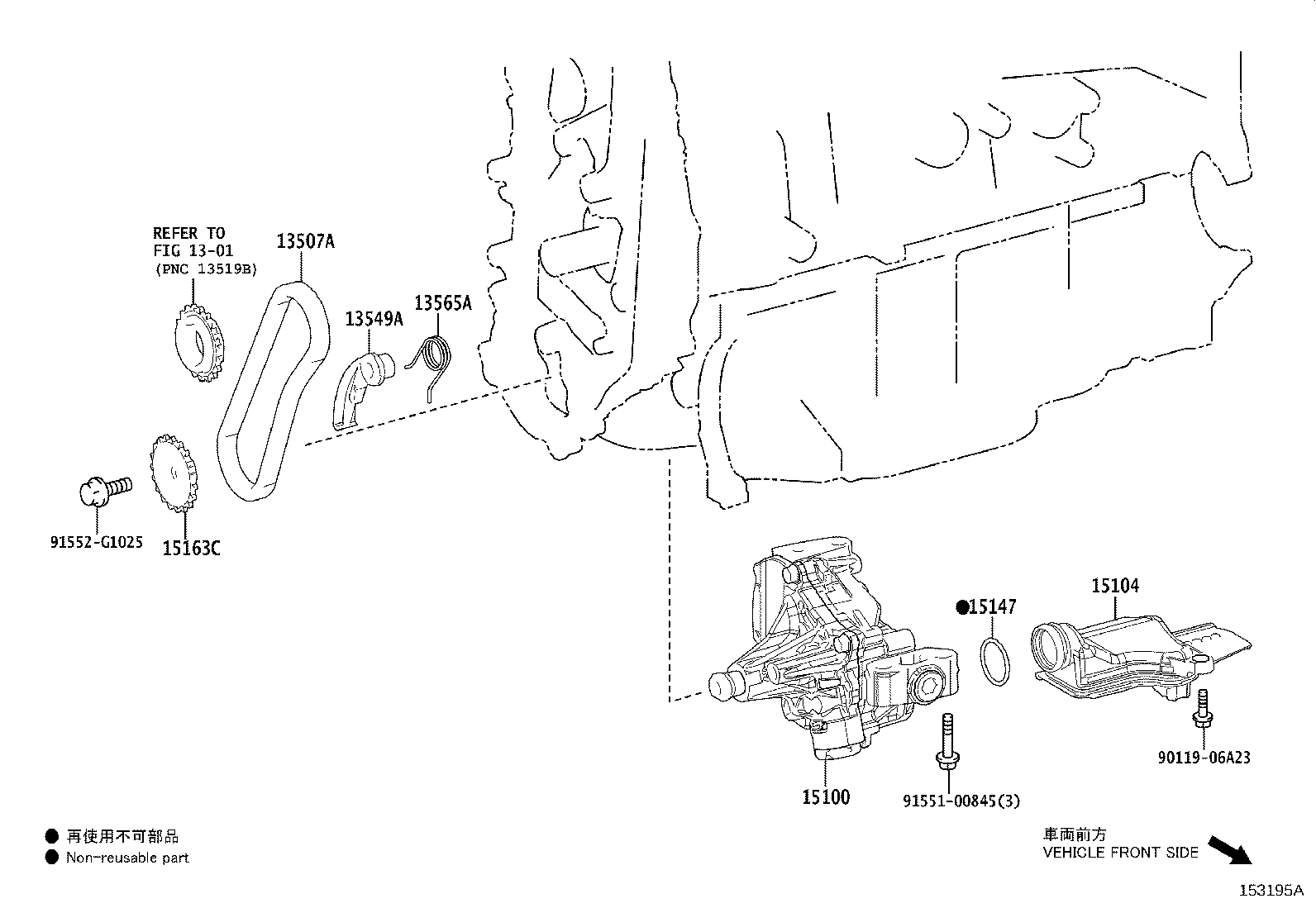

Toyota 13507-24020 CHAIN SUB-ASSY, OIL PUMP DRIVE
13507-24020
Part overview:
OEM reference 13507-24020 for CHAIN SUB-ASSY, OIL PUMP DRIVE.
This page currently lists 28 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 13507A |
| Manufacturer Part Number | 13507-24020 |
| Part Description | CHAIN SUB-ASSY, OIL PUMP DRIVE |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 13507-24020 |
| Catalog | 153260 |
| PNC | 13507A |
| PNC Group | CHAIN SUB-ASSY, OIL PUMP DRIVE |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| COROLLA CROSS | 2024.12 - |
M20AFKS..MXGA1#
*502
|
552410 |
| COROLLA SED (JPP) | 2024.09 - 2025.07 |
M20AFKS..MZEA12..D
|
153260 |
| COROLLA SED (JPP) | 2024.09 - |
M20AFKS..MZEA18;M20AFKS..MZEA12..L
|
153260 |
| COROLLA SED (JPP) | 2024.09 - |
M20AFKS..MZEA1#..L,S,Y
|
153460 |
| LEXUS UX300#/250H | 2024.01 - |
M20AFXS..MZAH11,16
|
537420 |
| RAV4 (JPP) | 2023.10 - |
M20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MX
AA54..JPP..(GCC,GEN,RUS,SA)
|
662250 |
| PRIUS | 2022.12 - |
M20AFXS..MXWH6#
|
222450 |
| COROLLA CROSS | 2022.11 - 2024.12 |
M20AFKS..MXGA1#
*502
|
552410 |
| RAV4 (JPP) | 2022.10 - 2023.10 |
M20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MX
AA54..JPP..(GCC,GEN,RUS,SA)
|
662250 |
| RAV4 (JPP) | 2022.10 - |
M20AFKS..MXAA54..EUR;M20AFKS..MXAA52..G..EUR;M20AFKS..MXAA52..(M,X)..(EUR,SA)
|
662250 |
| COROLLA SED (JPP) | 2022.09 - 2024.09 |
M20AFKS..MZEA12;M20AFKS..MZEA18..LHD
|
153260 |
| COROLLA SED (JPP) | 2022.09 - 2024.09 |
M20AFKS..MZEA1#..L,S,Y
|
153460 |
| COROLLA SED (JPP) | 2022.09 - 2023.07 |
M20AFKS..MZEA18..RHD
|
153260 |
| COROLLA SED (JPP) | 2022.09 - |
M20AFKS..MZEA18..D
|
153460 |
| COROLLA HATCHBACK | 2022.09 - |
M20AFKS..MZEA12
|
165430 |
| LEXUS UX300#/250H | 2022.07 - |
M20AFXS..MZAH10,15
|
537420 |
| RAV4 (JPP) | 2020.08 - 2022.10 |
M20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..
GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS.
.MXAA54..JPP..LHD..6F..(M,X)
|
662250 |
| RAV4 (JPP) | 2020.08 - 2021.11 |
M20AFKS..MXAA54..(G,V)..GCC;M20AFKS..MXAA5#..RHD..6F..(ARL,GEN)
|
662250 |
| COROLLA SED (JPP) | 2020.04 - 2022.08 |
M20AFKS..MZEA12
|
153260 |
| COROLLA SED (JPP) | 2020.04 - 2022.08 |
M20AFKS..MZEA12
|
153460 |
| C-HR | 2019.09 - 2023.04 |
M20AFXS..MAXH10
*132
|
528510 |
| COROLLA SED (JPP) | 2019.09 - 2020.04 |
M20AFKS..MZEA12
|
153260 |
| COROLLA SED (JPP) | 2019.01 - 2020.04 |
M20AFKS..MZEA12
|
153460 |
| RAV4 (JPP) | 2018.11 - 2020.07 |
M20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA5#..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G
;M20AFKS..MXAA54..JPP..(M,V,X);M20AFKS..MXAA52..JPP..6F..(M,X)
|
662250 |
| RAV4 (JPP) | 2018.11 - 2019.09 |
M20AFKS..MXAA5#..6F..G..(GEN,SA)
|
662250 |
| COROLLA HATCHBACK | 2018.10 - 2022.09 |
M20AFKS..MZEA12..CVT
|
165430 |
| LEXUS UX250H/200 | 2018.10 - 2022.07 |
M20#..MZAA10,MZAH1#
|
537410 |
| COROLLA HATCHBACK | 2018.10 - |
M20AFKS..MZEA12..6F
|
165430 |
Related Parts
| Part Number | Reference |
|---|---|
| 13549-25020 | PLATE, CHAIN TENSIONER |
| 13565-25010 | SPRING, CHAIN DAMPER |
| 15012-37060 | COVER SUB-ASSY, OIL PUMP |
| 15012-37070 | COVER SUB-ASSY, OIL PUMP |
| 15100-24020 | PUMP ASSY, OIL |
| 15100-37021 | PUMP ASSY, OIL |
| 15100-37060 | PUMP ASSY, OIL |
| 15100-37070 | PUMP ASSY, OIL |
| 15104-24010 | STRAINER SUB-ASSY, OIL |
| 15131-0A040 | VALVE, OIL PUMP RELIEF |
| 15132-46060 | SPRING, OIL PUMP RELIEF VALVE |
| 15133-28020 | PLUG, OIL PUMP RELIEF VALVE |
Toyota part number 13507-24020 corresponds to CHAIN SUB-ASSY, OIL PUMP DRIVE. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
