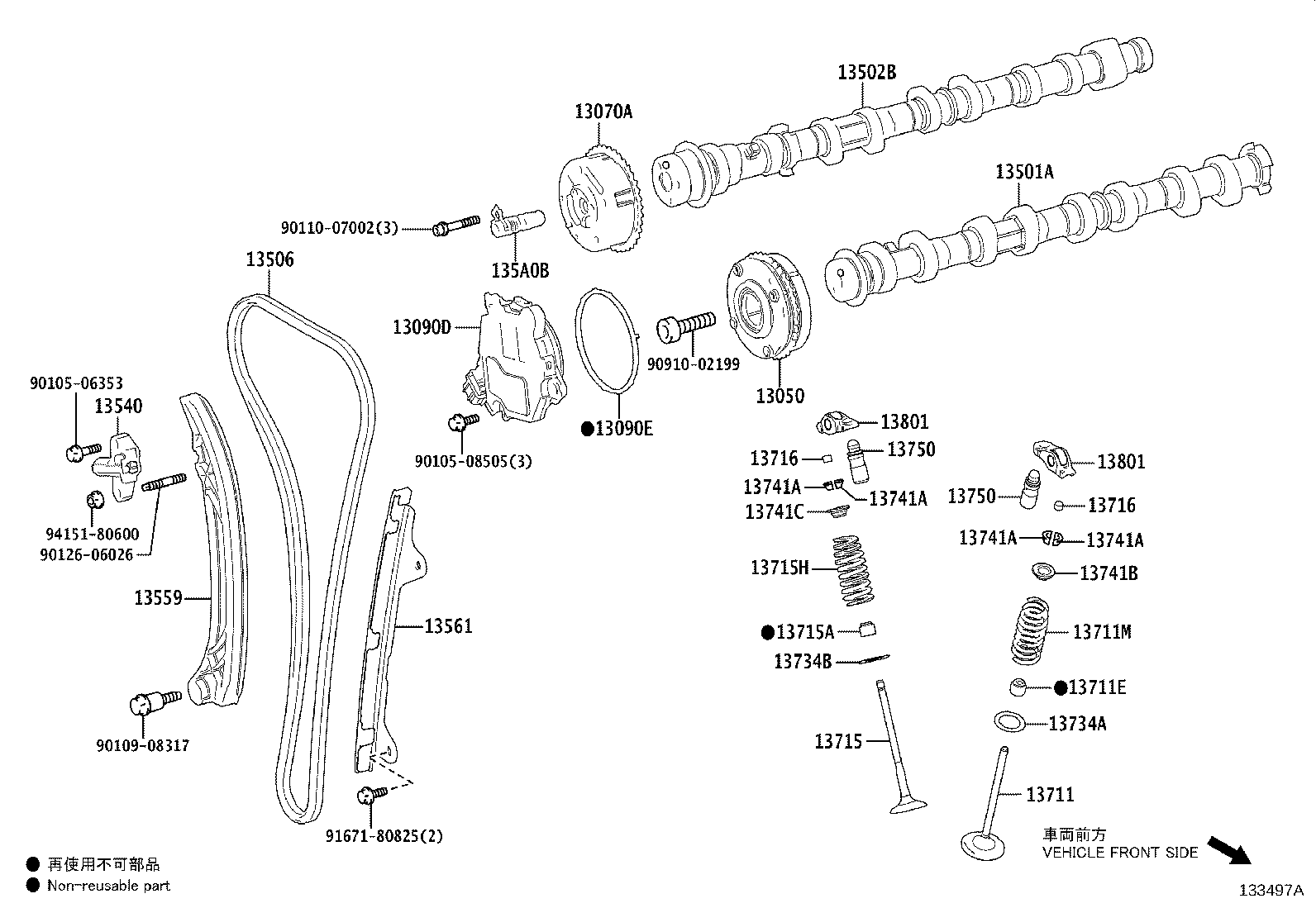

Toyota 13501-24030 CAMSHAFT SUB-ASSY, INTAKE
13501-24030
Part overview:
OEM reference 13501-24030 for CAMSHAFT SUB-ASSY, INTAKE.
This page currently lists 4 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 13501A |
| Manufacturer Part Number | 13501-24030 |
| Part Description | CAMSHAFT SUB-ASSY, INTAKE |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 13501-24030 |
| Catalog | 222450 |
| PNC | 13501A |
| PNC Group | CAMSHAFT SUB-ASSY, INTAKE |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| COROLLA CROSS | 2024.12 - |
M20AFXS..MXGH15
(J)
|
552410 |
| COROLLA CROSS | 2023.05 - 2024.12 |
M20AFXS..MXGH15
(J),*704
|
552410 |
| PRIUS | 2022.12 - |
M20AFXS..MXWH6#
|
222450 |
| C-HR | 2019.09 - 2023.04 |
M20AFXS..MAXH10
*132
|
528510 |
Related Parts
| Part Number | Reference |
|---|---|
| 13050-25010 | GEAR ASSY, CAMSHAFT TIMING |
| 13070-25030 | GEAR ASSY, CAMSHAFT TIMING EXHAUST |
| 13090-25010 | MOTOR ASSY, CAM TIMING CONTROL W/EDU |
| 13502-24020 | CAMSHAFT SUB-ASSY, EXHAUST |
| 13506-24020 | CHAIN SUB-ASSY |
| 13540-25020 | TENSIONER ASSY, CHAIN, NO.1 |
| 13559-24010 | SLIPPER, CHAIN TENSIONER |
| 13561-15010 | DAMPER, CHAIN VIBRATION, NO.1 |
| 135A0-25020 | Toyota Genuine Part |
| 13711-24040 | VALVE, INTAKE |
| 13715-24040 | VALVE, EXHAUST |
| 13716-25010 | CAP, VALVE STEM |
Toyota part number 13501-24030 corresponds to CAMSHAFT SUB-ASSY, INTAKE. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
