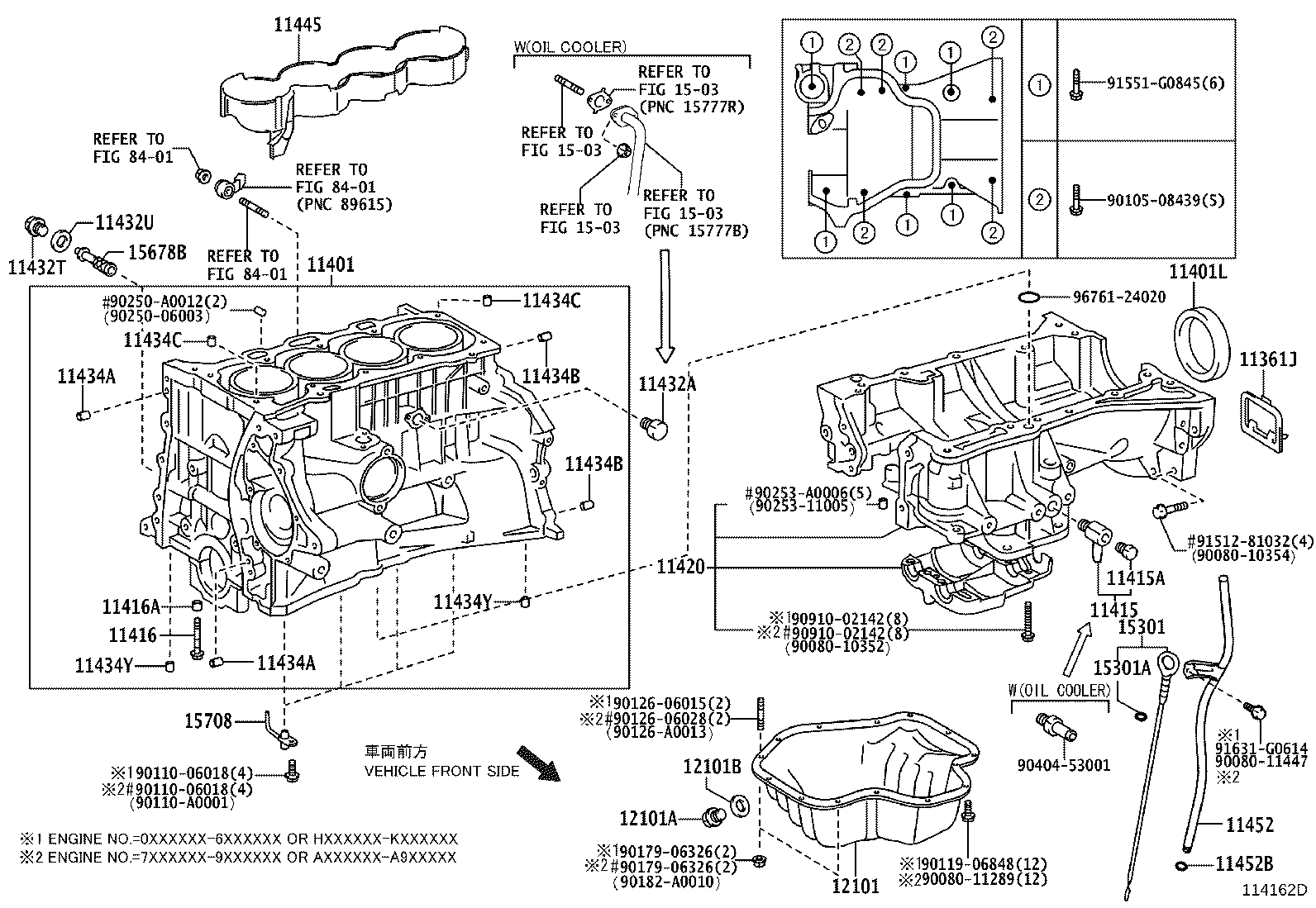

Toyota 12121-0V010 PLATE, OIL PAN BAFFLE, NO.1
12121-0V010
Part overview:
OEM reference 12121-0V010 for PLATE, OIL PAN BAFFLE, NO.1.
This page currently lists 18 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 12121 |
| Manufacturer Part Number | 12121-0V010 |
| Part Description | PLATE, OIL PAN BAFFLE, NO.1 |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 12121-0V010 |
| Catalog | 283480 |
| PNC | 12121 |
| PNC Group | PLATE, OIL PAN BAFFLE, NO.1 |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| HIGHLANDER (NAP) | 2016.11 - |
1ARFE..ASU50
*535
|
526420 |
| RAV4 (NAP) | 2015.11 - 2017.09 |
2ARFE..ASA42..(LIMD,SE)..CND
*364 OR *390
|
665420 |
| RAV4 (NAP) | 2015.11 - |
2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND
*364 OR *390
|
665420 |
| AVALON | 2015.10 - |
2ARFXE..AVX40
*288
|
361440 |
| CAMRY/HYBRID | 2014.09 - |
2AR#..ASV50,AVV50
*212 OR *364
|
283490 |
| CAMRY | 2014.09 - |
2ARFE..ASV50
|
28A410 |
| HIGHLANDER (NAP) | 2013.12 - 2016.11 |
1ARFE..ASU50
|
526420 |
| AVALON | 2013.10 - 2015.10 |
2ARFXE..AVX40
*288
|
361440 |
| CAMRY/HYBRID | 2013.09 - 2014.09 |
2ARFXE..AVV50..LE,XLE
*212 OR *364
|
283490 |
| RAV4 (NAP) | 2013.01 - 2015.11 |
2ARFE..ASA4#
*364 OR *390
|
665420 |
| VENZA | 2012.05 - |
1ARFE..AGV1#
|
286430 |
| CAMRY/HYBRID | 2011.09 - 2014.09 |
2ARFE..ASV50;2ARFXE..AVV50..SE
*212 OR *364
|
283490 |
| CAMRY | 2011.09 - 2014.09 |
2ARFE..ASV50
|
28A410 |
| SIENNA | 2011.09 - 2013.08 |
1ARFE..ASL30
*212
|
622430 |
| VENZA | 2011.09 - 2012.05 |
1ARFE..AGV1#
*212
|
286430 |
| HIGHLANDER (NAP) | 2011.09 - |
1ARFE..ASU40
*212
|
526410 |
| RAV4 (NAP) | 2011.08 - |
2ARFE..ASA3#..NAP
*212
|
665410 |
| CAMRY (NAP) | 2009.03 - 2011.09 |
2ARFE..ASV40..NAP
*212
|
283480 |
Related Parts
| Part Number | Reference |
|---|---|
| 11361-0H020 | COVER, FLYWHEEL HOUSING UNDER |
| 11361-28010 | COVER, FLYWHEEL HOUSING UNDER |
| 11401-09600 | BLOCK SUB-ASSY, CYLINDER |
| 11401-80718 | BLOCK SUB-ASSY, CYLINDER |
| 11401-80774 | BLOCK SUB-ASSY, CYLINDER |
| 11410-09230 | BLOCK SUB-ASSY, CYLINDER |
| 11410-09270 | BLOCK SUB-ASSY, CYLINDER |
| 11410-09395 | BLOCK SUB-ASSY, CYLINDER |
| 11410-29345 | BLOCK SUB-ASSY, CYLINDER |
| 11410-39075 | BLOCK SUB-ASSY, CYLINDER |
| 11420-0H030 | CRANKCASE ASSY, STIFFENING |
| 11420-0H050 | CRANKCASE ASSY, STIFFENING |
Toyota part number 12121-0V010 corresponds to PLATE, OIL PAN BAFFLE, NO.1. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
